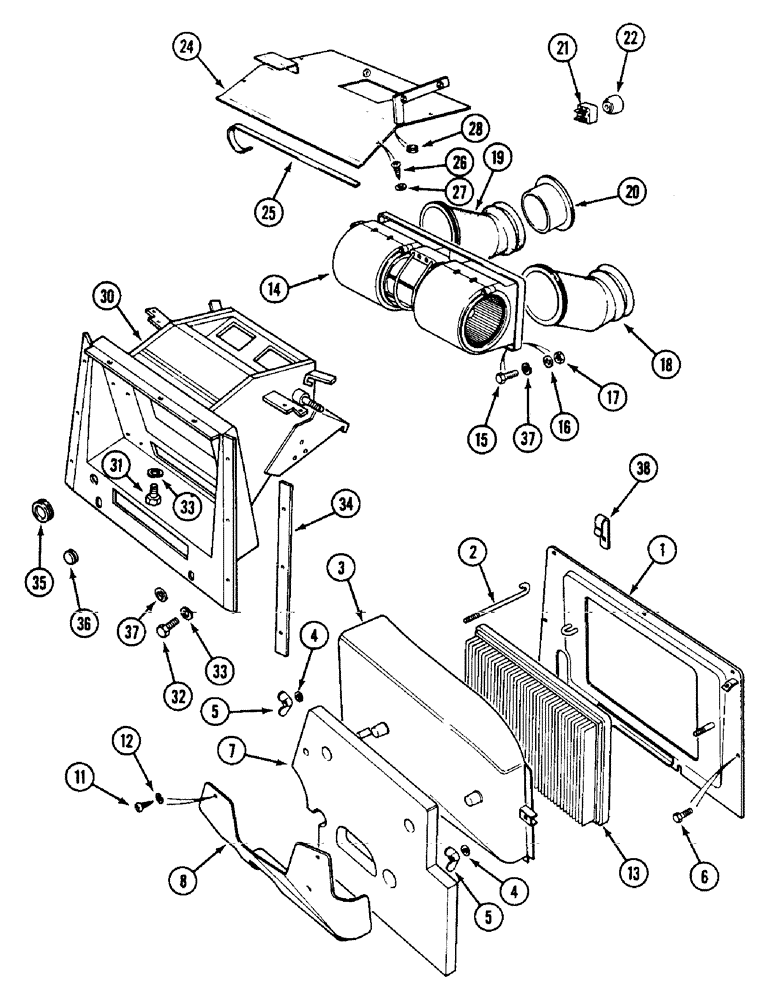

Запчасти Case IH 1594 (9-416) - AIR FILTER AND HEATER FAN (09) - CHASSIS/ATTACHMENTS

1

K307424

GUARD

PLATE - support, filter

1шт.

2

K307547

BOLT

CLAMP - filter

1шт.

3

K307502

BOX

- filter

1шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

5

E44806

NUT

- wing, M6

2шт.

6

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

5шт.

6

K653344

SCREW

- M6 x 16 mm

7шт.

7

K307868

FOAM

SEAL

1шт.

8

K307858

PLATE

- seal retaining

1шт.

11

K656110

SCREW

- self-tapping

4шт.

12

K626310

WASHER

- 3/16 inch (5 mm)

4шт.

13

K303737

CAB FILTER

ELEMENT - filter

1шт.

14

K303739

HEATER

FAN AND MOTOR ASSEMBLY - cab

1шт.

15

K650603

BOLT

SCREW - M4 x 12 mm

7шт.

16

K651775

WASHER

- plain, M4

7шт.

17

K651624

NUT

- M4

7шт.

18

K303555

FITTING

DUCT - air, left-hand

1шт.

19

K303554

FITTING

DUCT - air, right-hand

1шт.

20

K303740

NOZZLE CAP

NOZZLE - air duct

2шт.

21

K303726

BLOWER SWITCH

SWITCH - heater fan

1шт.

22

K303738

KNOB

- heater switch

1шт.

24

K303182

COVER

- bulkhead

1шт.

25

K777030

FOAM

STRIP - sealing, 8 x 15 mm

1шт.

26

K656212

SCREW

- no. 7 x 1/2 inch

5шт.

27

K651775

WASHER

- plain, M4

5шт.

28

K627754

GROMMET

- wire, 14 mm

1шт.

30

K303494

PANEL

BULKHEAD - cab front

1шт.

31

K650816

SCREW,M8 x 1.25 x 1.25mm, Gr 8.8

- M8 x 16 mm

3шт.

32

K650817

SCREW

- M8 x 25 mm

8шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

11шт.

34

K303345

FOAM

STRIP - sealing, 2 750 mm

1шт.

35

K627724

GROMMET

PLUG - rubber, 1-3/16 inch

1шт.

36

K627742

GROMMET

PLUG - rubber, instrument panel

1шт.

37

K651845

WASHER

- lock, M4

7шт.

38

K628378

CLIP

- spring, vent tube

2шт.
