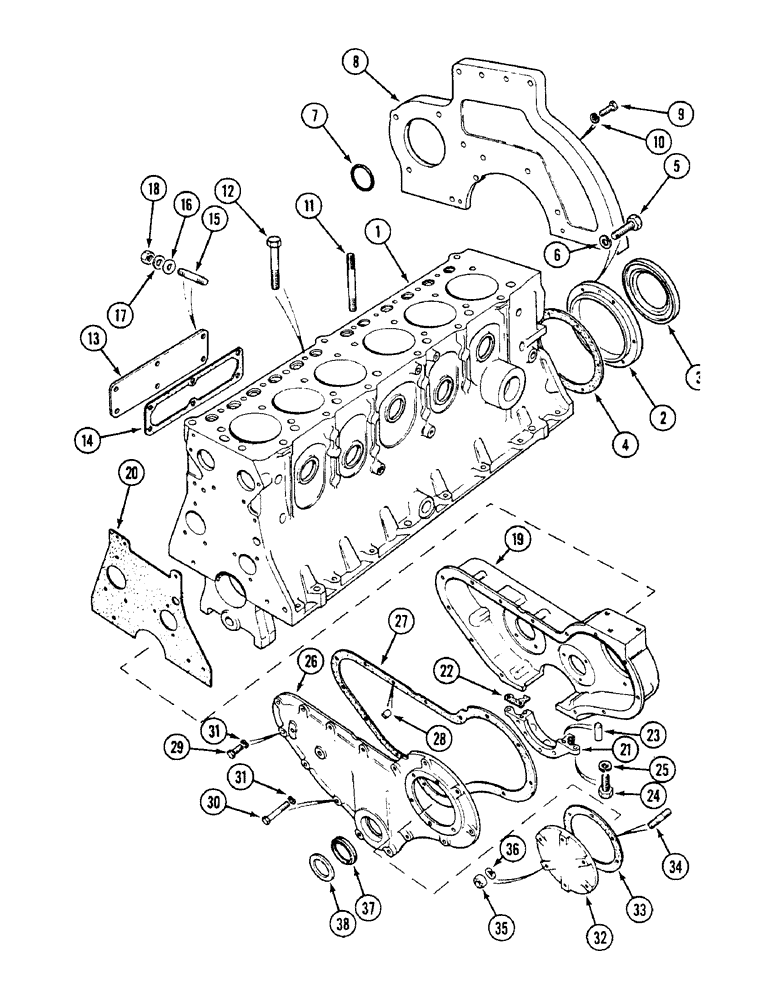

Запчасти Case IH 1594 (2-22) - CYLINDER BLOCK COVERS (02) - ENGINE

1

REF

INSTRUCTION

BLOCK ASSEMBLY - cylinder, See Figure 2-20

1шт.

2

K206503

HOUSING

- oil seal

1шт.

3

K262708

SEAL

- oil, 140 x 115 x 12 mm

1шт.

4

K200569

GASKET

- housing

1шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 UNC x 1-1/4 inch

6шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

7

K262762

O-RING

- 1-13/16 inch ID

1шт.

8

K200329

SUPPORT

PLATE - support, starter

1шт.

9

K602906

SCREW

BOLT - 3/8 UNC x 1-1/4 inch

6шт.

10

492-11038

LOCK WASHER,3/8"

6шт.

11

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC/UNF x 5-5/16 inch

4шт.

11

K906538

STUD

- 1/2 UNC/UNF x 4-7/8 inch

8шт.

12

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 UNC x 4-1/4 inch, grade 8

16шт.

13

K948939

TAPPET

COVER - tappet

2шт.

14

1349387C1

GASKET

- tappet cover

2шт.

15

K608160

STUD

- 5/16 UNC x 1-3/8 inch

12шт.

16

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

12шт.

17

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- sealing, 5/16 inch (8 mm)

12шт.

18

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

12шт.

19

K206358

GEAR

HOUSING - gear

1шт.

20

K917642

GASKET

- gear housing

1шт.

21

K956515

SEAL RETAINER

RETAINER - oil seal

1шт.

22

K920286

SEAL RETAINER

-, Serial Range: retainer-housing

2шт.

23

K621807

PIN

DOWEL - 5/16 x 1/2 inch

2шт.

24

K602806

BOLT

- 5/16 UNC x 1-1/8 inch

2шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

26

K948947

GEAR

COVER - timing gears

1шт.

27

K924731

GASKET,0.79mm Thk

- cover

1шт.

28

K621807

PIN

DOWEL - 5/16 x 1/2 inch

2шт.

29

K602806

BOLT

- 5/16 UNC x 1-1/8 inch

11шт.

30

K600220

BOLT

- 5/16 UNC x 3-3/4 inch

4шт.

31

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

15шт.

32

K924397

COVER

PLATE - inspection

1шт.

33

1349385C1

GASKET

- plate

1шт.

34

K608152

STUD

- 5/16 UNC x 2 inch

6шт.

35

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

6шт.

36

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

37

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

- oil, 2-1/8 x 2-7/8 x 3/8 inch (54 x 73 x 10 mm)

1шт.

38

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

- felt, 2-1/4 x 2-7/8 x 1/8 inch (57 x 73 x 3 mm)

1шт.

K262747

GASKET KIT

GASKET SET - cylinder block

1шт.
