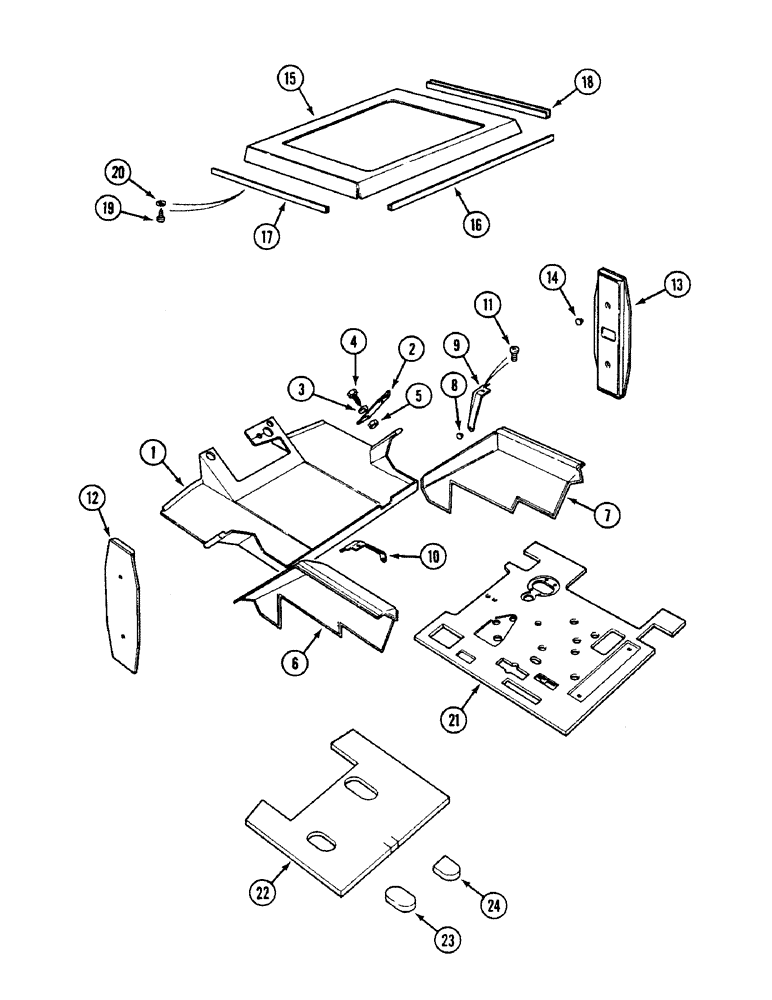

Запчасти Case IH 1594 (9-414) - INTERIOR AND EXTERIOR TRIM (09) - CHASSIS/ATTACHMENTS

1

K307727

MAT

- floor

1шт.

2

K303230

BRACKET

- floor mat

2шт.

3

K651903

WASHER

- special, 6 mm

4шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

4шт.

5

K652106

LOCK NUT

- M6, self-locking, 6

4шт.

6

B503393

FOAM

TRIM - fender, left-hand

1шт.

7

B503394

FOAM

TRIM - fender, right-hand

1шт.

8

K692232

RIVET

FASTENER -, Serial Range: trim-fender

12шт.

9

K307578

PLATE

- fender, left-hand

1шт.

10

K307579

PLATE

- fender, right-hand

1шт.

11

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

4шт.

12

K311527

FOAM

TRIM - door post, left-hand (Replaces K307555)

1шт.

13

K311526

FOAM

TRIM - door post, right-hand (Replaces K307556)

1шт.

14

K692232

RIVET

FASTENER -, Serial Range: trim-fender

4шт.

15

K307552

FOAM

TRIM - roof

1шт.

16

K303333

STRIP

- rear

1шт.

17

K303332

STRIP

- side, left-hand

1шт.

18

K303350

FOAM

STRIP - side, right-hand

1шт.

19

K656212

SCREW

- no. 7 x 1/2 inch

7шт.

20

K651776

WASHER

- 5 mm

7шт.

21

K307584

INSULATOR

TRIM - seat plate

1шт.

22

K307514

FOAM

INSULATION - front

1шт.

23

K307515

FOAM

INSULATION - fuel sender

1шт.

24

K307516

FOAM

INSULATION - power shift

1шт.
