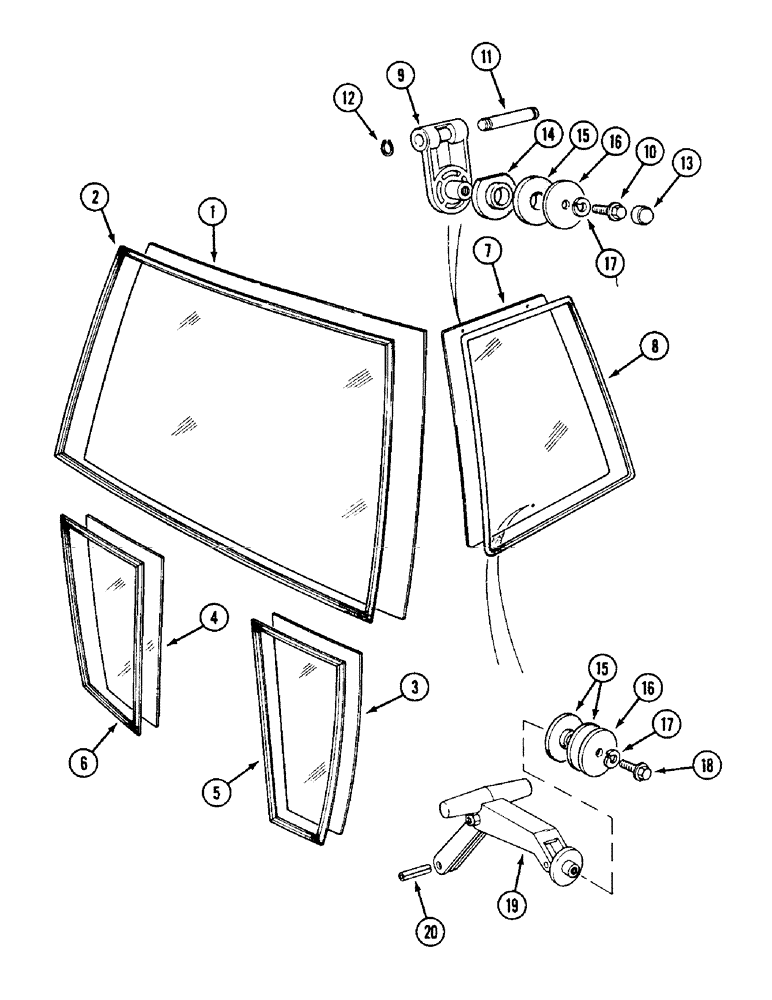

Запчасти Case IH 1594 (9-410) - FRONT AND SIDE WINDOWS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K303699

GLASS

- windshield

1шт.

2

K310092

RUBBER

FRAME - rubber, windshield (Replaces K303636)

1шт.

3

K303689

WINDOW

GLASS - left-hand front window

1шт.

4

K303690

WINDOW

GLASS - right-hand front window

1шт.

5

K311650

SEAL, GLASS

FRAME - rubber, left-hand window (Replaces K303691)

1шт.

6

K311649

SEAL, GLASS

FRAME - rubber, right-hand window (Replaces K303692)

1шт.

7

K303705

GLASS

- left-hand side window

1шт.

7

K303704

GLASS

- right-hand side window

1шт.

8

K303591

SEAL

STRIP - sealing, 2 325 mm

2шт.

9

K303875

HINGE

4шт.

10

K650626

BOLT

- M6 x 14 mm

4шт.

11

1535323C1

PIN,8mm OD x 78.5mm L

- Order also 1535283C1 Snap Ring

4шт.

12

K653509

RING, SNAP

RING - retaining, 8 mm external

8шт.

13

K965671

CAP

8шт.

14

K303928

GROMMET

WASHER - rubber

4шт.

15

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER - rubber

12шт.

16

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

- 6 mm

6шт.

17

K651933

LOCK WASHER

WASHER - lock, M6

6шт.

18

K650626

BOLT

- M6 x 14 mm

2шт.

19

K303804

HANDLE

ASSEMBLY

2шт.

20

K692212

PIN

- spring, 5 x 15 mm

2шт.
