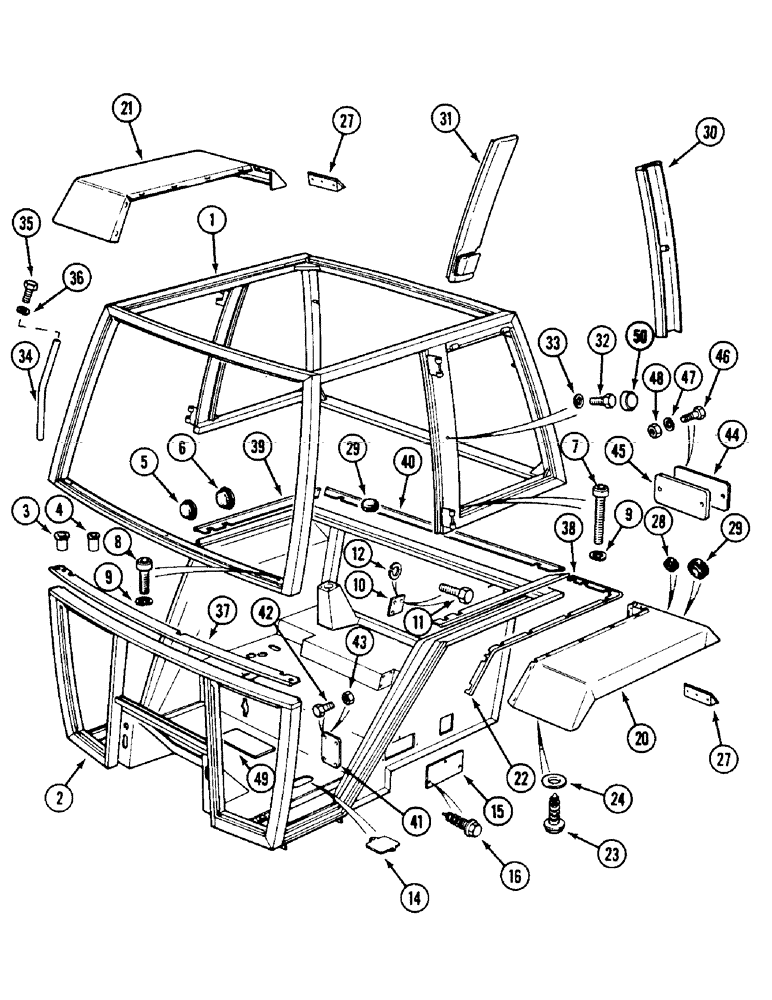

Запчасти Case IH 1594 (9-400) - CAB FRAME AND FENDERS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K303455

CAB

FRAME - upper

1шт.

2

K310972

FRAME

- lower (Replaces K303430)

1шт.

3

K692205

INSERT

- fender, M8

6шт.

4

K692208

INSERT

- M6

8шт.

5

K656767

GROMMET

PLUG - rubber, 16 mm

4шт.

6

K656768

GROMMET

- 18 mm

4шт.

7

K653951

SCREW

BOLT - M12 x 70 mm

2шт.

8

K653948

SCREW,M12 x 1.75 x 40mm

BOLT - M12 x 40 mm

6шт.

9

K651935

WASHER

- lock, 12 mm

8шт.

10

K308012

PLATE

- two-wheel drive tractor (Replaces K303933)

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

14

K303231

PLATE

- fuel sender aperture

1шт.

15

K307654

COVER

PLATE -, Serial Range: access-mountings

2шт.

16

K650628

BOLT

- M6 x 20 mm

6шт.

20

K303315

FENDER

- left-hand

1шт.

21

K303317

FENDER

- right-hand

1шт.

22

K311580

FOAM

STRIP - edging, 3 x 10 mm (Order in meters) (Replaces K303581)

1шт.

23

K650816

SCREW,M8 x 1.25 x 1.25mm, Gr 8.8

- M8 x 16 mm

18шт.

24

K626916

WASHER

- special, 5/16 inch (8 mm) special

18шт.

27

K303612

HOUSING

- rear lamp

2шт.

28

K627743

PLUG

GROMMET - 9 mm, left-hand fender

4шт.

29

K627739

PLUG

- 12 mm

1шт.

30

K303213

COVER

- door post, left-hand

1шт.

31

K303209

COVER

- door post, right hand

1шт.

32

K650631

BOLT

- M6 x 35 mm

2шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

34

K305140

HANDLE

- grab

2шт.

35

K650817

SCREW

- M8 x 25 mm

4шт.

36

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

37

K311580

FOAM

STRIP - edging, 3 x 10 mm, (Order in meters) (Replaces K303581)

1шт.

38

K311580

FOAM

STRIP - edging, 3 x 10 mm, (Order in meters) (Replaces K303581)

1шт.

39

K311580

FOAM

STRIP - edging, 3 x 10 mm, (Order in meters) (Replaces K303581)

1шт.

40

K311580

FOAM

STRIP - edging, 3 x 10 mm, (Order in meters) (Replaces K303581)

1шт.

41

K206874

PLATE

- (Power shift)

1шт.

42

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 UNC x 3/4 inch

4шт.

43

131-39

NUT,1"-14

NUT - thin hex, self-locking, 1-14 inch

4шт.

44

F64902

PLATE

- access (Replaces A167834)

1шт.

45

F64903

SEAL

- access plate (Replaces A167835)

1шт.

46

K652465

SCREW

- M5 x 20 mm

2шт.

47

K651846

WASHER, LOCK

WASHER - lock, 5 mm

2шт.

48

825-1405

NUT,M5, Cl 8

2шт.

49

K307442

COVER

PLATE - floor

1шт.

50

K965671

CAP

-

2шт.
