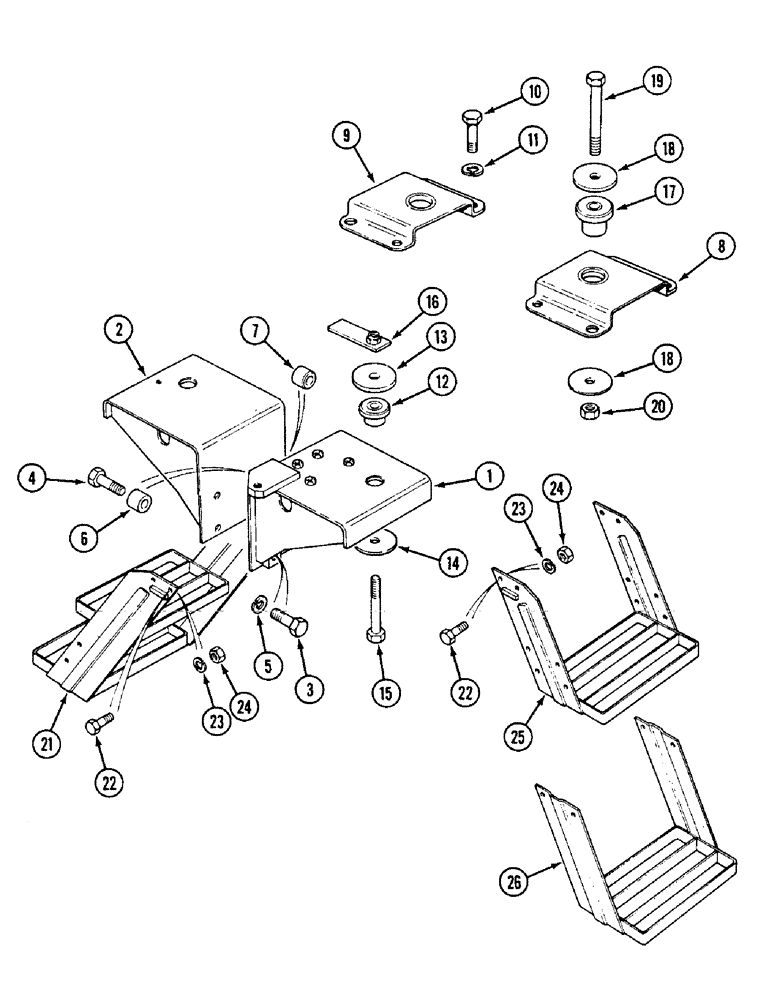

Запчасти Case IH 1594 (9-398) - CAB MOUNTING AND STEPS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K207456

CAB

BRACKET - mounting, left-hand front

1шт.

2

K207458

CAB

BRACKET - mounting, right-hand front

1шт.

3

K603307

SCREW

BOLT - 5/8 x 1-5/8 inch, Order 413-1026

4шт.

4

K603278

SCREW

BOLT - 5/8 UNC x 2 inch

3шт.

4

K603280

SCREW

BOLT - 5/8 UNC x 2-1/4 inch

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

K207340

BUSHING

SPACER - spring anchor

1шт.

7

K655811

BUSHING

SPACER - right-hand bracket

4шт.

8

K207460

BRACKET

- mounting, left-hand rear

1шт.

9

K207462

BRACKET

- mounting, right-hand rear

1шт.

10

K606764

SCREW

BOLT - 5/8 UNC x 2 inch

8шт.

11

K626930

WASHER

- 5/8 inch (16 mm)

8шт.

12

L46821

SHOCK ABSORBER

BUSHING - rubber, front

2шт.

13

K307877

WASHER

- special, upper

1шт.

14

K309879

WASHER

- special, lower (Replaces A169185)

2шт.

15

K600880

BOLT

- 1/2 UNC x 3 inch

2шт.

16

K207515

NUT

- special, 1/2 inch UNC

2шт.

17

A140221

MOUNTING PARTS

BUSHING - rubber, rear

2шт.

18

A141470

WASHER

- special

4шт.

19

K601376

BOLT

- 5/8 UNC x 6 inch, Order 413-1096

2шт.

20

K607306

NUT

- self-locking, 5/8 inch UNC, Order 232-14110

2шт.

21

K310548

STEP

- operator (Not North America)

2шт.

22

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

8шт.

23

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

24

825-1408

NUT,M8, Cl 8

8шт.

25

K307545

STEP

- upper, operator (North America only)

2шт.

26

K308022

STEP

- lower, operator (North America only)

2шт.
