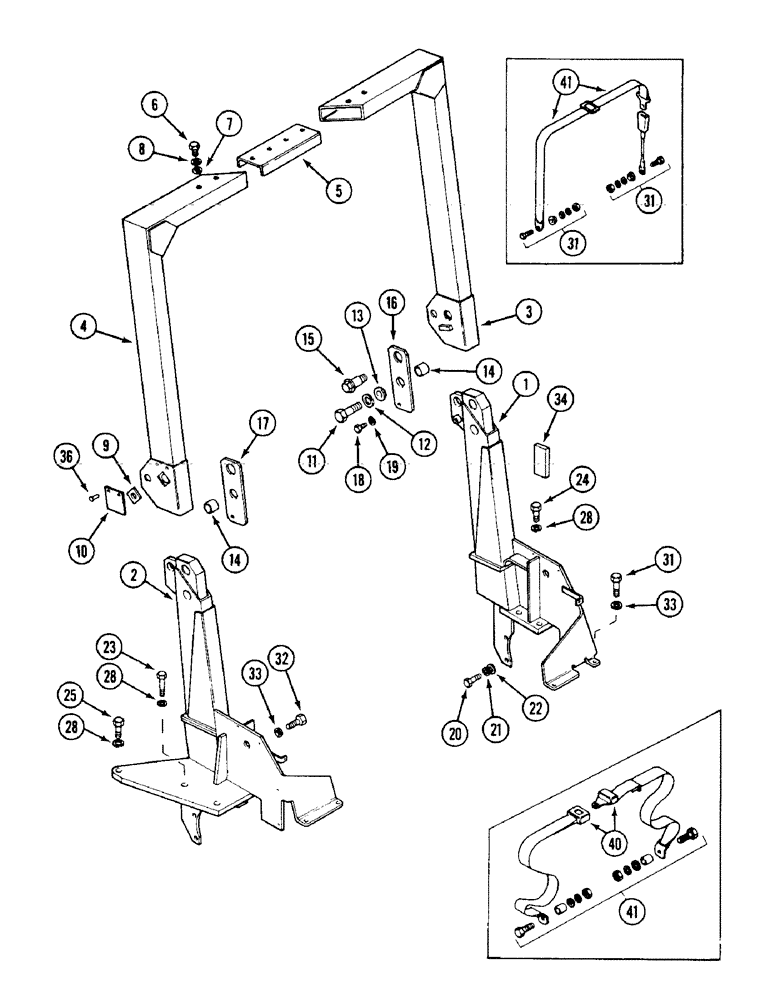

Запчасти Case IH 1594 (9-396) - TWO POST ROLL OVER PROTECTIVE STRUCTURE - FOLDING, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

1

K305261

FRAME

ASSEMBLY - lower left

1шт.

2

K305275

FRAME

ASSEMBLY - lower right

1шт.

3

K305255

FRAME

ASSEMBLY - upper left (Replaces K305205)

1шт.

4

K305257

FRAME

ASSEMBLY - upper right (Replaces K305207)

1шт.

5

K305175

CHANNEL

- left to right, upper frames

1шт.

6

K603141

SCREW

BOLT - 1/2 inch UNC x 1-1/4 inch

4шт.

7

K626686

WASHER

- flat, 1/2 inch (13 mm), Includes: Ref. 9 & 10

4шт.

8

K626345

LOCK WASHER

WASHER - lock, 1/2 inch, Includes: Ref. 9 & 10

4шт.

9

K305170

NUT

- special, 1 inch UNF

2шт.

10

K305209

PLATE

- nut retainer

2шт.

11

413-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

- hex, 1 NC x 3-1/4 inch

2шт.

12

492-11100

LOCK WASHER,1"

1"

2шт.

13

K305218

BUSHING

COLLAR - special

2шт.

14

K305221

BUSHING

SPACER - lower frame assembly

2шт.

15

K305178

BOLT

- special locking

2шт.

16

K305219

PLATE

- stop, left-hand

1шт.

17

K305220

PLATE

- stop, right-hand

1шт.

18

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

20

K608826

BOLT

- 1/2 UNC x 2-1/2 inch, 1/2 UNC x 2-1/2 inch

4шт.

21

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

22

K626686

WASHER

- flat, 1/2 inch (13 mm)

4шт.

23

K601356

BOLT

- 5/8 UNC x 2 inch

4шт.

24

K601356

BOLT

- 5/8 UNC x 2 inch

4шт.

25

K601356

BOLT

- 5/8 UNC x 2 inch

2шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (To platform)

4шт.

32

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm (To fenders)

12шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

34

K311297

SPACER

- rubber, Serial Range: frame-fender

2шт.

36

K11597

SCREW - special

2шт.

40

REF

INSTRUCTION

BELT - seat, safety, 2 inch wide, See Figure 9-351

1шт.

41

REF

INSTRUCTION

BELT - seat, safety, 2 inch wide, See Figure 9-351

1шт.

A185862

ROOF

CANOPY ASSEMBLY - (Not illustrated), Includes: canopy and brackets

1шт.

A187055

ROOF

CANOPY - Top, R.O.P.S.

1шт.

A187056

BRACKET

- right hand

1шт.

A187057

BRACKET

- left hand

1шт.
