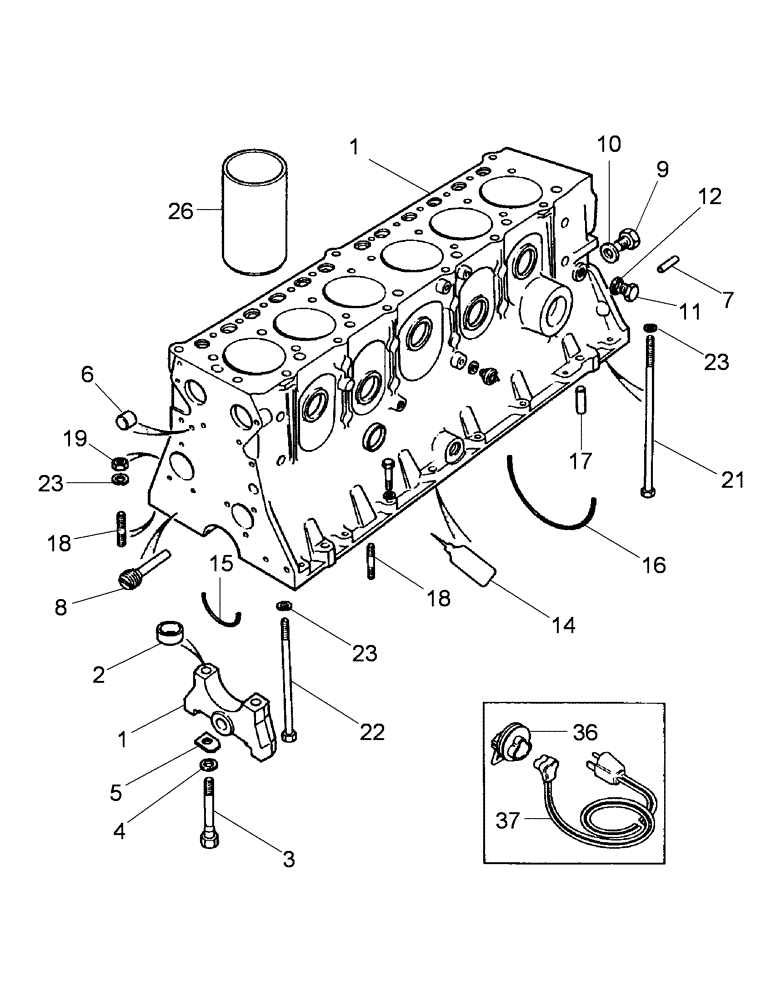

Запчасти Case IH 1594 (2-20) - CYLINDER BLOCK ASSEMBLY (02) - ENGINE

K965719

ENGINE

CYLINDER BLOCK - short, with crankshaft and pistons, Order K262246, Includes: Ref. 1 - 13, crankshaft, dowel, bolt, seal, housing, gasket, bolt, washer, rod assembly, and piston assembly

1шт.

1

K261060

BASIC BLOCK

CYLINDER BLOCK - stripped, with bearing caps, Includes: Ref. 2 - 13

1шт.

2

K917318

RING

- dowel, 3/4 x 7/16 inch (19 x 11 mm)

14шт.

3

K917317

BOLT

- 5/8 UNF x 4 inch

14шт.

4

K929557

WASHER

WASHER - flat, 5/8 inch (16 mm)

14шт.

5

K917376

WASHER

- tab, intermediate caps

5шт.

5

K12994

BEARING WASHER

WASHER - tab

2шт.

5

K200568

PLATE, LOCKING

WASHER - tab, rear cap

1шт.

6

K621807

PIN

DOWEL - 5/16 x 1/2 inch

2шт.

7

K12258

PIN

DOWEL - 5/16 x 3/4 inch

2шт.

8

K916564

JET

- oil

1шт.

9

K609440

PLUG

- 5/8 inch UNC

1шт.

10

K619506

WASHER

- copper, 5/8 inch (16 mm)

1шт.

11

K19581

PLUG

- drain, 1/4 inch BSP

1шт.

12

K19501

WASHER

WASHER - sealing

1шт.

13

41-1628

PLUG,Cup, 1 3/4", Stainless

- core, 1-3/4 inch diameter

9шт.

K914788

CRANKSHAFT

- engine, See Figure 2-24

1шт.

K200179

PIN

DOWEL - 1/2 x 1-3/8 inch (13 x 35 mm)

4шт.

K610804

BOLT

- 1/2 inch UNF, Order 414-828

4шт.

K262708

SEAL

- oil, 140 x 115 x 12 mm

1шт.

K206503

HOUSING

- oil seal

1шт.

K200569

GASKET

- housing

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 UNC x 1-1/4 inch

6шт.

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, Order 492-11031

6шт.

K80043

ROD, CONNECTING

ROD ASSEMBLY - connecting

6шт.

K206954

PISTON RING SET

PISTON ASSEMBLY - engine

6шт.

14

B17555

LOCTITE

SEALANT - Gasket Eliminator No. 515, 50 ml tube

1шт.

15

K201938

SEAL

- 1/4 x 7-5/8 inch (6 x 194 mm)

1шт.

16

K201866

RUBBER SEAL

- 1/4 x 11-3/4 inch (6 x 298 mm)

2шт.

17

K622903

PIN

DOWEL - 7/16 x 1-3/8 inch

2шт.

18

K608243

STUD

- 3/8 UNC x 2-1/2 inch

2шт.

19

280136

NUT,3/8"-16, G8

Order 425-106 3/8"-16, G8

2шт.

20

K600406

BOLT

- special, 3/8 UNC x 1-3/4 inch, Order 413-628

14шт.

21

K600527

BOLT

- 3/8 UNC x 11-1/2 inch

2шт.

22

15-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

BOLT - 3/8 UNC x 9-1/2 inch

2шт.

23

492-11038

LOCK WASHER,3/8"

20шт.

24

K311686

SWITCH, PRESSURE

SWITCH - oil pressure (AC-Delco 7954181) (Replaces K903851)

1шт.

25

K626521

SEALING WASHER

WASHER - sealing, 3/8 inch (10 mm)

1шт.

26

K964857

LINER, ENGINE CYLIND

CYLINDER LINER - engine cylinder

1шт.

K262747

GASKET KIT

GASKET SET - cylinder block

1шт.

36

121568A1

RESISTOR

HEATER ASSEMBLY - cylinder block (400 watts)

1шт.

37

A48264

CABLE

CORD - heater, cylinder block

1шт.
