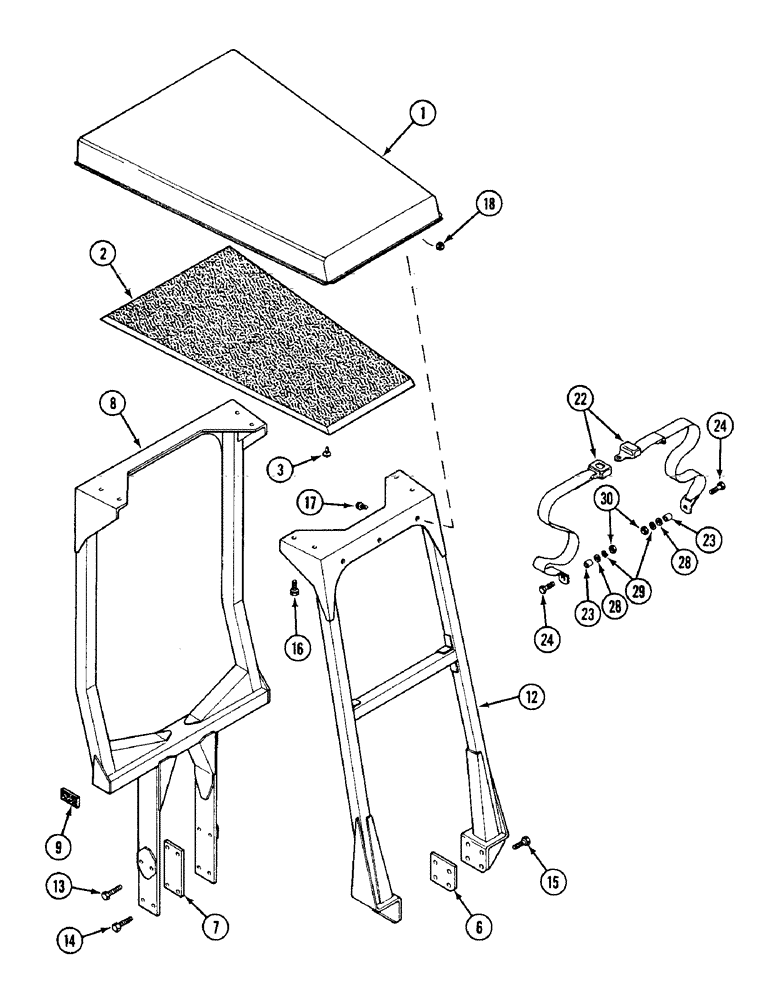

Запчасти Case IH 1594 (9-394) - FOUR POST ROLL OVER PROTECTIVE STRUCTURE, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

A176149

FRAME

ROPS ASSEMBLY - four post, Includes: Ref. 1 - 24

1шт.

1

A177150

TOP

CANOPY ASSEMBLY - roll over, Includes: Ref. 2 & 3 and decal

1шт.

2

A177151

FOAM

- acoustic

1шт.

3

A177152

CAP

- insulation

8шт.

A169246

DECAL

- caution, seat belt (Not shown)

1шт.

6

A177148

SPACER

ASSEMBLY - front mount

2шт.

7

A177158

KIT

SPACER KIT - retro fit (Not used this application)

1шт.

8

A177154

FRAME

ASSEMBLY - roll over, rear, Includes: Ref. 9

1шт.

9

A177155

PAD, RUBBER

PAD - bumper, rubber

2шт.

12

A177149

FRAME

ASSEMBLY - roll over, front

1шт.

13

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

14

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

4шт.

15

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 5

8шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

18

131-822

NUT,3/8"-16

NUT - hex. lock, 3/8 inch NC

6шт.

22

A160404

SAFETY BELT

BELT - seat, safety

1шт.

23

A60907

BUSHING

SPACER - anchor bolt

2шт.

24

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

28

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

29

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

30

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

A177153

DECAL

- Caution, Seat belt (Not illustrated)

1шт.
