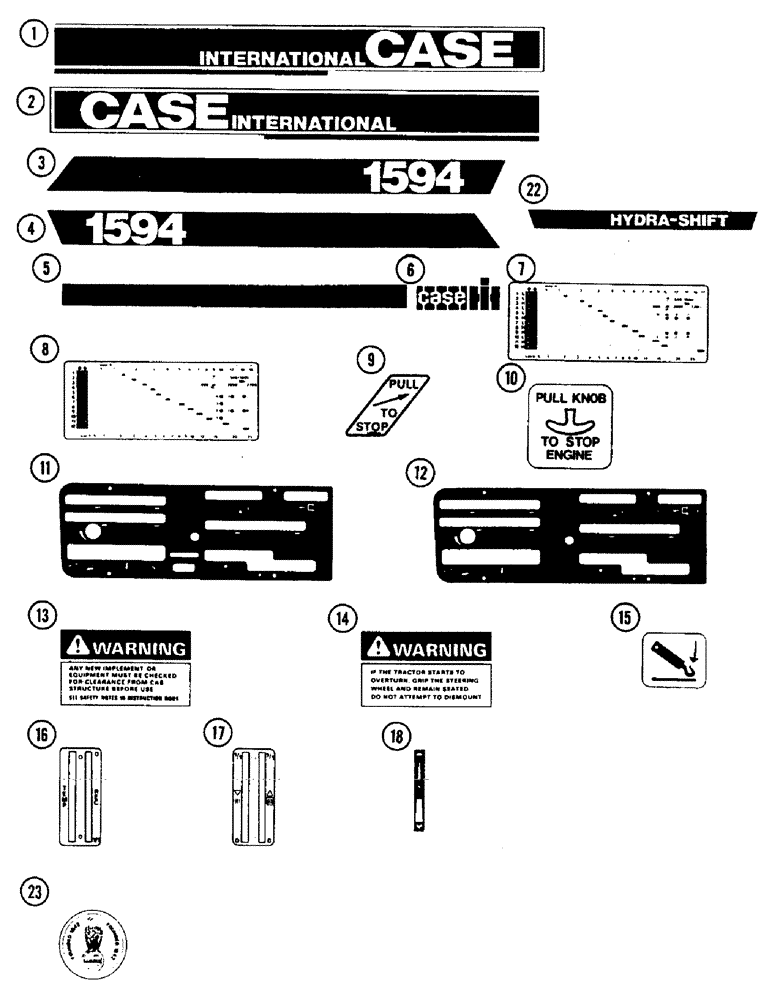

Запчасти Case IH 1594 (9-392) - DECALS, TRACTORS WITH CAB, P.I.N. 11526001 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

K311410

DECAL

- waistrail, right-hand

1шт.

2

K311411

DECAL

- waistrail, left-hand

1шт.

3

K311416

DECAL

- fender, right-hand

1шт.

4

K311417

DECAL

- drive

1шт.

5

K307628

DECAL

- hood nose

1шт.

6

A181538

EMBLEM CASE/IH

DECAL - CASE IH mark, cab pillar

2шт.

7

K307620

DECAL

- travel speed chart (Synchromesh) 11/58 final drives

1шт.

7

K307618

DECAL

- travel speed chart (Synchromesh) 9/59 final drives

1шт.

8

K307624

DECAL

- travel speed chart (Power shift) 11/58 final drives

1шт.

8

K307622

DECAL

- travel speed chart (Power shift) 9/59 final drives

1шт.

9

K300895

DECAL

- engine stop control (Not North America)

1шт.

10

K307961

DECAL

- engine stop control (North America only)

1шт.

11

K307904

DECAL

- operators console (Not North America)

1шт.

12

K307905

DECAL

- operators console (North America only)

1шт.

13

K952971

DECAL

- implement warning

2шт.

15

K308067

DECAL

- pick-up hitch control (Not North America)

1шт.

16

K303586

DECAL

- heater control, left-hand

1шт.

17

K303585

DECAL

- heater control, right-hand

1шт.

18

K205612

DECAL

- engine speed control

1шт.

22

K311428

DECAL

- hydra-shift, left-hand

1шт.

22

K311427

DECAL

- hydra-shift, right-hand

1шт.

23

A180055

CAP ASSY.

INSERT - Case Globe and Eagle

1шт.

K656231

SCREW

- No. 4 self-tapping, for heater control decal

4шт.
