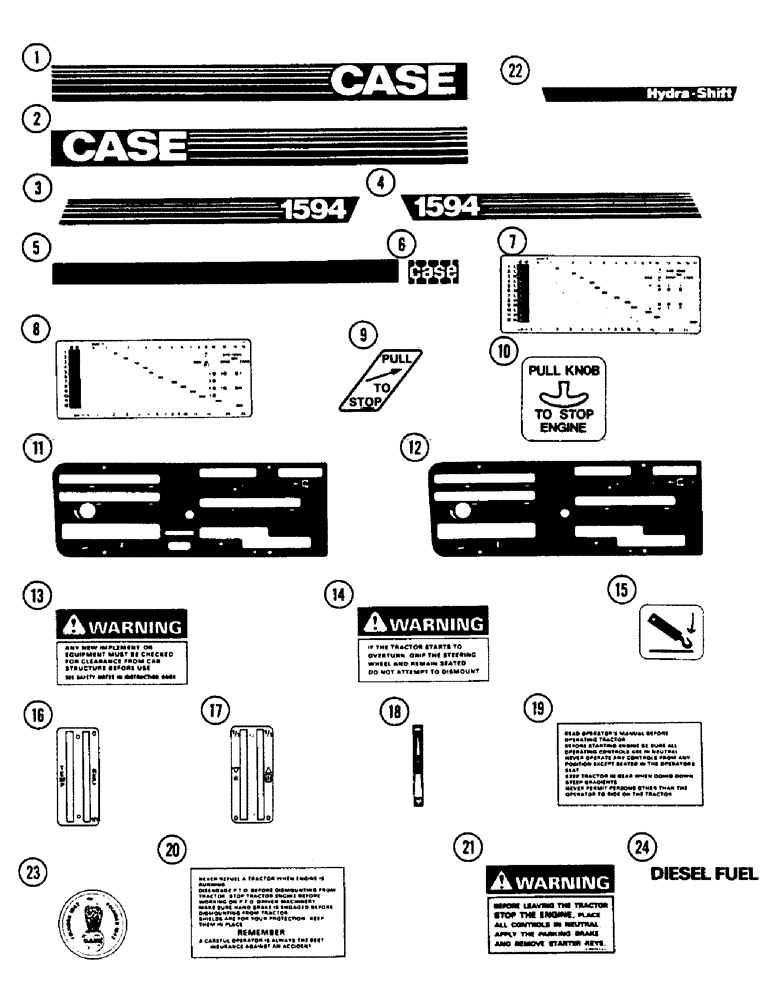

Запчасти Case IH 1594 (9-390) - DECALS, TRACTORS WITH CAB, PRIOR TO P.I.N. 11526001 (09) - CHASSIS/ATTACHMENTS

1

K307780

DECAL

- waistrail, right-hand

1шт.

2

K307781

DECAL

- waistrail, left-hand

1шт.

3

K307770

DECAL

- fender, right-hand

1шт.

4

K307771

DECAL

- fender, left-hand

1шт.

5

K307628

DECAL

- hood nose

1шт.

6

321-5040

EMBLEM

DECAL - Case mark

2шт.

7

K307620

DECAL

- travel speed chart (Synchromesh) 11/58 final drives

1шт.

7

K307618

DECAL

- travel speed chart (Synchromesh) 9/59 final drives

1шт.

8

K307624

DECAL

- travel speed chart (Power shift) 11/58 final drives

1шт.

8

K307622

DECAL

- travel speed chart (Power shift) 9/59 final drives

1шт.

9

K300895

DECAL

- engine stop control (Not North America)

1шт.

10

K307961

DECAL

- engine stop control (North America only)

1шт.

11

K307904

DECAL

- operators console (Not North America)

1шт.

12

K307905

DECAL

- operators console (North America only)

1шт.

13

K952971

DECAL

- implement warning (Not North America)

2шт.

14

K953599

PRODUCT GRAPHIC

DECAL - roll-over warning

1шт.

15

K308067

DECAL

- pick-up hitch control (Not North America)

1шт.

16

K303586

DECAL

- heater control, left-hand

1шт.

17

K303585

DECAL

- heater control, right-hand

1шт.

18

K205612

DECAL

- engine speed control

1шт.

19

K952685

DECAL

- operator warning

1шт.

20

K952686

DECAL

- operator warning

1шт.

21

K306783

DECAL

- operator warning

1шт.

22

K304161

DECAL

- hydra-shift, left-hand

1шт.

22

K304162

DECAL

- hydra-shift, right-hand

1шт.

23

A180055

CAP ASSY.

INSERT - Case Globe and Eagle

1шт.

K656231

SCREW

- No. 4 self-tapping, for heater control decal

4шт.

24

K309302

DECAL

- diesel fuel

1шт.
