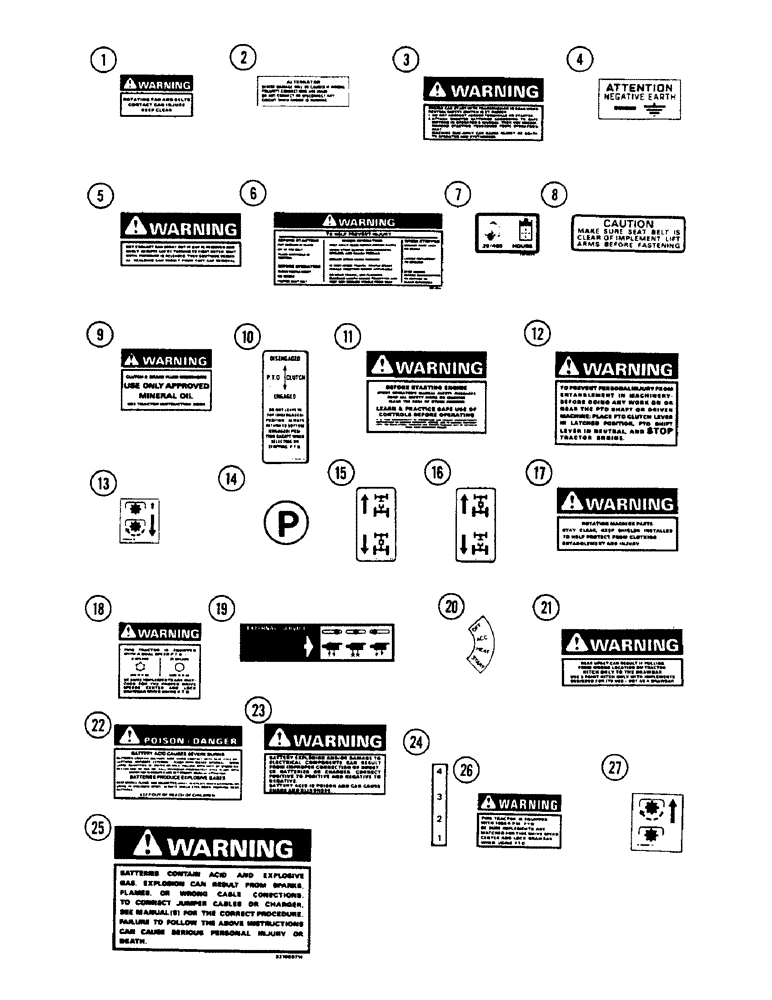

Запчасти Case IH 1594 (9-384) - DECALS - WARNINGS AND INSTRUCTIONS (09) - CHASSIS/ATTACHMENTS

1

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

2

K947548

DECAL

- alternator

1шт.

3

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

4

K917425

PRODUCT GRAPHIC

DECAL - negative earth

1шт.

5

321-6672

DECAL

- Warning, check and service cooling system

1шт.

6

321-6641

DECAL

- operator warning

1шт.

7

K307366

DECAL

- pressure line filter

1шт.

8

K945069

DECAL

- seat belt

1шт.

9

K203756

DECAL

- brake and clutch fluid

1шт.

10

321-6370

DECAL

- instruction, PTO clutch

1шт.

11

321-3705

DECAL

- warning, safety

1шт.

12

321-6368

DECAL

- warning, PTO clutch lever

1шт.

13

K948343

DECAL

- selector lever, single-speed PTO

1шт.

14

K308623

DECAL

- parking brake

1шт.

15

K302305

DECAL

- MFD control (Power shift without cab) (Synchromesh with cab)

1шт.

16

K302304

DECAL

- MFD control (Synchromesh without cab) (Power shift with cab)

1шт.

17

321-6715

DECAL

- warning, rotating machinery

1шт.

18

321-3901

DECAL

- dual speed PTO

1шт.

19

K952540

DECAL

- remote valves

1шт.

20

K953665

DECAL

- ignition switch

1шт.

21

321-3845

DECAL

- warning, hitch

1шт.

22

K952727

PRODUCT GRAPHIC

DECAL - battery warning

1шт.

23

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

24

K207756

DECAL

- power shift lever

1шт.

25

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

26

K953883

DECAL

- warning, 1000 RPM PTO speed (Not North America)

1шт.

27

K952561

DECAL

- PTO lever, single-speed

1шт.

A177153

DECAL

- Caution, Seat belt (Not illustrated)

1шт.
