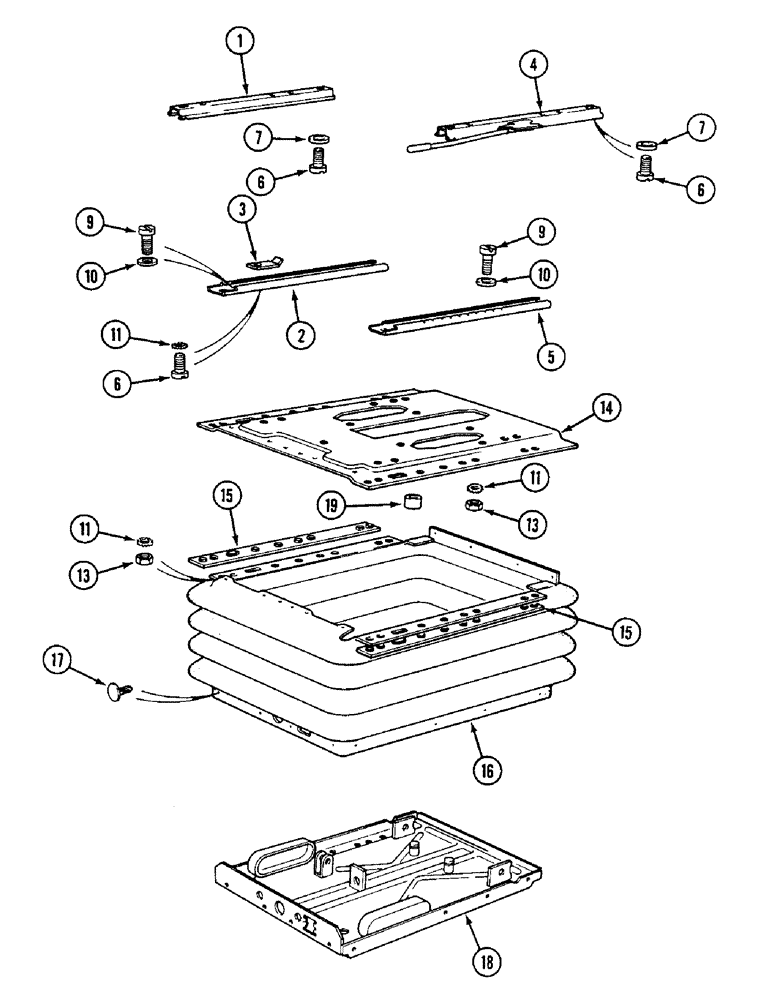

Запчасти Case IH 1594 (9-380) - SEAT RUNNERS AND BASE, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

K306762

FRAME

SUSPENSION ASSEMBLY - seat, See Figure 9-382, Includes: Ref. 1 - 7

1шт.

1

K261690

SEAT

RUNNER - left-hand, upper

1шт.

2

K261691

RAIL

RUNNER - left-hand, lower

1шт.

3

K261694

STOP

BRACKET - stop

1шт.

4

K261692

RAIL

RUNNER - upper, left-hand

1шт.

5

K261693

RAIL

RUNNER - lower, left-hand

1шт.

6

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

BOLT - M8 x 16 mm

5шт.

7

3402560R1

WASHER,M8.4

SPACER - seat runner

4шт.

9

K262104

SCREW

BOLT - M8 x 20 mm

5шт.

10

3402565R1

WASHER

-

2шт.

11

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - flat

6шт.

13

K262106

NUT

- M8

5шт.

14

K262115

PLATE

- top

1шт.

15

K262114

STRIP

- clamping

2шт.

16

K262113

COVER

- suspension

1шт.

17

K964645

RIVET

- plastic

21шт.

18

K262121

PLATE

- base

1шт.

19

K262116

DAMPER

STOP - rubber, top plate

2шт.
