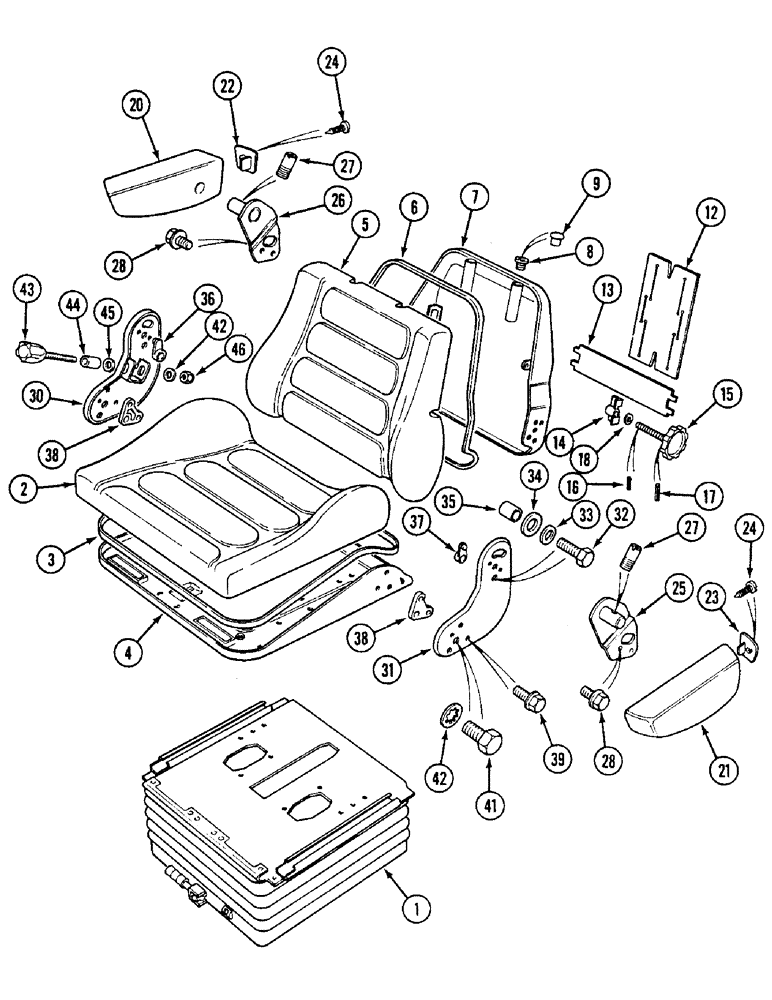

Запчасти Case IH 1594 (9-378) - SEAT ASSEMBLY - K307643, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

K307643

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 46

1шт.

1

K306762

FRAME

SUSPENSION ASSEMBLY - seat, See Figures 9-380 and 9-382

1шт.

REF

INSTRUCTION

SEAT ASSEMBLY - tractor, Includes: Ref. 2 - 46

1шт.

2

K262102

CUSHION

- seat, cloth covered

1шт.

3

K262101

BEAD

ING - cushion

1шт.

4

K262100

PAN

FRAME - cushion

1шт.

5

K262103

CUSHION

BACKREST - cloth covered

1шт.

6

K262099

STRIP

BEADING - backrest

1шт.

7

B502912

FRAME

- backrest

1шт.

8

3230246R1

BUSHING

- headrest

2шт.

9

K260630

PLUG

- plastic

2шт.

12

K261682

PLATE

- lumbar spring

1шт.

13

3234506R1

PLATE

SPRING - lumbar adjustment

1шт.

14

3234512R1

ANGLE

BRACKET - adjusting screw

1шт.

15

K261685

KNOB

ASSEMBLY - lumbar adjustment

1шт.

16

30787R1

LOCK PIN,M3 x 12, Slotted

PIN - 3 x 12 mm

1шт.

17

K261684

PIN,2.9mm OD x 20mm L

- 3 x 20 mm

1шт.

18

K626686

WASHER

- flat, 1/2 inch (13 mm)

1шт.

20

B502596

ARMREST

- right-hand

1шт.

21

B502604

ARMREST

- left-hand

1шт.

22

3402912R1

PLATE

- retaining, right-hand

1шт.

23

3402911R1

PLATE

- retaining, left-hand

1шт.

24

K261661

SCREW

- M8 x 16 mm

2шт.

25

K262094

BRACKET

PLATE - support, left-hand armrest

1шт.

26

K262095

BRACKET

PLATE - support, right-hand armrest

1шт.

27

3402563R1

SCREW,Headless, M10 x 25, 8.8, Slotted

PIN - 10 x 25 mm

1шт.

28

60-3250T1

PLATE ASSY.

PLATE - seat pan mounting

4шт.

30

K262096

BRACKET

- backrest support, right-hand

1шт.

31

K262097

BRACKET

- backrest support, left-hand

1шт.

32

3402571R1

BOLT

- M8 x 30 mm

4шт.

33

3402565R1

WASHER

- 8 mm

4шт.

34

K261673

WASHER

- 8 mm

4шт.

35

K261674

TUBE

SPACER - armrest

4шт.

36

K261675

BUSHING

SPACER - right-hand

1шт.

37

K261676

BUSHING

SPACER - left-hand

1шт.

38

K261670

PLATE

- seat frame

2шт.

39

3230247R1

SCREW

BOLT - M8 x 20 mm

4шт.

41

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

BOLT - hex, 7/16 UNF x 1 inch

2шт.

42

K261668

WASHER

- 8 mm

6шт.

43

K261663

ADJUSTER

KNOB ASSEMBLY - backrest adjustment

1шт.

44

K261664

BUSHING

SPACER - knob assembly

1шт.

45

3402570R1

WASHER

- 10.5 mm

2шт.

46

K261679

WASHER

NUT - M10

1шт.
