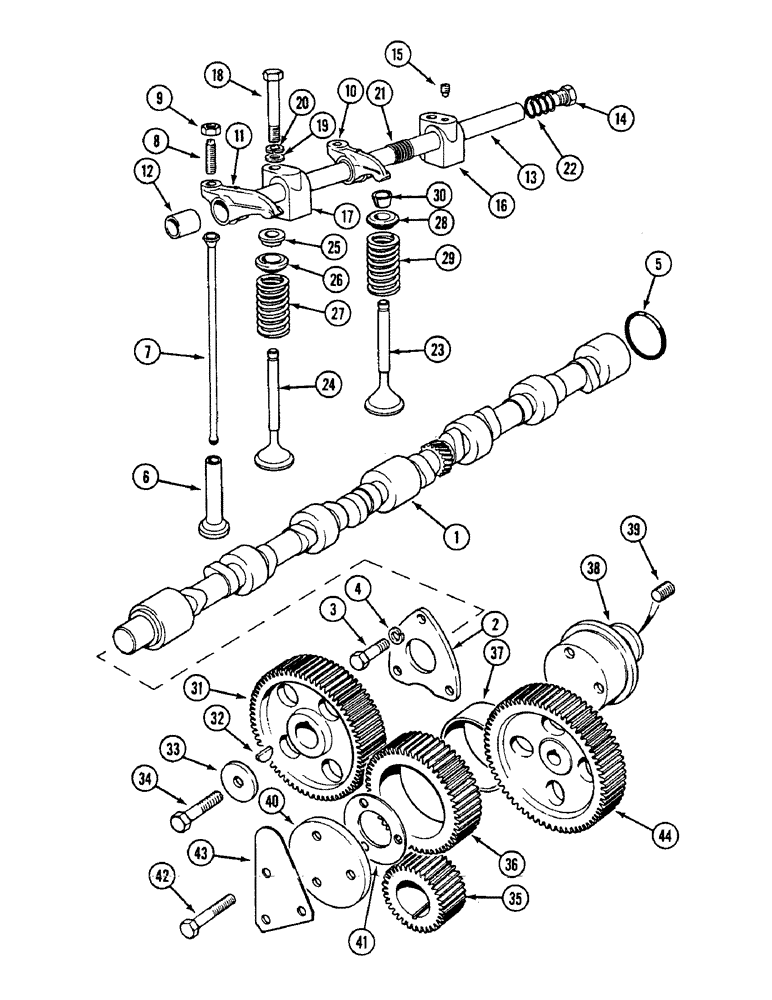

Запчасти Case IH 1594 (2-18) - VALVE MECHANISM AND TIMING GEARS (02) - ENGINE

1

K957412

CAMSHAFT

- engine

1шт.

2

K917037

PLATE

- locating

1шт.

3

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 UNC x 1-1/4 inch

3шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

5

K262762

O-RING

- 1-13/16 inch ID

1шт.

6

K901137

TAPPET

- valve

12шт.

7

K917902

ROD

- push

12шт.

8

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- adjusting, 3/8 inch UNC

12шт.

9

87016560

JAM NUT,Jam, 3/8"-16, G5

- lock, 3/8 inch UNC

12шт.

10

K63089

ROCKER

- valve, right-hand, with bushing

6шт.

11

K63090

ROCKER

- valve, left-hand. with bushing

6шт.

12

K11060

BUSHING

- valve rocker

1шт.

13

K907920

TUBE

SHAFT - rocker arm

2шт.

14

K19590

PLUG

- 3/8 inch BSP

4шт.

15

K606051

SET SCREW,5/16" - 18 x 1/2"

- locating, 5/16 inch UNC

2шт.

16

K921432

BRACKET

- rocker shaft, rear

2шт.

17

K921431

BRACKET

- rocker shaft.

4шт.

18

K600611

BOLT

- 7/16 UNC x 2-5/8 inch

6шт.

19

K626314

WASHER

- 7/16 inch

6шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

21

K11017

SPRING

- locating, intermediate

4шт.

22

K907919

WASHER

SPRING - locating, ends

4шт.

23

K928622

STD INLET VALVE

VALVE - intake and exhaust, standard stem

6шт.

24

K950100

STD EXHAUST VALVE

VALVE - exhaust, standard stem

6шт.

23

K928986

VALVE

- intake and exhaust, 0.010 inch (0.25 mm) oversize stem

6шт.

24

K950545

VALVE

- exhaust, 0.010 inch (0.25 mm) Oversize stem

6шт.

23

K928987

VALVE

- intake and exhaust, 0.020 inch (0.51 mm) oversize stem

6шт.

24

K950546

VALVE

- exhaust, 0.020 inch (0.51 mm) Oversize stem

6шт.

25

K928623

COLLAR

- inner, exhaust valve

6шт.

26

K928624

COLLAR

- outer, exhaust valve

6шт.

27

K921436

VALVE SPRING

SPRING - exhaust valve

6шт.

28

K921437

COLLAR

- intake valve

6шт.

29

K921435

SPRING

- intake valve

6шт.

30

K943439

LOCKING DEVICE

COTTER - intake and exhaust valve (Halves)

24шт.

31

K947639

CAMSHAFT

GEAR - camshaft, 68 teeth

1шт.

32

K19610

KEY

- Woodruff, No., 607

1шт.

33

K66382

WASHER

- 7/16 inch (11 mm)

1шт.

34

K600701

BOLT

- 7/16 UNC x 2-3/8 inch

1шт.

35

K947636

GEAR

- crankshaft, 34 teeth

1шт.

36

K948944

GEAR

ASSEMBLY - intermediate, 53 teeth, Includes: Ref. 37

1шт.

37

K628743

BUSHING

- intermediate gear

1шт.

38

K260514

GEAR

SHAFT ASSEMBLY - intermediate gear, Include: Ref. 39

1шт.

39

K606221

SCREW

PLUG - 5/16 inch UNC

2шт.

40

K917649

PLATE

- locating

1шт.

41

K917651

SHIM

- 0.002 inch (0.05 mm)

1шт.

42

K600215

BOLT

- 5/16 UNC x 2-3/4 inch

3шт.

43

K917650

WASHER

- tab

1шт.

44

K948442

PINION

GEAR - injection pump, 68 teeth

1шт.
