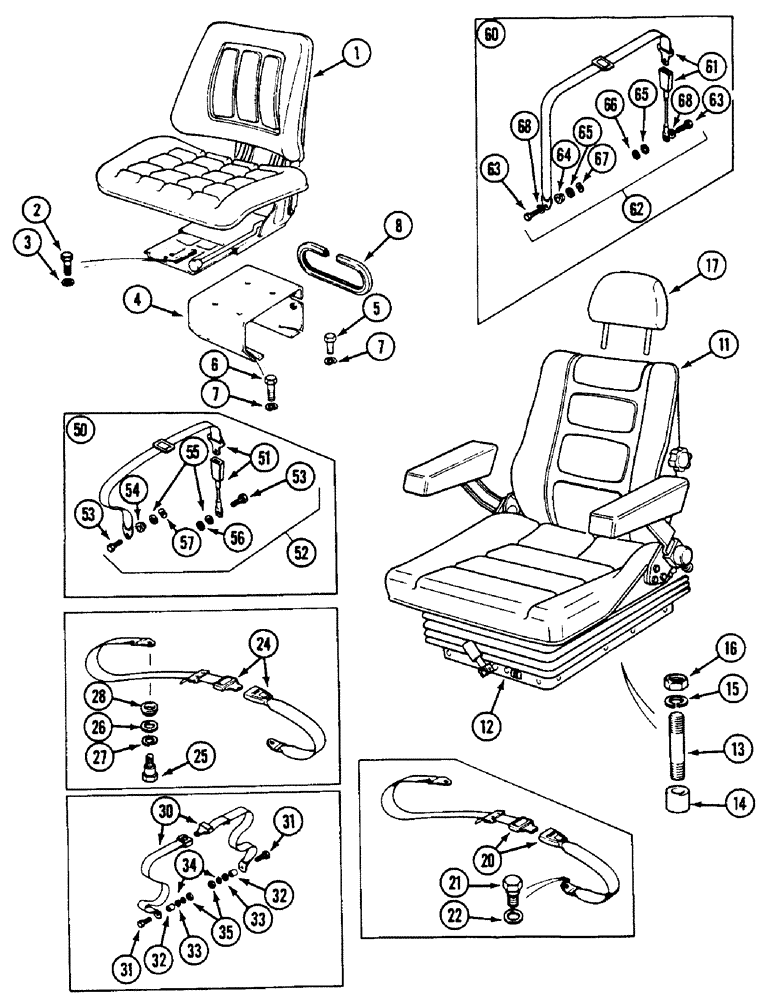

Запчасти Case IH 1594 (9-374) - SEAT AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

K307863

SEAT

ASSEMBLY - operator (Without cab), See Figure 9-376

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

K306309

BRACKET

- seat support (Without cab)

1шт.

5

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

6

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

K628223

STRIP

- edging, seat bracket

1шт.

K307643

SEAT

ASSEMBLY - operator (With cab), See Figure 9-378, Includes: Ref. 11 & 12

1шт.

11

REF

INSTRUCTION

SEAT - operator

1шт.

12

K306762

FRAME

SUSPENSION ASSEMBLY - seat, See Figure 9-380

1шт.

13

K655110

STUD

- M8 x 50 mm

4шт.

14

K304093

BUSHING

SPACER - seat mounting

4шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

16

825-1408

NUT,M8, Cl 8

4шт.

17

K965722

BACKREST

EXTENSION - backrest, cab seat

1шт.

UK1596

BELT

ATTACHMENT - seat belt (Without cab), Includes: Ref. 20 - 22

1шт.

20

A160404

SAFETY BELT

BELT - seat, safety

1шт.

21

K945358

STEP BOLT

BOLT - 7/16 inch UNF

2шт.

22

K945349

WASHER

- special

2шт.

UK6643

BELT

ATTACHMENT - seat belt (With cab), Includes: Ref. 24 - 32

1шт.

24

A160404

SAFETY BELT

BELT - seat, safety

1шт.

25

K613005

SCREW

BOLT - 7/16 UNF x 1-1/4 inch

2шт.

26

K626314

WASHER

- 7/16 inch

2шт.

27

K626480

WASHER

- lock, 1/2 inch

2шт.

28

K309647

BUSHING

SPACER - seat

2шт.

30

A160404

SAFETY BELT

BELT - seat, safety

1шт.

31

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

32

A60907

BUSHING

SPACER - anchor bolt

2шт.

33

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

34

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

50

K311834

BELT

SEAT BELT PACK - for K307863 seat assembly (With ROPS and without cab), Includes: Ref. 51 - 57

1шт.

51

K311330

BELT

- safety 2 inch

1шт.

52

K262227

KIT

FITTING KIT, Includes: Ref. 53 - 57

1шт.

53

K311831

SCREW

2шт.

54

K311832

BUSH - belt anchor

1шт.

55

K311833

WASHER - plain

2шт.

56

K311829

WASHER - star

1шт.

57

K311826

WASHER - wavy

1шт.

60

K311836

SEAT BELT PACK - for K307643 seat assembly (With cab), Includes: Ref. 61 - 68

1шт.

61

K311332

SAFETY BELT

SAFETY BELT, 2" wide

1шт.

62

K262229

KIT

FITTING KIT, Includes: Ref. 63 - 68

1шт.

63

K311830

SCREW

2шт.

64

K311825

BUSH - belt anchor

1шт.

65

K311827

WASHER - plain

1шт.

66

K311829

WASHER - star

2шт.

67

K311826

WASHER - wavy

1шт.

68

K311828

WASHER

2шт.
