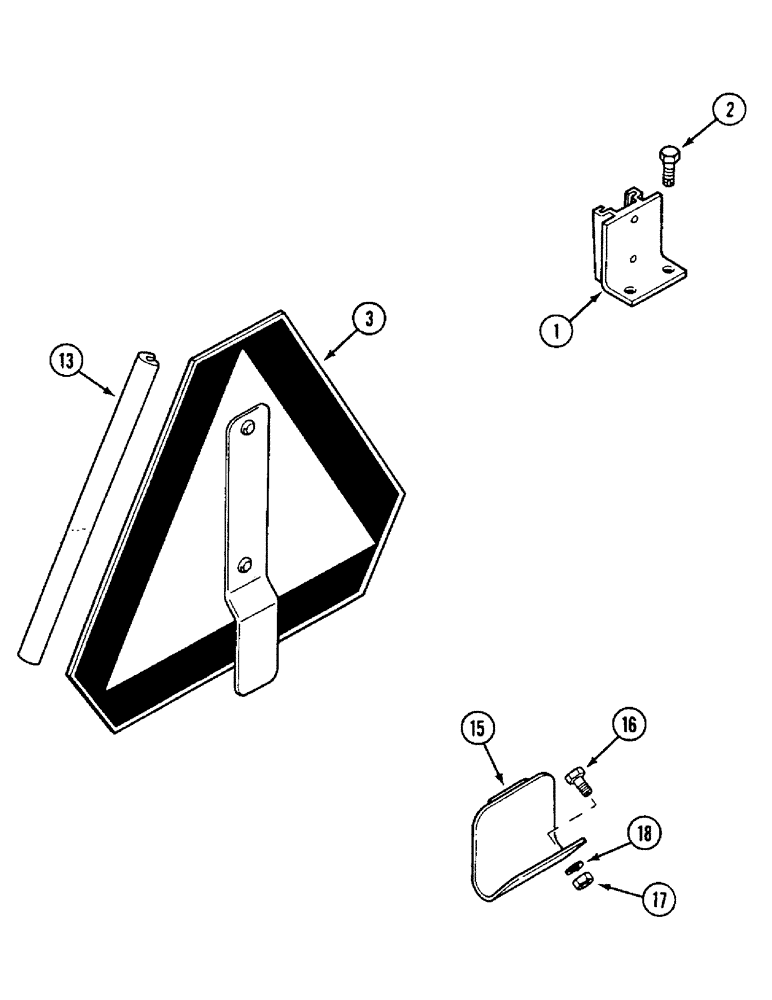

Запчасти Case IH 1594 (9-372) - SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

1

A66814

BRACKET

- SMV emblem (Without cab)

1шт.

2

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

SCREW - self tapping, 5/16 x 1/2 inch

2шт.

3

A59450

WARNING SIGN

EMBLEM - SMV

1шт.

13

A165860

TRIM

- emblem, 27.4 inch

1шт.

15

K307537

BRACKET

- SMV emblem (With cab)

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

17

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

2шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.
