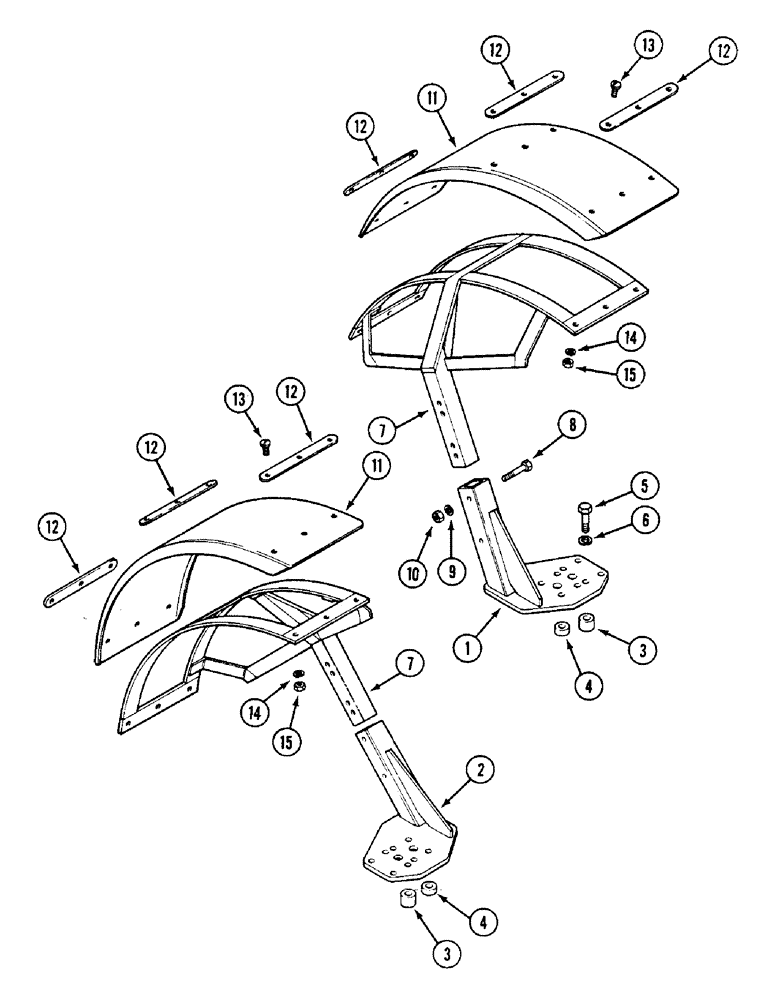

Запчасти Case IH 1594 (9-370) - FENDER - FRONT, MFD TRACTORS ONLY, P.I.N. 11221501 AND AFTER (09) - CHASSIS/ATTACHMENTS

U6808

FENDERS ATTACHMENT - front

1шт.

1

K208420

BRACKET

- support, Serial Range: left-hand,-axle

1шт.

2

K311695

BRACKET

- support, Serial Range: right-hand,-axle

1шт.

3

K208421

SPACER

- outer

4шт.

4

K208422

SPACER

- inner

4шт.

5

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

- hex, 12 - 1.75 x 55 mm

8шт.

6

K651850

SPRING

WASHER - lock, 12 mm

8шт.

7

K208425

BRACKET

- fender support

2шт.

8

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

- hex, 10 - 1.5 x 65 mm

4шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

825-1410

NUT,M10, Cl 8

4шт.

11

K208487

MUDFLAP

FENDER -

2шт.

12

K208426

STRIP

- reinforcing

6шт.

13

K652489

SCREW

BOLT - special, M8 x 30 mm

18шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

18шт.

15

825-1408

NUT,M8, Cl 8

18шт.
