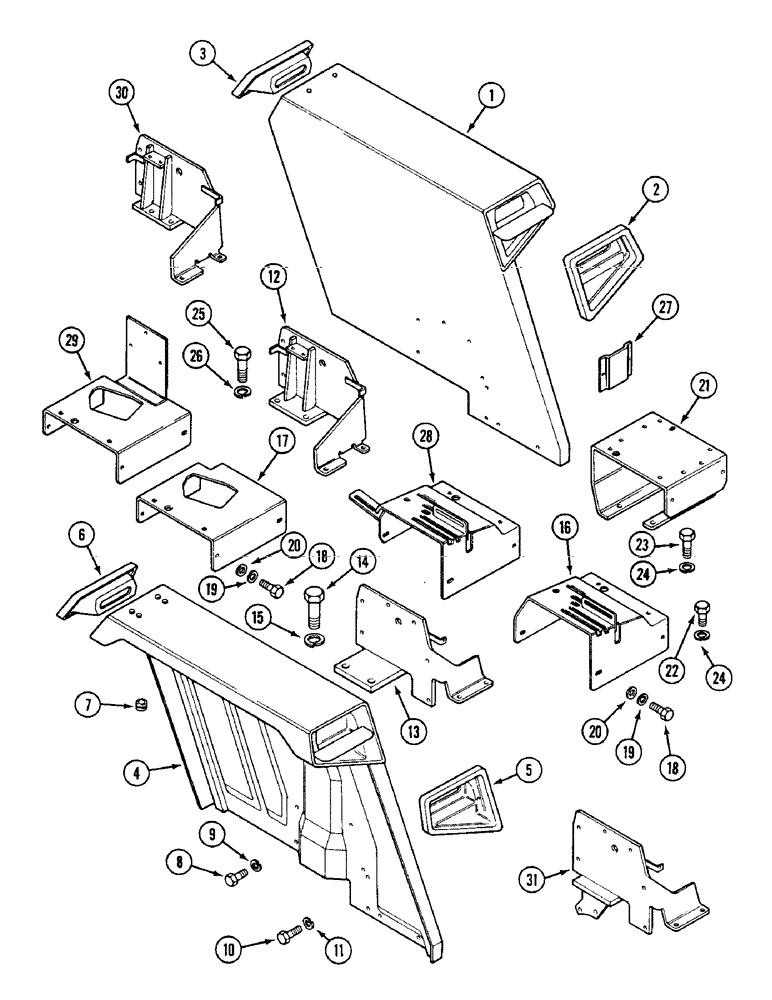

Запчасти Case IH 1594 (9-368) - REAR FENDERS AND MOUNTINGS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

K300386

FENDER

- full, left-hand (Not North America)

1шт.

1

K305126

FENDER

- full, left-hand (North America only)

1шт.

2

K300413

MOLDING

MOULDING - front, left-hand

1шт.

3

K300422

MOLDING

MOULDING - rear, left-hand

1шт.

4

K300388

FENDER

- full, right-hand (Not North America)

1шт.

4

K305120

FENDER

- full, right-hand (North America only)

1шт.

5

K300423

MOLDING

MOULDING - front, right-hand

1шт.

6

K300405

MOLDING

MOULDING - rear, right-hand

1шт.

7

K627781

PLUG

- blanking, 7/32 inch diameter, 7/32 inch diameter

4шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

12шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

12

K306345

SUPPORT

BRACKET - left-hand fender, standard clearance

1шт.

13

K306346

SUPPORT

BRACKET - right-hand fender, standard clearance

1шт.

14

K601356

BOLT

- 5/8 UNC x 2 inch

8шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

K311570

BRACKET

CONSOLE - right-hand (With folding ROPS) (Replaces K306370)

1шт.

17

K311571

BRACKET

CONSOLE - left-hand (Replaces K306410 and K308647)

1шт.

18

K651242

BOLT

- M8 x 20 mm

12шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

12шт.

21

K306309

BRACKET

- seat support

1шт.

22

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

23

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

K603108

SCREW

BOLT - axle housing, 1/2 UNC x 1-1/2 inch

4шт.

26

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

27

K307974

PLATE

- SMV emblem

1шт.

28

K311604

PANEL

CONSOLE - right-hand, (Folding two post ROPS)

1шт.

29

K311606

PANEL

CONSOLE - left-hand (Folding two post ROPS)

1шт.

30

K311815

BRACKET

- left-hand fender, high clearance (North America only)

1шт.

31

K311816

BRACKET

- right-hand fender, high clearance (North America only)

1шт.
