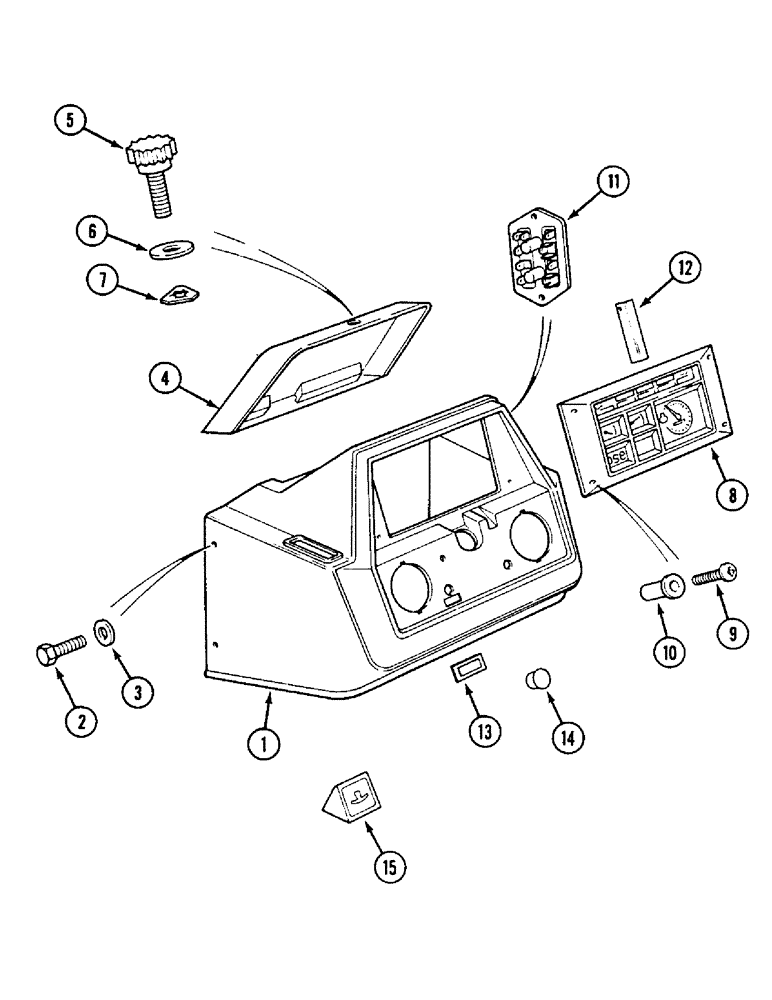

Запчасти Case IH 1594 (9-364) - INSTRUMENT PANEL, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K307632

PANEL

- instrument (Synchromesh)

1шт.

1

K311263

PANEL

- instrument (Power shift)

1шт.

2

K652509

SCREW,Pan, M6 x 1 x 30mm

- M6 x 30 mm

4шт.

3

K651904

WASHER

- 6 mm

4шт.

4

K307631

COVER

- instrument panel

1шт.

5

K303952

SCREW,M5 x 0.8 x 18mm, Steel

- M5, special

1шт.

6

K651903

WASHER

- special, 6 mm

1шт.

7

K626173

CLIP

RETAINER - screw

1шт.

8

REF

INSTRUCTION

CLUSTER - instrument, See Figure 4-56

1шт.

9

30464R1

SCREW,Cross Pan Hd, M5 x 25

- machine, 5 mm x 25 mm long

4шт.

10

K653092

NUT

INSERT - M5 x 25 mm

4шт.

11

REF

INSTRUCTION

BOX ASSEMBLY - fuse, See Figure 4-66

1шт.

12

K304557

BRACKET

SUPPORT - power shift lever decal

1шт.

13

K307606

PLUG

- switch hole (North America only)

1шт.

14

K656783

PLUG

- plastic, 11 mm

1шт.

15

K307960

DECAL

SUPPORT - stop control decal (North America only)

1шт.
