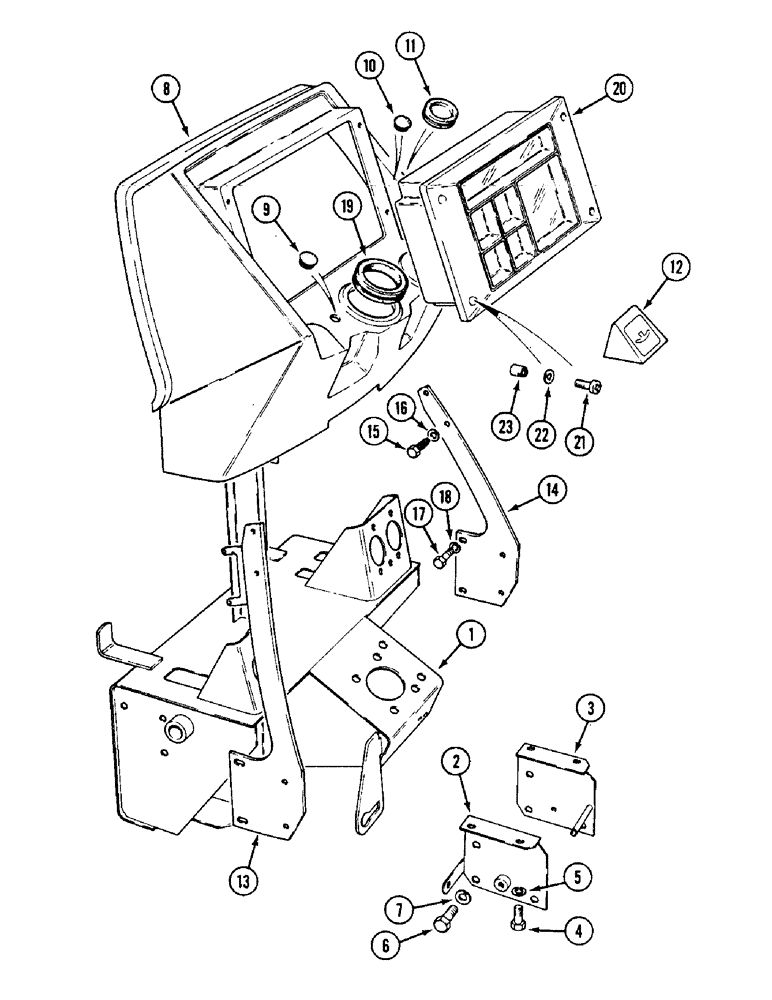

Запчасти Case IH 1594 (9-362) - INSTRUMENT PANEL AND PEDAL SUPPORT, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

K304634

PEDAL

BRACKET - support, pedals (Prior to P.I.N. 11526001)

1шт.

1

K304519

PEDAL

BRACKET - support, pedals (P.I.N. 11526001 and after)

1шт.

2

K302644

MOUNTING PARTS

BRACKET - mounting, left-hand

1шт.

3

K302645

BRACKET

- mounting, right-hand

1шт.

4

K650649

BOLT

- M8 x 55 mm

6шт.

5

892-11010

LOCK WASHER,M10

6шт.

6

513-2704

BOLT

- M10 x 20 mm

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

8

K300776

PANEL

- instrument (Synchromesh)

1шт.

8

K307036

PANEL

- instrument (Power-shift)

1шт.

9

K656769

RUBBER

PLUG - rubber, 19 mm (North America only)

1шт.

10

K656767

GROMMET

PLUG - rubber, 16 mm (North America only)

1шт.

11

K627724

GROMMET

PLUG - rubber, 1-3/16 inch (North America only)

1шт.

12

K307960

DECAL

SUPPORT - stop control decal (North America only)

1шт.

13

K302651

PANEL

BRACKET - support, left-hand

1шт.

14

K300727

SUPPORT

BRACKET - support, right-hand

1шт.

15

K624534

SELF-TAP SCREW

SCREW - special

8шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

17

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

4шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

19

K304378

COVER

GROMMET - instrument panel

1шт.

20

REF

INSTRUCTION

INSTRUMENT CLUSTER, See Figure 4-56

1шт.

21

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- Phillips, M5 x 10 mm

4шт.

22

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

23

K652032

INSERT

- M5 x 9.5 mm

4шт.
