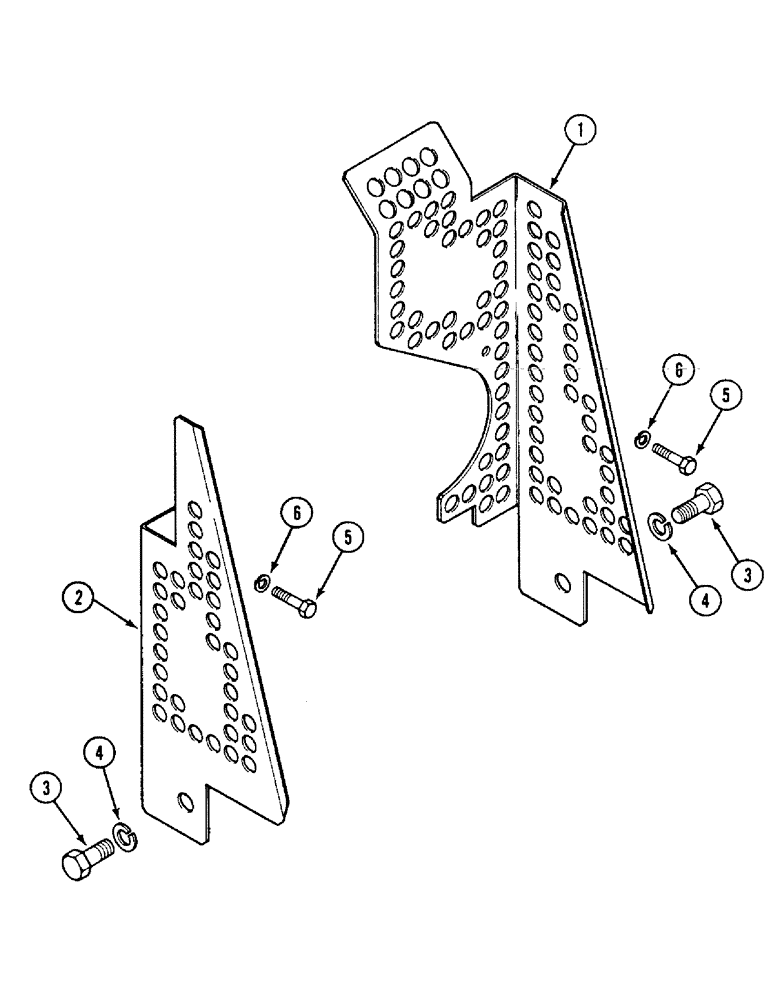

Запчасти Case IH 1594 (9-360) - GUARDS - DRIVE BELTS AND PULLEYS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

UK6815

GUARD ASSEMBLY - fan and belts, without air conditioning, Includes: Ref. 1 - 6

1шт.

1

K208434

GUARD

- left-hand

1шт.

2

K311875

GUARD

- right-hand

1шт.

3

K603274

SCREW

BOLT - 5/8 UNC x 1-1/2 inch

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

K600206

BOLT

- 5/16 UNC x 1-5/8 inch

2шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

UK6834

GUARD ASSEMBLY - fan and belts, with air conditioning, Includes: Ref. 11 - 16

1шт.

11

K311873

GUARD

- left-hand

1шт.

12

K311875

GUARD

- right-hand

1шт.

13

K603274

SCREW

BOLT - 5/8 UNC x 1-1/2 inch

2шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

K600206

BOLT

- 5/16 UNC x 1-5/8 inch

2шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.
