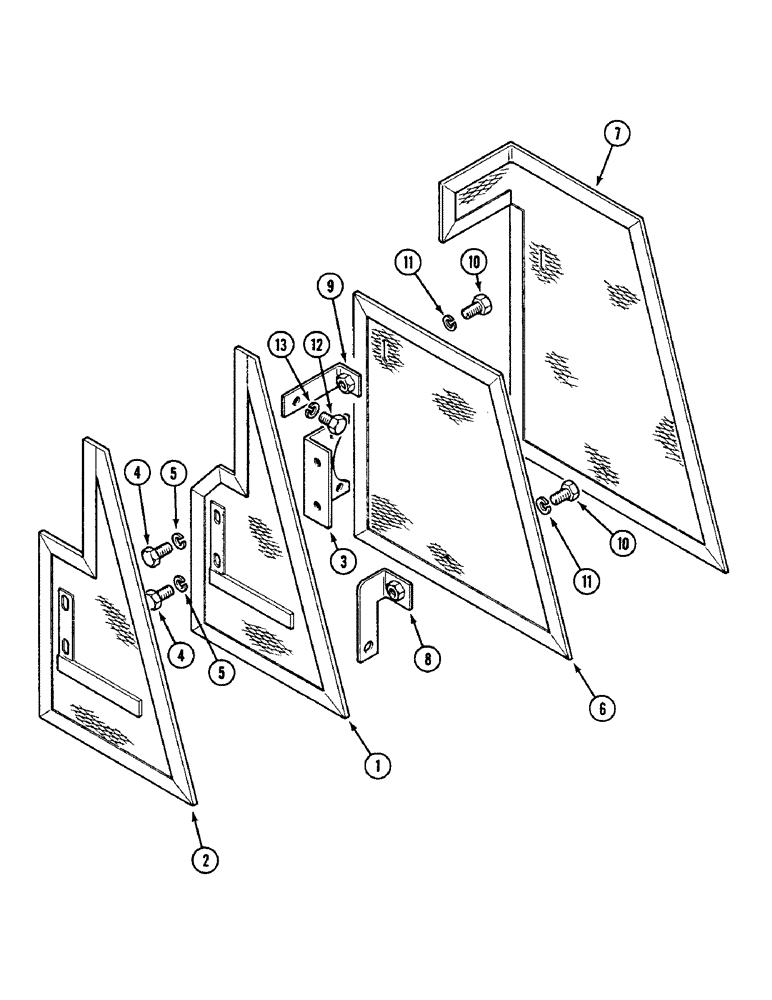

Запчасти Case IH 1594 (9-358) - GUARDS - DRIVE BELTS AND PULLEYS, U.K. TRACTORS ONLY (09) - CHASSIS/ATTACHMENTS

1

K309826

GUARD

- right-hand, with air conditioning

1шт.

2

K310902

GUARD

- right-hand, without air conditioning

1шт.

3

K309829

BRACKET

- guard to timing cover

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

K310176

GUARD

- left-hand, with air conditioning

1шт.

7

K309846

GUARD

- left-hand, without air conditioning

1шт.

8

K309852

BRACKET

- guard to front extension

1шт.

9

K309854

BRACKET

- guard to timing cover

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

12

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.
