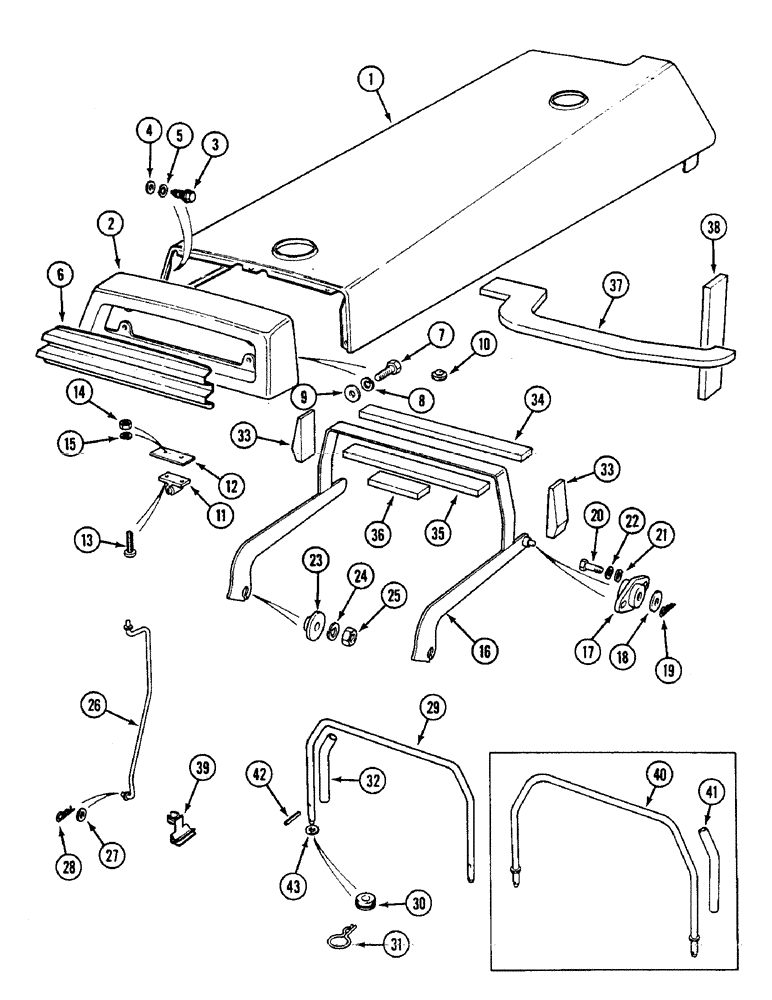

Запчасти Case IH 1594 (9-356) - ENGINE HOOD AND HINGE (09) - CHASSIS/ATTACHMENTS

1

K307679

HOOD

- engine (Without cab)

1шт.

1

K307608

HOOD

- engine (With cab)

1шт.

2

K956313

HOOD

NOSE - hood, engine

1шт.

3

K624534

SELF-TAP SCREW

SCREW - special

5шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

5шт.

5

K626552

WASHER

- lock, 1/4 inch

5шт.

6

K301066

GUARD

GRILLE - upper

1шт.

7

K652504

SCREW

- M5 x 16 mm

4шт.

8

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

9

K626946

WASHER

- 5 mm

4шт.

10

K916596

PLUG

- rubber

4шт.

11

K304944

LOCK

CATCH - hood

1шт.

12

K304946

PLATE

- catch

1шт.

13

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 inch

2шт.

14

K617299

LOCK NUT

- self-locking, No., 10 UNF

2шт.

15

K626340

RING

WASHER - lock, 10

2шт.

16

K305981

PIVOT

FRAME - hood

1шт.

17

K304095

LINK

BRACKET - pivot

2шт.

18

K692199

WASHER

- special, 8 mm

2шт.

18

K210412

WASHER, LOCK

WASHER - special, locking (Later tractors)

2шт.

19

K950865

CLIP

- retaining (Early tractors)

2шт.

20

K650628

BOLT

- M6 x 20 mm

4шт.

21

K626662

WASHER

- 1/4 inch

4шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

23

K205385

BUSHING

SPACER - cross member

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

825-1410

NUT,M10, Cl 8

2шт.

26

K305966

SUPPORT

ROD - hood support

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

28

K950865

CLIP

- retaining

1шт.

29

K307673

GUIDE

- hood (Without cab)

1шт.

29

K311516

BAR

GUIDE - hood (With cab)

1шт.

30

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

- rubber

2шт.

31

K38632

SPRING

CLIP - retaining

2шт.

32

K311594

SLEEVE

- guide (Use with K307673)

2шт.

33

K306747

BAFFLE

SEAL - hood top

2шт.

34

K306748

BAFFLE

SEAL - pivot arm

1шт.

35

K306749

ARM

BAFFLE - pivot arm, left-hand

1шт.

36

K306750

BAFFLE

- pivot arm, right-hand

1шт.

37

K307829

STRIP

- sealing, hood rear (With cab)

1шт.

38

K307833

SEALING STRIP

SEAL - hood side, rear (With cab)

1шт.

39

K657161

CLIP

- support rod

1шт.

40

K311518

ROD

GUIDE - hood, (Without cab)

1шт.

40

K311516

BAR

GUIDE - hood, (With cab)

1шт.

41

K311594

SLEEVE

- guide

2шт.

42

K311515

PIN

- locating

2шт.
