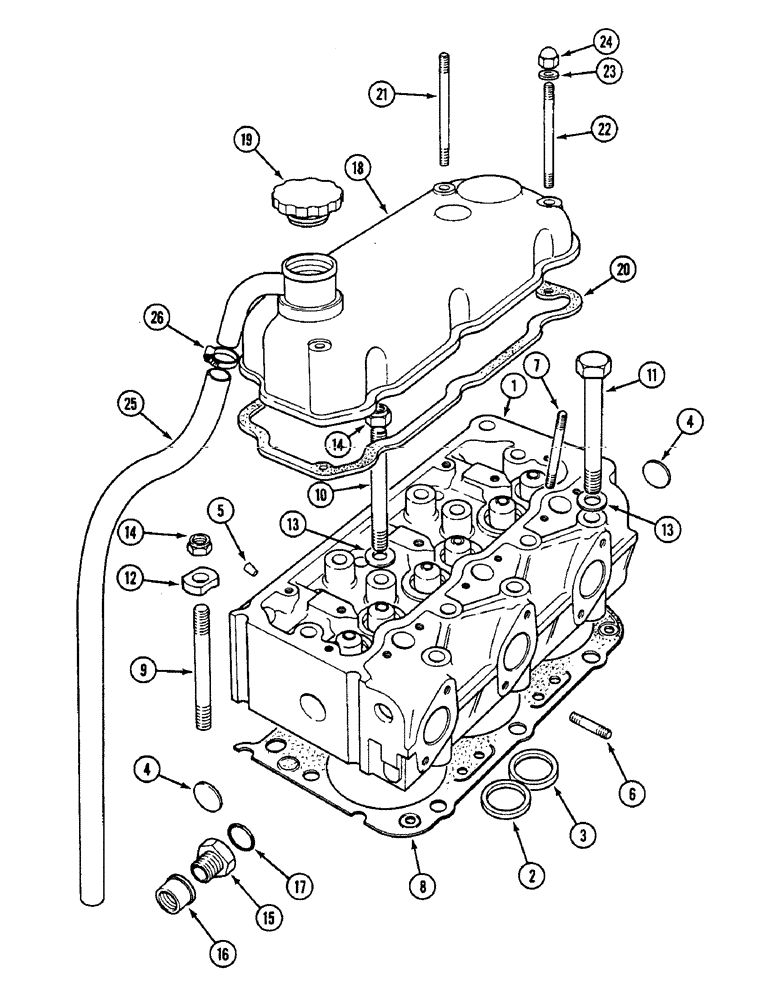

Запчасти Case IH 1594 (2-16) - REAR CYLINDER HEAD (02) - ENGINE

K965047

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, rear, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - Order K965047

1шт.

2

K921246

INSERT

- intake valve seat

3шт.

3

K925019

INSERT

- exhaust valve seat

3шт.

4

41-1616

PLUG,Cup, 1", Stainless

1шт.

5

K900431

PLUG

- taper

3шт.

6

K608203

STUD

- inlet manifold, 3/8 NC x 1-7/16 inch

6шт.

7

K608107

STUD

- injectors, 5/16 UNC x 2-11/16 inch

6шт.

8

K952527

GASKET

GASKET - cylinder head

1шт.

9

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC/UNF x 5-5/16 inch

3шт.

10

K906538

STUD

- UNC/UNF x 4-7/8 inch

4шт.

11

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

8шт.

12

K918692

WASHER

- 1/2 inch (13 mm) special

2шт.

13

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

- flat, 1/2 inch (13 mm)

13шт.

14

K617594

NUT

- 1/2 inch UNF

7шт.

15

K940268

FITTING

CONNECTOR - water passage

1шт.

16

K940267

BUSHING

- threaded

1шт.

17

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

1шт.

18

K206725

COVER

- cylinder head

1шт.

19

K948427

CAP

- filler

1шт.

20

K918689

GASKET,3.97mm Thk

- head cover

1шт.

21

K608116

STUD

- 5/16 UNC x 3-11/16 inch

2шт.

22

K608110

STUD

- 5/16 UNC x 3-1/8 inch

2шт.

23

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- sealing, 5/16 inch (8 mm)

4шт.

24

234-10431

CROWN NUT,Crown, 5/16"-18

4шт.

25

K206741

PIPE

HOSE - breather, engine

1шт.

26

K622024

CLAMP

CLIP - hose, 3/4 inch (19 mm)

1шт.

K965964

KIT, ENGINE TOP GASK

GASKET KIT - cylinder heads, front and rear

1шт.
