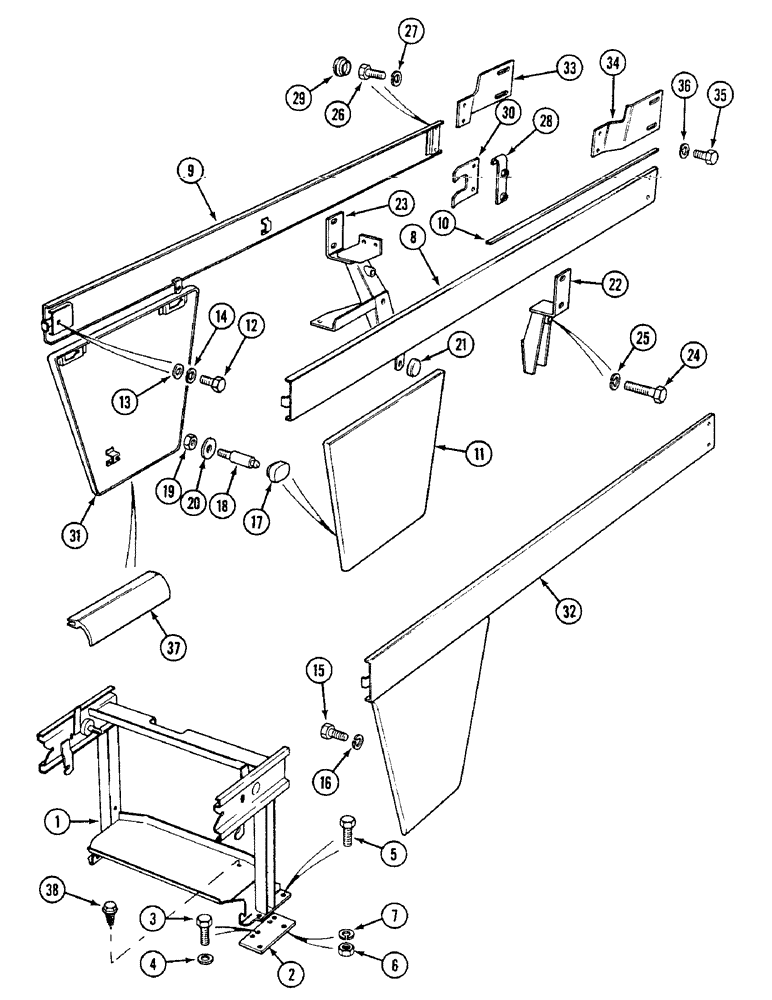

Запчасти Case IH 1594 (9-354) - ENGINE HOOD AND SUPPORT FRAME (09) - CHASSIS/ATTACHMENTS

1

K307451

FRAME

- engine hood support

1шт.

2

K304723

PLATE

- support frame

2шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

280136

NUT,3/8"-16, G8

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

K306613

FRAME

ASSEMBLY - left-hand side (With cab), Includes: Ref. 10

1шт.

9

K307585

STRIP

FRAME ASSEMBLY - right-hand side (Without cab), Includes: Ref. 10

1шт.

9

K307533

STRIP

FRAME ASSEMBLY - right-hand side (With cab), Includes: Ref. 10

1шт.

10

K304909

STRIP

- nylon (Replaces K304911)

2шт.

11

K308445

PANEL

- left-hand side (With cab) (Replaces K305817)

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

17

K305819

RUBBER

MOUNT - rubber

1шт.

18

K206453

STUD

- M8

1шт.

19

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

20

K626916

WASHER

- 5/16 inch (8 mm) special

1шт.

21

K305758

RUBBER

BUFFER - rubber

2шт.

22

K305796

SUPPORT

BRACKET - support, left-hand rear (With cab)

1шт.

23

K305800

SUPPORT

BRACKET - support, right-hand rear (With cab)

1шт.

24

K602902

SCREW

BOLT - 3/8 UNC x 3/4 inch

4шт.

25

492-11038

LOCK WASHER,3/8"

4шт.

26

K654072

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 23mm

BOLT - M8 x 20 mm

4шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

28

K307033

NUT

PLATE - nut, 8 mm

2шт.

29

K627992

PLUG

- plastic, 5/8 inch diameter

4шт.

30

K307126

GUIDE

PLATE - guide

2шт.

31

K308446

PANEL

- right-hand side

1шт.

32

K306620

FRAME

WAIST RAIL AND PANEL - left-hand (Without cab)

1шт.

33

K305646

BRACKET

- support, left-hand rear (Without cab)

1шт.

34

K305647

BRACKET

- support, right-hand rear (Without cab)

1шт.

35

K650628

BOLT

- M6 x 20 mm

4шт.

36

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

37

K308418

SEAL

- side panel

2шт.
