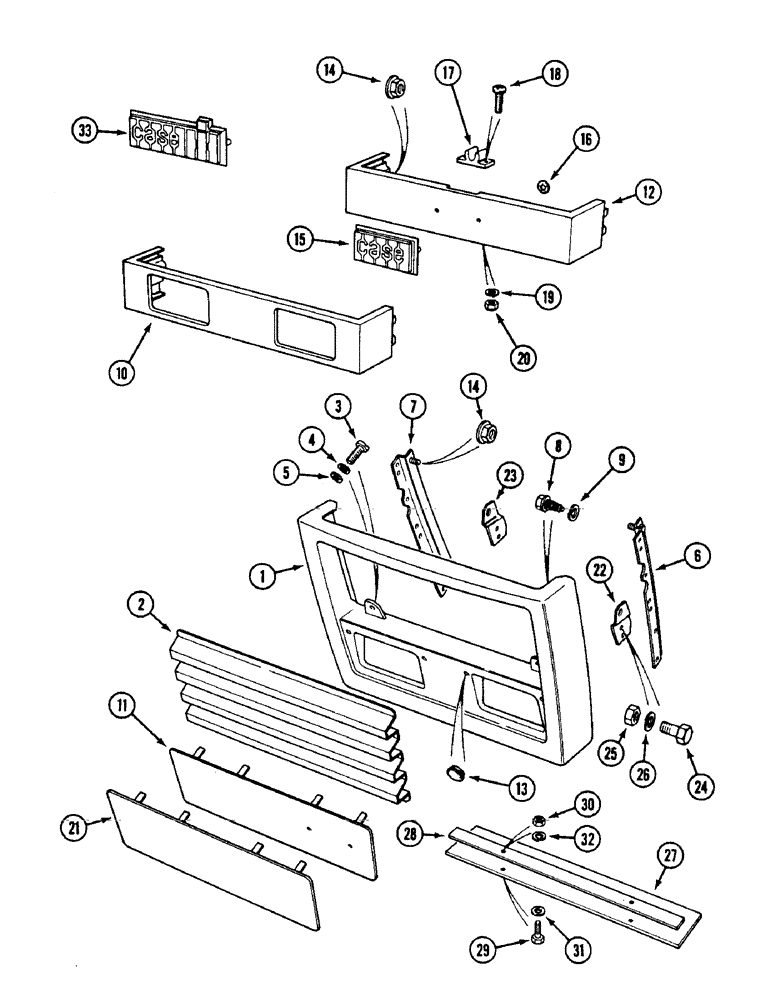

Запчасти Case IH 1594 (9-352) - ENGINE FRONT HOOD (09) - CHASSIS/ATTACHMENTS

1

K300006

GRILLE

NOSE - lower

1шт.

REF#1 WHEN GOING FROM CASE TO IH,PAINT WAS CHANGED FROM WHITE TO RED.SPECS SAME DLR MUST PAINT RED.

1шт.

2

K308483

GUARD

GRILLE - lower

1шт.

3

K652504

SCREW

- M5 x 16 mm

4шт.

4

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

5

K626946

WASHER

- 5 mm

4шт.

6

K304827

SUPPORT

BRACKET - support, left-hand

1шт.

7

K304829

SUPPORT

BRACKET - support, right-hand

1шт.

8

K624534

SELF-TAP SCREW

SCREW - special

6шт.

9

K626552

WASHER

- lock, 1/4 inch

6шт.

10

K311366

BRACKET

WAISTRAIL - front, with head lamp mounting

1шт.

11

K311360

PLATE

- blanking, head lamp apertures

1шт.

12

K305962

FRAME

WAISTRAIL - front, without head lamp mounting

1шт.

13

K627874

PLUG

- headlamp adjusters

4шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Special, Order also 892-11008 M8, Cl 10

4шт.

15

321-4739

EMBLEM

- Case

1шт.

16

K659151

PUSH-ON NUT

- 1/4 inch

2шт.

17

K304945

FASTENER

CATCH - cover top

1шт.

18

K614946

SCREW,Pan, #10 - 32 x 3/4"

- No. 10 UNF x 3/4 inch

2шт.

19

K626340

RING

WASHER - lock

2шт.

20

K617299

LOCK NUT

- self-locking, No., 10 UNF

2шт.

21

K308558

PLATE

- blanking, outboard head lamps (Not North America)

1шт.

22

K302149

BRACKET

- left-hand, outboard head lamps

1шт.

23

K302150

BRACKET

- right-hand, outboard head lamps

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

25

825-1408

NUT,M8, Cl 8

4шт.

26

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

27

K308235

BAFFLE

- rubber

1шт.

28

K308236

STRIP

- clamping

1шт.

29

K650616

BOLT

- M5 x 20 mm

2шт.

30

K651505

NUT

- M5, Order 825-1405

2шт.

31

K651776

WASHER

- 5 mm

2шт.

32

K651826

WASHER

- lock, 5 mm, Order 892-11005

2шт.

33

1536056C1

EMBLEM CASE/IH

EMBLEM - Case IH Logo

1шт.
