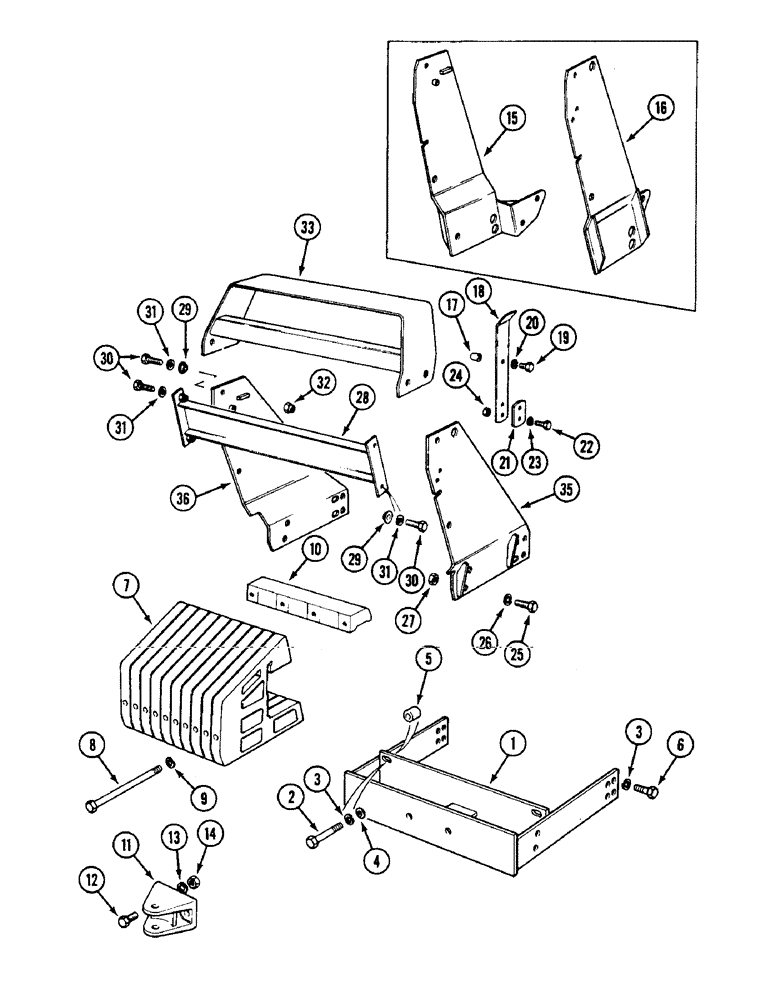

Запчасти Case IH 1594 (9-350) - WEIGHTS, FRAME, TOW BRACKET RADIATOR GUARD (09) - CHASSIS/ATTACHMENTS

UK5717

FRAME

ATTACHMENT - ballast, Includes: Ref. 1 - 3

1шт.

1

K306877

FRAME

- support

1шт.

2

K603276

SCREW

BOLT - 5/8 UNC x 1-3/4 inch

8шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

K626855

WASHER

- 5/8 inch

4шт.

5

K306881

BUSHING

SPACER - front extension

4шт.

6

K603276

SCREW

BOLT - 5/8 UNC x 1-3/4 inch

42шт.

UK5720

ATTACHMENT

WEIGHT ATTACHMENT - ballast, Includes: Ref. 7 - 10

1шт.

7

K306858

WEIGHT

- ballast

12шт.

8

K650833

BOLT

- M16 x 330 mm

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

10

K306896

BAR

- locking

1шт.

A177102

KIT

HARDWARE KIT - weight (North America only)

1шт.

UK5721

KIT

BRACKET ATTACHMENT - tow, Includes: Ref. 11 - 14

1шт.

11

K207651

CLEVIS

BRACKET - tow

1шт.

12

K650726

BOLT

- M16 x 55 mm

2шт.

13

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

2шт.

14

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

UK5586

KIT

GUARD ATTACHMENT - radiator, Includes: Ref. 15 - 36

1шт.

15

K305108

PLATE

- side, left-hand (Use with K305110) (Early tractors)

1шт.

16

K305110

PLATE

- side, right-hand (Use with K305108) (Early tractors)

1шт.

17

K305085

STOP

PIN - stop

1шт.

18

K305088

STOP

STRAP - spring

1шт.

19

K650657

BOLT

- M10 x 14 mm

1шт.

20

892-11010

LOCK WASHER,M10

1шт.

21

K948166

SPRING

PLATE - strap

1шт.

22

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

23

280136

NUT,3/8"-16, G8

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

K691849

BOLT

- 5/8 UNC x 2 inch

8шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

27

425-1010

NUT,5/8"-11, G5

4шт.

28

K305112

CHANNEL

BAR - tie

1шт.

29

K305087

BUSHING

- plastic

4шт.

30

K691960

SCREW

BOLT - 1/2 UNC x 1-5/8 inch

6шт.

31

K626686

WASHER

- flat, 1/2 inch (13 mm)

6шт.

32

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

33

K305114

GUARD

- hood nose

1шт.

35

K305162

PLATE

- side, left-hand (Use with K305163) (Later tractors)

1шт.

36

K305163

PLATE

- side, right-hand (Use with K305162) (Later tractors)

1шт.
