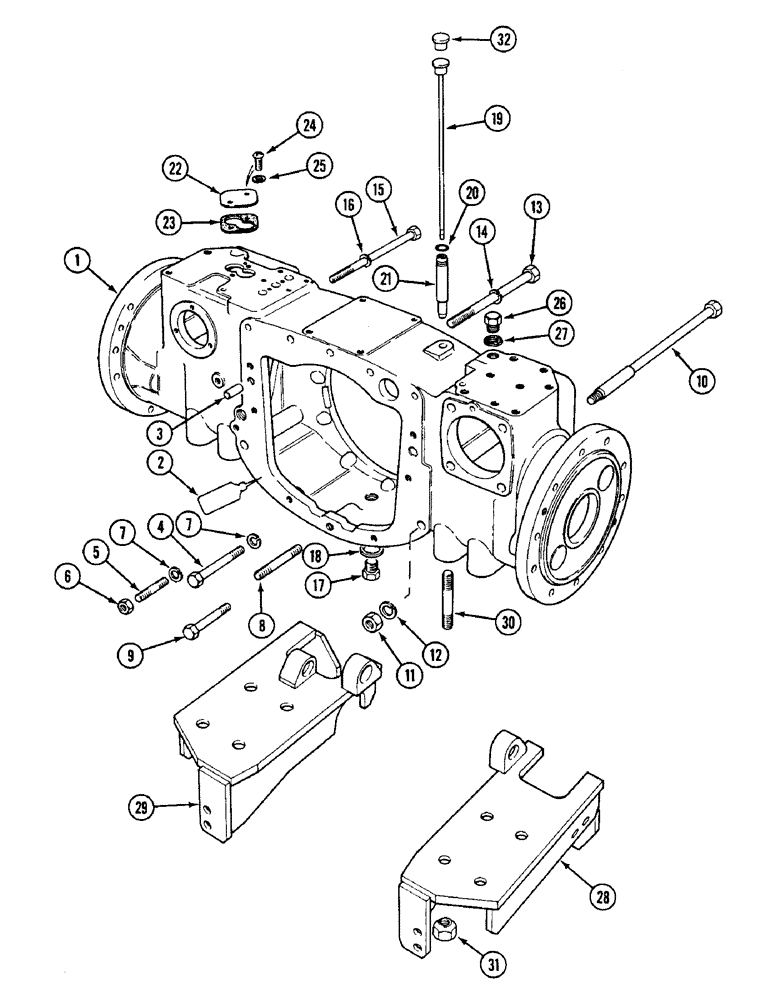

Запчасти Case IH 1594 (9-348) - REAR AXLE HOUSING AND HITCH BRACKETS (09) - CHASSIS/ATTACHMENTS

1

K956664

SHAFT

HOUSING - rear axle

1шт.

2

K260977

LOCTITE

504 - housing to main frame

1шт.

3

K622904

PIN

DOWEL - 5/8 x 1-9/16 inch

2шт.

4

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

3шт.

5

K608434

STUD

- 1/2 UNC x 2-7/8 inch (Replaces K608433)

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

8

K608619

STUD

- 5/8 UNC x 3-3/4 inch (Replaces K608618)

1шт.

9

K608834

BOLT

- 1/2 UNC x 3-1/2 inch, Order 326-856

1шт.

10

K601385

BOLT

- 5/8 inch UNC

2шт.

11

K607006

NUT

- hex, 5/8 inch NC

3шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

13

K601381

BOLT

- 5/8 UNC x 8-1/4 inch, Order 13-10132

3шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

15

K600894

BOLT

- 1/2 UNC x 8 inch

2шт.

16

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

17

K623851

PLUG

- 3/4 inch BSP

1шт.

18

K627474

WASHER

- sealing, 1-1/16 inch (27 mm)

1шт.

19

K203621

DIPSTICK

- transmission oil

1шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

21

K203546

DIPSTICK

SLEEVE - dipstick

1шт.

22

K929463

COVER

PLATE - cover, axle housing without dump valve

1шт.

23

K929464

GASKET

- cover plate

1шт.

24

K602803

BOLT

- 5/16 UNC x 3/4 inch

2шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

26

K619528

PLUG

- oil return port, 7/8 inch UNF

1шт.

27

K30085

GASKET

WASHER - sealing, 7/8 inch (22 mm)

1шт.

28

K204556

BRACKET

- hitch, left-hand

1шт.

29

K204555

BRACKET

- hitch, right-hand

1шт.

30

K608703

STUD

- 3/4 UNC/UNF x 4 inch

8шт.

31

K617168

WHEEL NUT

- wheel, 3/4 inch UNF

8шт.

32

K628102

PLUG

- axle housing (Without cab)

1шт.
