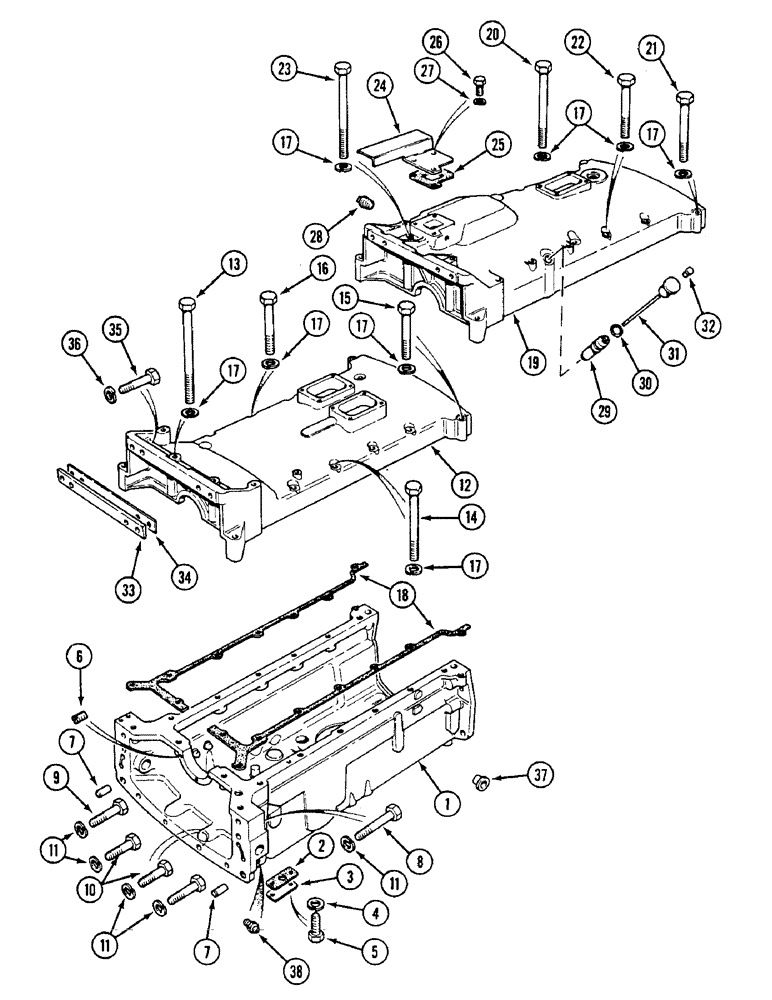

Запчасти Case IH 1594 (9-346) - REAR MAIN FRAME AND GEARBOX, COVERS (09) - CHASSIS/ATTACHMENTS

1

K954971

FRAME

- rear main (Two-wheel drive)

1шт.

1

K956327

FRAME

- rear main (MFD)

1шт.

2

K919279

GASKET

- cover plate

1шт.

3

K919278

COVER

PLATE - cover

1шт.

4

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

K603002

BOLT (SPREADER)

BOLT - 7/16 UNC x 7/8 inch

2шт.

6

K606229

SCREW

- 5/16 UNC x 3/8 inch, Order 178-446

3шт.

7

K900105

PIN

DOWEL - 5/8 x 1-7/16 inch

2шт.

8

K600816

BOLT

- 1/2 UNC x 3-1/2 inch

6шт.

9

K608808

BOLT

- 1/2 UNC x 2-1/4 inch, Order 326-840

2шт.

10

K608824

BOLT

- 1/2 UNC x 2 inch (MFD), Order 326-832

2шт.

10

K600806

BOLT

- 1/2 UNC x 2 inch (Two-wheel drive)

2шт.

11

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

10шт.

12

K956390

COVER

- gearbox (Synchromesh)

1шт.

13

K600829

BOLT

- 1/2 UNC x 6-3/4 inch

4шт.

14

K600821

BOLT

- 1/2 UNC x 4-3/4 inch, Order 413-876

4шт.

15

K600817

BOLT

- 1/2 x 3-3/4 inch

2шт.

16

K600816

BOLT

- 1/2 UNC x 3-1/2 inch

6шт.

17

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

12шт.

17

K14582

WASHER

- sealing

4шт.

18

K205303

GASKET

- gearbox cover

2шт.

19

K200816

COVER

- gearbox

1шт.

20

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

1шт.

20

K600829

BOLT

- 1/2 UNC x 6-3/4 inch

4шт.

20

K600816

BOLT

- 1/2 UNC x 3-1/2 inch

6шт.

21

K600818

BOLT (SPREADER)

BOLT - 1/2 UNC x 4 inch, Order 413-864

2шт.

22

K600822

BOLT

- 1/2 UNC x 5 inch

2шт.

23

K600824

BOLT

- 1/2 UNC x 5-1/2 inch

4шт.

24

K308400

COVER

PLATE - gearbox cover (With cab)

1шт.

24

K207780

COVER

PLATE - gearbox cover (Without cab)

1шт.

25

K207786

GASKET,0.25mm Thk

- cover plate

1шт.

26

K602803

BOLT

- 5/16 UNC x 3/4 inch

3шт.

26

K602803

BOLT

- 5/16 UNC x 3/4 inch

3шт.

27

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

28

K14518

PLUG

- 3/4 inch BSP

1шт.

29

K942348

SLEEVE

- dipstick (Without cab)

1шт.

30

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

31

K203608

DIPSTICK

- Power shift (Without cab)

1шт.

31

K205071

DIPSTICK

- Synchromesh, (Without cab)

1шт.

32

K210364

PIN

PLUG - dipstick hole (With cab)

1шт.

33

K205305

WEDGE

- spacing

1шт.

34

K205306

SHIM,.040" Thk

Cover .040" Thk

1шт.

35

K600810

BOLT

- 1/2 UNC x 2-1/2 inch

4шт.

36

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

37

353-11

PLUG,Cap, .610" OD

- tapered, 5/8 inch OD

58шт.

38

K22164

FITTING

- grease

1шт.
