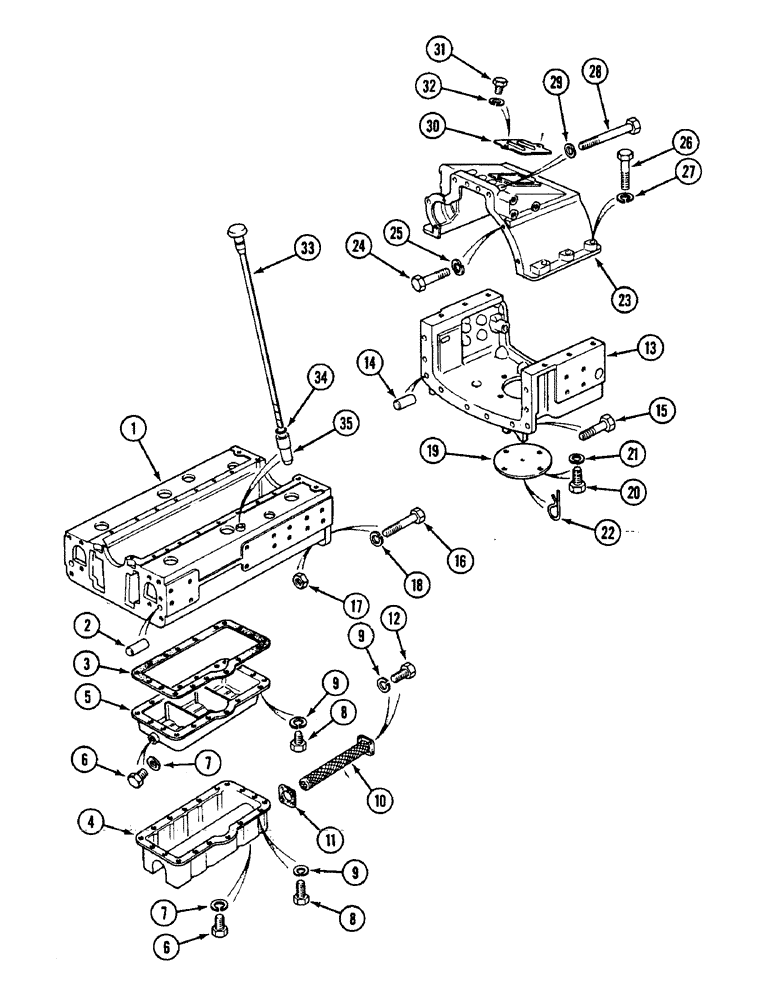

Запчасти Case IH 1594 (9-344) - FRONT MAIN FRAME AND CLUTCH HOUSING (09) - CHASSIS/ATTACHMENTS

1

K956546

FRAME

- main, front

1шт.

2

K622904

PIN

DOWEL - 5/8 x 1-9/16 inch

2шт.

3

K906429

GASKET

- sump cover

1шт.

4

K200926

SUMP

COVER - sump (MFD)

1шт.

5

K956548

SUMP

COVER - sump (Two-wheel drive)

1шт.

6

K623849

PLUG

- sump drain, 1/2 inch BSP

2шт.

7

K15143

WASHER

- sealing, 7/8 inch (22 mm)

2шт.

8

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

(MFD) Hex, 5/16"-18 x 1", G5, Full Thd

18шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Two-wheel drive)

18шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

18шт.

10

K200939

FILTER

SCREEN - filter (MFD)

1шт.

11

K200943

GASKET

- filter screen

1шт.

12

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

13

K956247

CLUTCH

HOUSING - clutch lower half

1шт.

14

K900105

PIN

DOWEL - 5/8 x 1-7/16 inch

2шт.

15

K601206

BOLT

- 5/8 UNC x 2-1/4 inch

4шт.

16

K601212

BOLT

- 5/8 UNC x 3 inch

4шт.

16

K601213

BOLT

- 3/8 UNC x 3-1/4 inch

1шт.

17

K607006

NUT

- hex, 5/8 inch NC

3шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

K919622

PLATE

COVER - clutch housing, lower

1шт.

20

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

22

K11933

PIN

- 1/8 x 5/8 inch, clutch housing drain

1шт.

23

K956435

CLUTCH

HOUSING - clutch, upper half (Without cab)

1шт.

23

K207314

CLUTCH

HOUSING - clutch, upper half (With cab)

1шт.

24

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

2шт.

24

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

24

K600414

BOLT

- 3/8 UNC x 2-3/4 inch

1шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

K600810

BOLT

- 1/2 UNC x 2-1/2 inch

6шт.

27

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

28

K600822

BOLT

- 1/2 UNC x 5 inch

4шт.

29

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

30

K904246

COVER

- clutch housing, upper

1шт.

31

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

K957178

DIPSTICK

- engine oil

1шт.

34

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4 inch (6 mm) ID

1шт.

35

K948224

SLEEVE

- engine dipstick

1шт.
