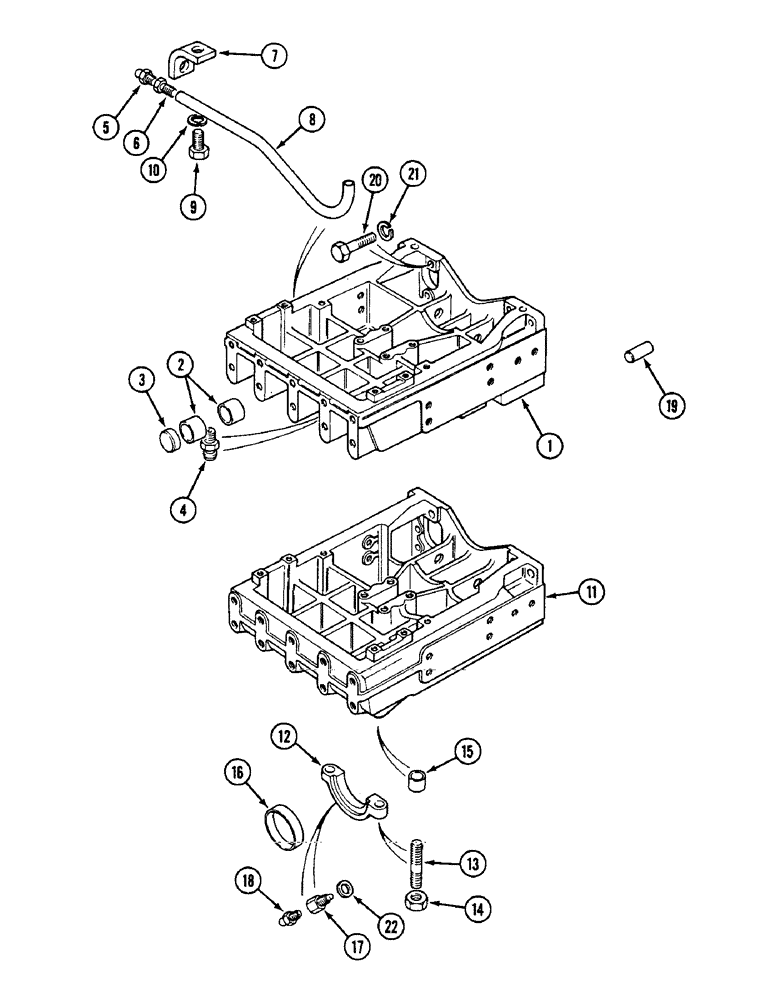

Запчасти Case IH 1594 (9-342) - FRONT FRAME EXTENSION (09) - CHASSIS/ATTACHMENTS

1

K956464

EXTENSION

- front, mainframe (Two-wheel drive)

1шт.

2

K15597

BUSHING

- main frame

4шт.

3

41-1626

PLUG,Cup, 1 5/8", Stainless

- core

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

5

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 19/32 inch

1шт.

6

K622255

FITTING

- grease

1шт.

7

K948809

BRACKET

- support, grease fitting

1шт.

8

K948808

TUBE

- lube, trunnion bearing

1шт.

9

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

11

K201571

AXLE SUPPORT

EXTENSION - front, mainframe (Prior to P.I.N. 11221501), Includes: Ref. 12 - 15

1шт.

11

K395164

AXLE SUPPORT

EXTENSION - front, mainframe (P.I.N. 11221501 and after), Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

13

K260224

STUD

- cap

4шт.

14

K965427

NUT

- cap

4шт.

15

K956979

BUSHING

DOWEL - ring

4шт.

16

K965265

BUSHING

- steel

2шт.

17

K965424

ADAPTER

SCREW - locating

2шт.

18

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

19

K622904

PIN

DOWEL - 5/8 x 1-9/16 inch

2шт.

20

K608824

BOLT

- 1/2 UNC x 2 inch, Order 326-832

11шт.

20

K608826

BOLT

- 1/2 UNC x 2-1/2 inch, Order 26-836

1шт.

21

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

12шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.
