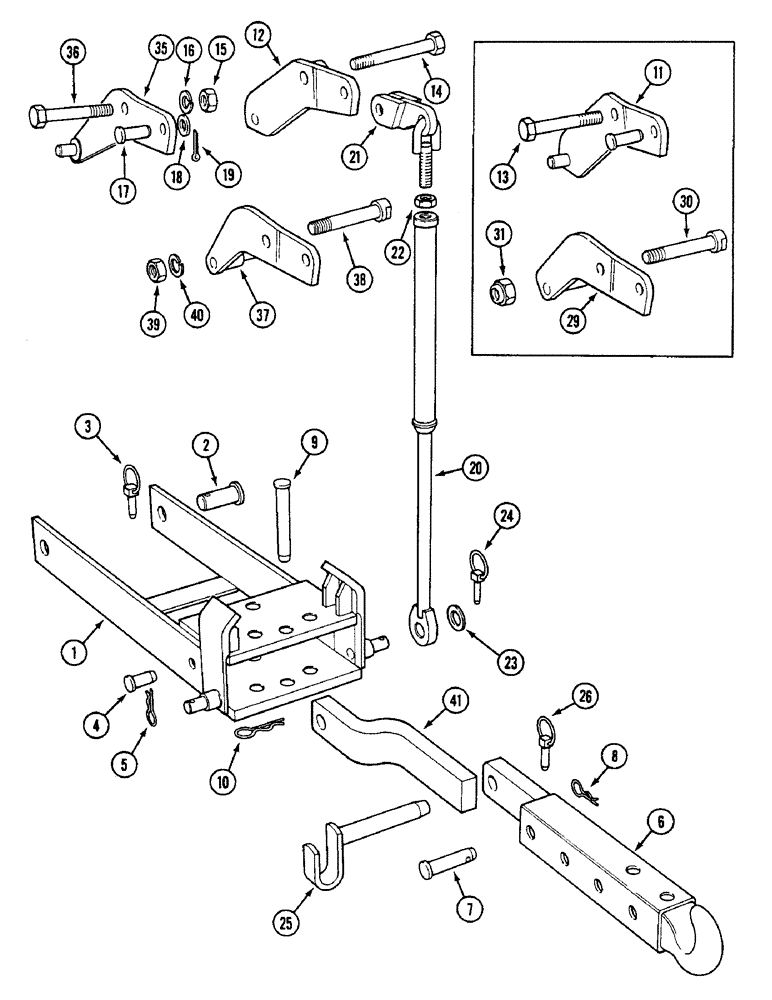

Запчасти Case IH 1594 (9-340) - PICK-UP HITCH, DRAWBAR AND FRAME, NOT NORTH AMERICA (09) - CHASSIS/ATTACHMENTS

UK4685

UNIT

HITCH ATTACHMENT - drawbar and pick-up (Replaces UK4654), See Figure 9-338, Includes: Ref. 1 - 12

1шт.

1

K206842

SUPPORT

FRAME - drawbar

1шт.

2

K206844

PIN

- pivot

2шт.

3

1328218C1

LINCH PIN,11mm OD

- quick attachable (Replaces K920359)

2шт.

4

K206846

PIN

- frame locking

2шт.

5

K201794

SPRING

CLIP - spring (Hair type)

2шт.

6

K206376

HOOK

DRAWBAR AND HOOK - hitch

1шт.

7

K206841

PIN

- clevis

1шт.

8

K201794

SPRING

CLIP - spring (Hair type)

1шт.

9

K206840

PIN

-, Serial Range: drawbar-frame

2шт.

10

K306531

CLIP

- drawbar pin (Hair type)

2шт.

11

K206847

ARM

- lift, left-hand

1шт.

12

K206848

ARM

- lfit, right-hand, (Without support cylinder fitting)

1шт.

13

K206849

BOLT

- M20 x 139 mm, ramshaft lever, left-hand, Includes: Ref. 15 - 26

2шт.

14

K206850

BOLT

- M20 x 161 mm, ramshaft lever, right-hand, Includes: Ref. 15 - 26

2шт.

15

K651511

NUT

- M20

2шт.

16

K651832

WASHER

- lock, 20 mm

2шт.

17

K206851

PIN

- link

2шт.

18

K19476

WASHER

- 3/4 inch (19 mm)

2шт.

19

K201794

SPRING

CLIP - spring

2шт.

20

K206856

ROD

- lift, drawbar

2шт.

21

K206852

BOLT

EYE BOLT AND LINK ASSEMBLY - lift rod

2шт.

22

K651557

NUT

- lock, M20

2шт.

23

K19497

WASHER

- 7/8 inch (22 mm)

2шт.

24

K210316

LINCH PIN

PIN ASSEMBLY - linch (Replaces K66408)

2шт.

25

K916566

PIN

- hitch

1шт.

26

1328218C1

LINCH PIN,11mm OD

- quick attachable (Replaces K920359)

1шт.

29

K207769

ARM

- right-hand (With support cylinder fitting) (Order K311800)

1шт.

30

K207826

PIN

BOLT - 7/8 UNC x 5-5/8 inch (Used with K207769)

1шт.

31

425-1414

JAM NUT,Jam, 7/8"-9, G5

- lock, 7/8 inch UNC (Use with K207826)

1шт.

35

K311801

ARM

- lift, left-hand (Replaces K206847) (Replaces K206847)

1шт.

36

K311799

BOLT

- M20 x 130 mm (Use with K206849) (Use with K206849)

1шт.

37

K311800

ARM

- lift, right-hand (With support cylinder fitting) (Replaces K207769)

1шт.

38

K311798

BOLT

- M20 x 163 mm (Used with K311800) (Use with K311800)

1шт.

39

K651511

NUT

- M20 (Use with K311798)

1шт.

40

K651832

WASHER

- lock, 20 mm

1шт.

41

K206845

PLATE

CLEVIS - drawbar

1шт.
