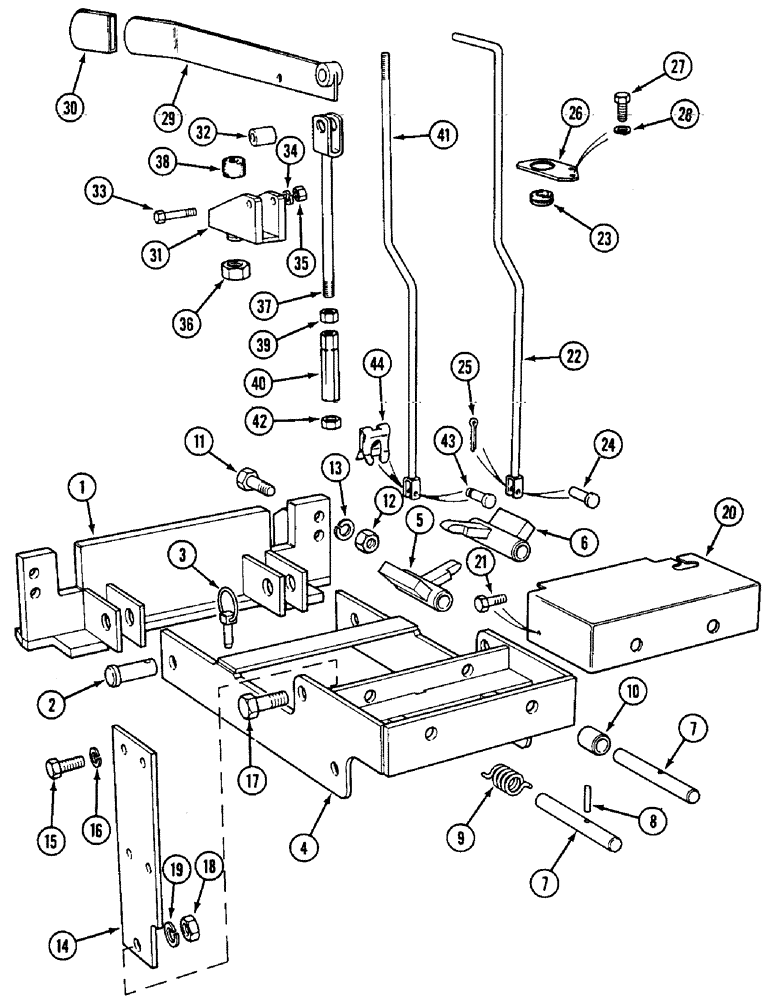

Запчасти Case IH 1594 (9-338) - PICK-UP HITCH, SUPPORT BRACKET AND FRAME, NOT NORTH AMERICA (09) - CHASSIS/ATTACHMENTS

UK4685

UNIT

HITCH ATTACHMENT - drawbar and pick-up (Replaces UK4654), See Figure 9-340, Order components, Includes: Ref. 1 - 21

1шт.

1

K206835

BRACKET

- support

1шт.

2

K206884

PIN - pivot

2шт.

3

1328218C1

LINCH PIN,11mm OD

- quick attachable (Replaces K920359)

2шт.

4

K206843

FRAME

- drawbar (Without support cylinder fitting)

1шт.

4

K210384

FRAME

- drawbar (With support cylinder fitting) (Replaces K308355)

1шт.

5

K206858

PAWL

LATCH - left-hand

1шт.

6

K206859

PAWL

LATCH - right-hand

1шт.

7

K206857

PIN

- latch pivot

2шт.

8

K623894

PIN

- roll, 5/16 x 1-1/4 inch

2шт.

9

K206860

SPRING

- latch

1шт.

10

K206861

BUSHING

SPACER - latch pin

1шт.

11

K601204

BOLT

- 5/8 UNC x 2 inch

4шт.

12

K607006

NUT

- hex, 5/8 inch NC

4шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

K204738

PLATE

- side support

2шт.

15

K603308

BOLT (SPREADER)

BOLT - 5/8 UNC x 1-3/4 inch

8шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

17

K206836

BOLT

- M20 x 57 mm

2шт.

18

K651511

NUT

- M20, Order 825-1420

2шт.

19

K651832

WASHER

- lock, 20 mm, Order 892-11020

2шт.

20

K206862

COVER

- latch mechanism

1шт.

21

K652474

BOLT

- M6 x 12 mm

2шт.

22

K206190

ROD

- release (Without cab)

1шт.

23

K627729

GROMMET

- 7/8 inch (22 mm)

1шт.

24

K625956

PIN

- clevis, 5/16 x 7/8 inch

1шт.

25

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

26

K304854

GUIDE

- latch rod (Without cab)

1шт.

27

K612731

SCREW

- 1/4 UNF x 1/2 inch

2шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

K308078

LEVER

- hand (With cab)

1шт.

30

K308082

SLEEVE

- rubber, hand lever

1шт.

31

K308081

BRACKET

- hand lever support

1шт.

32

K627052

BUSHING

SPACER - lever pivot

1шт.

33

K600526

BOLT

- 3/8 UNC x 1-7/8 inch, Order 413-630

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

K616987

NUT

- 3/4 inch UNF

1шт.

37

K207634

ROD

- upper

1шт.

38

K626462

DAMPER

BUSHING - rubber

1шт.

39

K617282

SPECIAL NUT

- lock, 3/8 inch UNF left-hand thread

1шт.

40

K950846

NUT

SLEEVE - adjusting, 3/8 inch UNF

1шт.

41

K207633

ROD

- lower

1шт.

42

K616982

NUT

- 3/8 inch UNF

1шт.

43

K625936

CLEVIS

PIN - clevis

2шт.

44

K659105

CLIP

- link pin

2шт.
