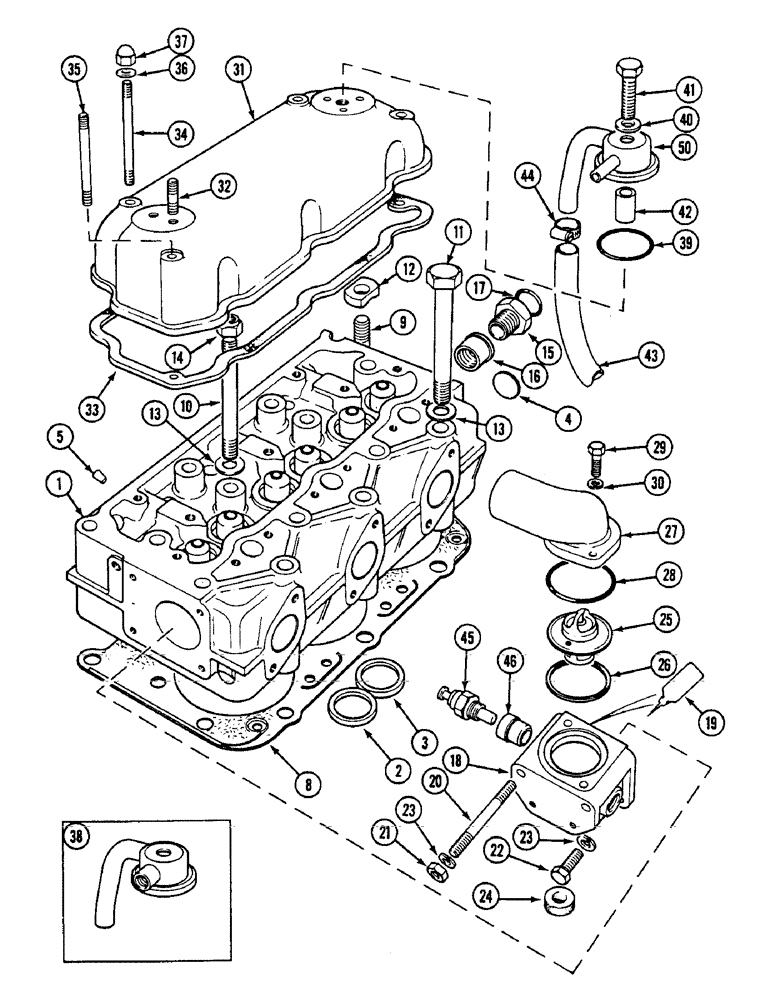

Запчасти Case IH 1594 (2-14) - FRONT CYLINDER HEAD (02) - ENGINE

1

K965046

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, front, Includes: Ref. 2 - 5

1шт.

2

K921246

INSERT

- intake valve seat

3шт.

3

K925019

INSERT

- exhaust valve seat

3шт.

4

41-1616

PLUG,Cup, 1", Stainless

1шт.

5

K900431

PLUG

- taper

3шт.

8

K952527

GASKET

GASKET - cylinder head

1шт.

9

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC/UNF x 5-5/16 inch

3шт.

10

K906538

STUD

- UNC/UNF x 4-7/8 inch

4шт.

11

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

8шт.

12

K918692

WASHER

- 1/2 inch (13 m) special

2шт.

13

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

- flat, 1/2 inch (13 mm)

13шт.

14

K617594

NUT

- 1/2 inch UNF

7шт.

15

K940268

FITTING

CONNECTOR - water passage

1шт.

16

K940267

BUSHING

- threaded

1шт.

17

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

1шт.

18

K200818

THERMOSTAT

HOUSING - thermostat, Order K262212

1шт.

19

K965739

FLANGE

LOCTITE - No. 510, (Order Locally)

1шт.

20

K608162

STUD

- 5/16 UNC x 4-1/2 inch

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

22

K600326

SCREW

BOLT - 5/16 UNC x 1 inch

2шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

24

K915330

SEALING RING

SEAL - rubber, pump to cylinder head

1шт.

25

K208039

THERMOSTAT

- water temperature, 96 degrees C (Replaces K917962)

1шт.

26

K200225

GASKET,0.81mm Thk

- thermostat

1шт.

27

K201862

OUTLET

TUBE - outlet, water

1шт.

28

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

29

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

30

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

31

K206795

CYLINDER

COVER ASSEMBLY - cylinder head, Includes: Ref. 32

1шт.

32

K608133

STUD

- 5/16 UNC x 1-1/8 inch

2шт.

33

K918689

GASKET,3.97mm Thk

- head cover

1шт.

34

K608116

STUD

- 5/16 UNC x 3-11/16 inch

2шт.

35

K608110

STUD

- 5/16 UNC x 3-1/8 inch

2шт.

36

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- sealing, 5/16 inch (8 mm)

4шт.

37

234-10431

CROWN NUT,Crown, 5/16"-18

4шт.

39

K626901

O-RING,40554" ID x 40575" OD x 0.12"

O-RING - 1-11/16 inch (43 mm) ID

1шт.

40

K626443

WASHER

- copper, 1/2 inch (13 mm) copper

1шт.

41

K603108

SCREW

BOLT - axle housing, 1/2 UNC x 1-1/2 inch

1шт.

42

K945433

BUSHING

SPACER - breather

1шт.

43

K206741

PIPE

HOSE - breather

1шт.

44

K622024

CLAMP

CLIP - hose, 3/4 inch (19 mm)

1шт.

45

K311943

TEMPERATURE SENDER

SENDER - engine temperature

1шт.

46

K203464

ADAPTER

- sender, 5/8 UNF x 1/2 inch NPT

1шт.

K965964

KIT, ENGINE TOP GASK

GASKET KIT - cylinder heads, front and rear

1шт.

50

K210371

PLATFORM

COVER - engine breather (Engine P.I.N. 11468040 and after)

1шт.
