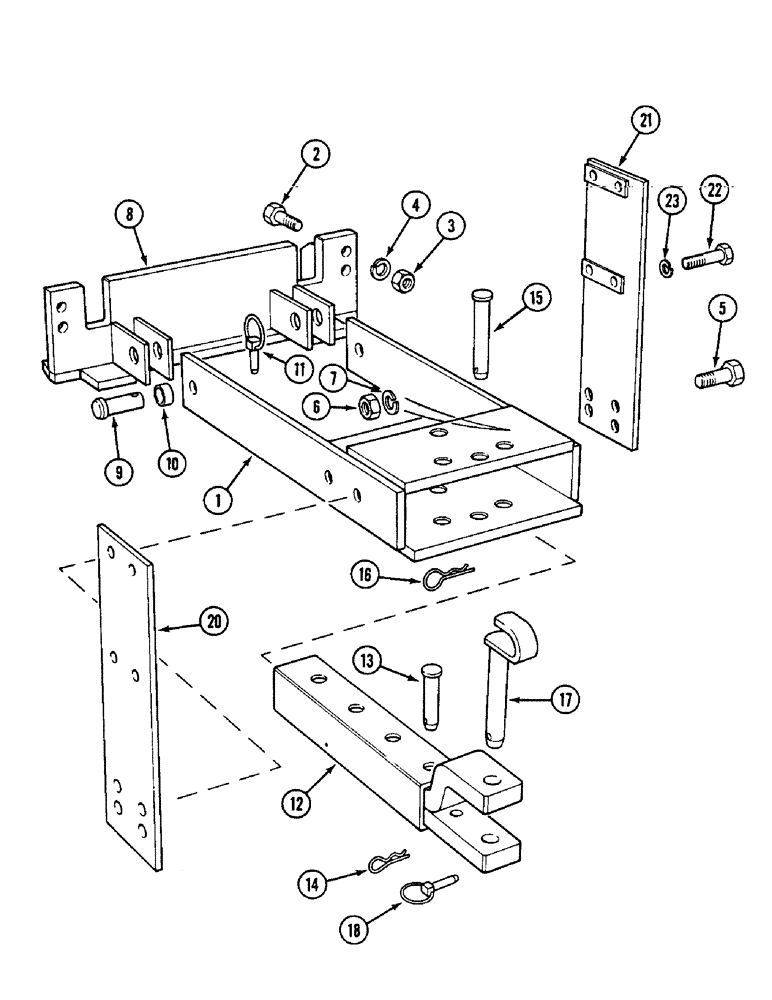

Запчасти Case IH 1594 (9-334) - DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

K206834

SUPPORT

FRAME - drawbar

1шт.

2

K601204

BOLT

- 5/8 UNC x 2 inch

4шт.

3

K607006

NUT

- hex, 5/8 inch NC

4шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

K206839

BOLT

- M20 x 55 mm

4шт.

6

K651511

NUT

- M20, Order 825-1420

4шт.

7

K651832

WASHER

- lock, 20 mm, Order 892-11020

4шт.

8

K206835

BRACKET

- support

1шт.

9

K206844

PIN

- pivot

2шт.

10

K206837

BUSHING

SPACER - pivot pin

2шт.

11

1328218C1

LINCH PIN,11mm OD

- quick attachable

2шт.

12

K206375

DRAWBAR

- towing, Includes: clevis

1шт.

K206845

PLATE

CLEVIS - drawbar

1шт.

13

K206841

PIN

- clevis

1шт.

14

K201794

SPRING

CLIP - spring (Hair type)

1шт.

15

K206840

PIN

-, Serial Range: drawbar-frame

2шт.

16

K306531

CLIP

- drawbar pin (Hair type)

2шт.

17

K916566

PIN

- hitch

1шт.

18

1328218C1

LINCH PIN,11mm OD

- quick attachable

1шт.

20

K307596

PLATE

- left-hand

1шт.

21

K307597

PLATE ASSY.

PLATE - right-hand (Without support cylinder fitting)

1шт.

21

K311555

PLATE ASSY.

PLATE - right-hand, (With support cylinder fitting)

1шт.

22

K603314

SCREW

BOLT - 5/8 UNC x 2-1/2 inch

8шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
