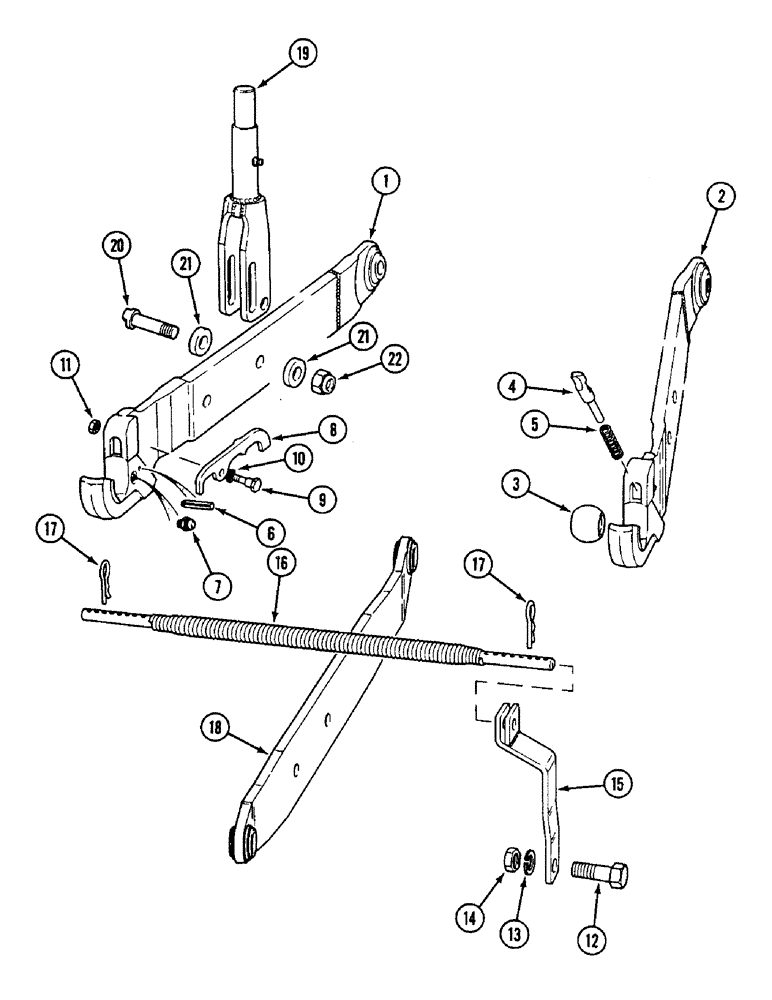

Запчасти Case IH 1594 (9-328) - LOWER LINKS, STANDARD AND JEFFES TYPE (09) - CHASSIS/ATTACHMENTS

1

K201692

LINK

- lower left-hand

1шт.

2

K201693

LINK

ASSEMBLY - lower right-hand, Jeffes type, Includes: Ref. 3 - 14

1шт.

3

K65663

BALL

- cross shaft

1шт.

4

K201723

PIN

- retaining

1шт.

5

K201724

SPRING

- retaining pin

1шт.

6

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

7

K201726

FITTING

- grease, 1/4 inch BSF

1шт.

8

K201727

LEVER

- release, left-hand link

1шт.

8

K201728

LEVER

- release, right-hand link

1шт.

9

K201729

BOLT

- 5/16 inch Whitworth

1шт.

10

K201730

SPRING

WASHER - lock, 7/16 inch

1шт.

11

K201731

NUT

- self locking, 5/16 inch Whitworth

1шт.

12

K601604

BOLT

- 7/8 UNC x 2-1/2 inch, Order 113-810

2шт.

13

K11713

WASHER

- lock, 7/8 inch, Order 492-11088

2шт.

14

K607008

NUT

- 7/8 inch UNC, Order 425-1014

2шт.

15

K201797

BRACKET

- adjustable coupler

2шт.

16

K201796

COUPLING

COUPLER - adjustable

1шт.

17

K201794

SPRING

CLIP - spring (Hair type)

2шт.

18

K206962

LINK

- lower, left and right-hand, standard

2шт.

19

K201549

FORK

NUT - slotted adjusting

2шт.

20

K201540

PIN

BOLT - 7/8 inch UNC

2шт.

21

K201541

DISC

COLLAR - used with K201523

4шт.

22

K607465

NUT

- self-locking, 7/8 inch UNC

2шт.
