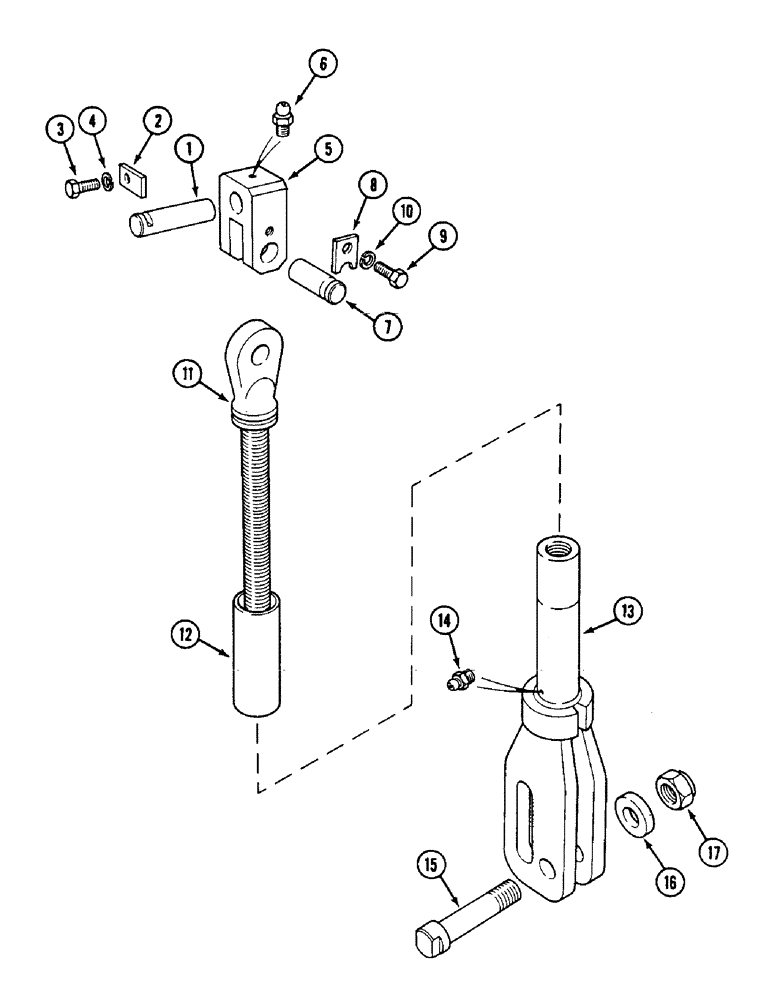

Запчасти Case IH 1594 (9-326) - LIFT LINK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

K948366

PIN

- ramshaft arm

1шт.

2

K948367

PLATE

- locating

1шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

REF

INSTRUCTION

LINK ASSEMBLY - lift, Order components, Includes: Ref. 5 - 14

1шт.

5

K201543

BLOCK

FORK END - leveling lever

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

7

K201544

PIN

- 7/8 x 2-1/2 inch

1шт.

8

K201545

PLATE

- pin locating

1шт.

9

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

K965944

SCREW

ASSEMBLY - adjustment, lift link, Includes: Ref. 12

1шт.

12

K940509

TUBE,1.75" DIA x 7.125" L

- 1-3/8 x 7-1/8 inch

1шт.

13

K201549

FORK

NUT - slotted adjusting

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

15

K201540

PIN

BOLT - 7/8 inch UNC

1шт.

16

K201541

DISC

COLLAR - used with K201523

2шт.

17

K607465

NUT

- self-locking, 7/8 inch UNC

1шт.
