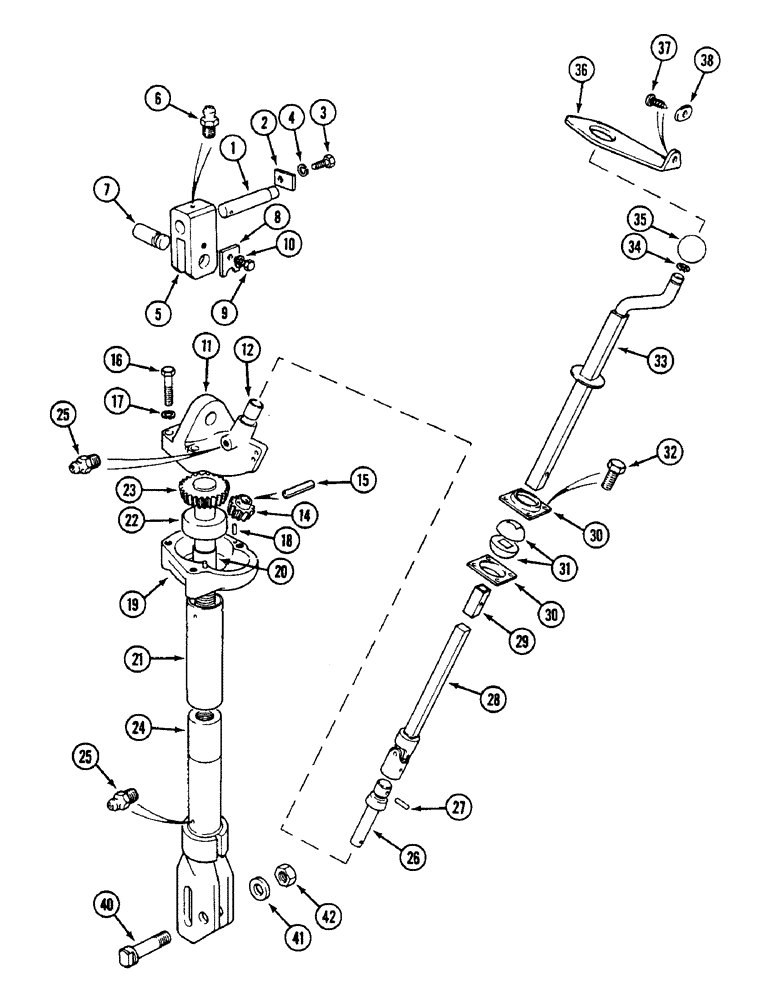

Запчасти Case IH 1594 (9-324) - LEVELING LEVER ASSEMBLY, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K948366

PIN

- ramshaft arm

1шт.

2

K948367

PLATE

- locating

1шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

K201686

LEVER

ASSEMBLY - leveling, Order components, Includes: Ref. 5 - 27

1шт.

5

K201543

BLOCK

FORK END - leveling lever

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

7

K201544

PIN

- 7/8 x 2-1/2 inch

1шт.

8

K201545

PLATE

- pin locating

1шт.

9

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

K965943

CAP

ASSEMBLY - gear housing, Includes: Ref. 12

1шт.

12

K621340

BUSHING

- lever

2шт.

14

K919769

GEAR

PINION - bevel

1шт.

15

K623946

PIN

- roll, 5/32 x 15/16 inch

1шт.

16

K600606

BOLT

- 7/16 UNC x 2 inch

4шт.

17

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

18

K32063

PIN

DOWEL - 3/16 x 1/2 inch

2шт.

19

K964964

HOUSING

ASSEMBLY - gear, Includes: Ref. 20 & 21

1шт.

20

K621302

BUSHING

- leveling screw

1шт.

21

K940510

TUBE,1.75" ID x 6.187" L

- shaft, 1-3/4 x 6-1/4 inch

1шт.

22

K620193

THRUST BEARING

BEARING - thrust

1шт.

23

K948664

GEAR

SCREW - leveling, 1-1/8 Whitworth x 13-3/4 inch

1шт.

24

K201549

FORK

NUT - slotted adjusting

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

26

K954077

SHAFT

- bevel pinion

1шт.

27

K691356

PIN

- roll, 5 x 25 mm

1шт.

K307644

HANDLE

ASSEMBLY - telescopic (With cab), Includes: Ref. 28 - 35

1шт.

28

K303648

ARM

SPINDLE - with universal joint

1шт.

29

K303531

SLEEVE

BUSHING - plastic

1шт.

30

K303518

CASE

SOCKET - ball

1шт.

31

K303520

BALL JOINT

BALL - nylon, half

2шт.

32

K653339

SCREW,Hex, M5 x 0.8 x 12mm

- M5 x 12 mm

4шт.

33

K307645

TOP

SPINDLE - upper (With handle)

1шт.

34

A10916

RING, SNAP

RING - retaining

1шт.

35

K919763

BUTTON

KNOB - lever

1шт.

36

K303814

RUBBER

STRAP - retaining, handle (With cab)

1шт.

37

K652753

SCREW

- M8 x 16 mm

1шт.

38

K303630

BUSHING

WASHER - 8 mm

1шт.

40

K201540

PIN

BOLT - 7/8 inch UNC

1шт.

41

K201541

DISC

COLLAR - used with K201523

2шт.

42

K607465

NUT

- self-locking, 7/8 inch UNC

1шт.
