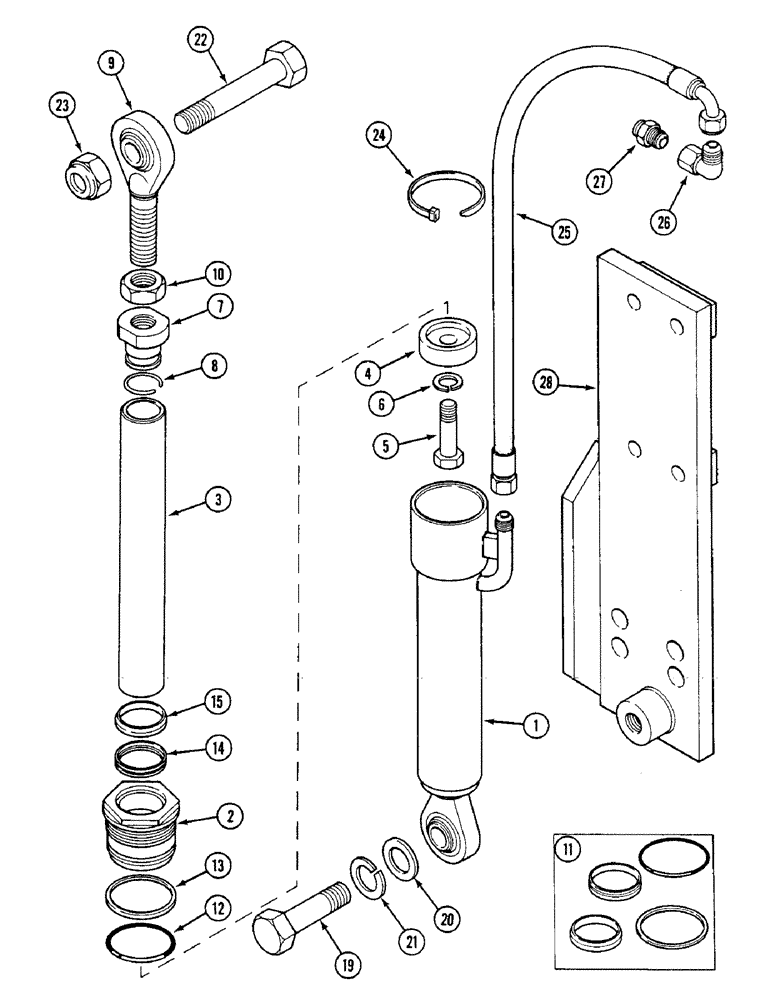

Запчасти Case IH 1594 (8-320) - SUPPORT CYLINDER - LINKAGE (08) - HYDRAULICS

REF

INSTRUCTION

ATTACHMENT - linkage support cylinder, Order components, Includes: Ref. 1 - 28

1шт.

K207976

CYLINDER

ASSEMBLY - linkage support, Includes: Ref. 1 - 15

1шт.

1

K207977

CYLINDER

HOUSING - support cylinder

1шт.

2

K776628

SLEEVE

- cylinder housing

1шт.

3

K210094

ROD

- piston

1шт.

4

K207695

CAP

- piston rod

1шт.

5

K601208

BOLT

- 5/8 UNC x 2-1/2 inch

1шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

K210140

ROD

BUSHING - piston rod

1шт.

8

101-11137

SNAP RING,#137, 1.291", Ext

RING - clutch release spring return

1шт.

9

K210396

HOUSING - ball, piston rod (Replaces K210095)

1шт.

10

K617039

NUT

- lock, 1 inch UNF, 1 inch UNF

1шт.

11

K728443

SEAL

KIT - seals, Order components, Includes: Ref.12 - 15

1шт.

12

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

13

K691234

SEAL,66.04mm ID x 70.1mm OD x 1.57mm Thk

- back-up, 2-1/2 inch (64 mm) ID

1шт.

14

K692194

SEAL

RING - seal, 1-3/4 inch (44 mm) ID

1шт.

15

K691846

RING

- scraper, 1-3/4 inch (44 mm) ID

1шт.

19

K601610

BOLT

- 7/8 UNC x 3-1/2 inch (Without pick up hitch)

1шт.

19

K601608

BOLT

- 7/8 UNC x 3 inch (With pick up hitch)

1шт.

20

K19497

WASHER

- 7/8 inch (22 mm)

1шт.

21

K11713

WASHER

- lock, 7/8 inch

1шт.

22

K207826

PIN

BOLT - 7/8 UNC x 5-5/8 inch (Used with K207769)

1шт.

23

K607308

NUT

- self-locking, 7/8 inch UNC (Used with K207826)

1шт.

22

K311798

BOLT

- M20 x 163 mm (Used with K311800)

1шт.

23

K651511

NUT

- M20 (Used with K311798)

1шт.

24

K621734

CABLE

CLIP - cable

1шт.

25

K924211

HOSE

TUBE - flexible, 3/4 UNF x 45 inch

1шт.

26

K622115

NUT

ELBOW - swivel nut, 3/4 inch UNF

1шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

28

K311555

PLATE ASSY.

PLATE - drawbar, right-hand (With support cylinder) (Replaces K310422)

1шт.
