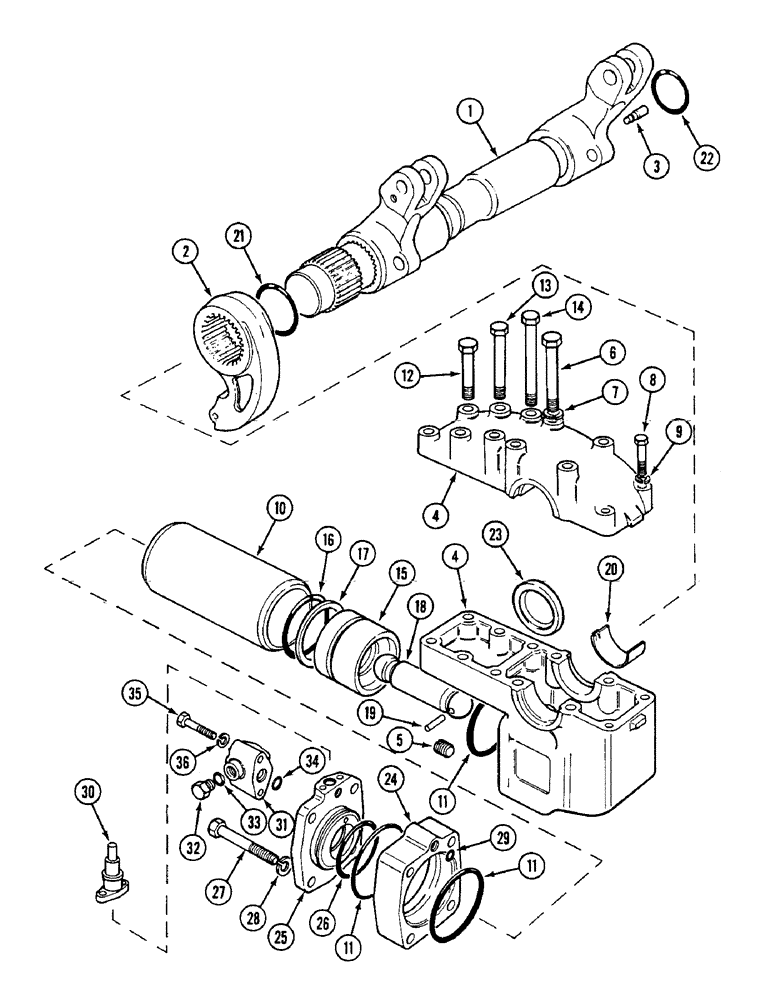

Запчасти Case IH 1594 (8-318) - RAMSHAFT AND RAM CYLINDER (08) - HYDRAULICS

1

K956254

SHAFT

RAMSHAFT ASSEMBLY - hitch, Includes: Ref. 2 & 3

1шт.

2

K926691

ARM

LEVER - ram

1шт.

3

K956256

PIN

- ramshaft

1шт.

4

K964866

HOUSING

BRACKET AND CAP ASSEMBLY - left-hand, Includes: Ref. 5 - 9

1шт.

5

K204762

SCREW

RESTRICTOR - ramshaft bracket

1шт.

6

K608866

BOLT

- 5/8 UNC x 4-3/4 inch

4шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

K600409

BOLT

- 3/8 UNC x 2-1/8 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

K926690

CYLINDER

SLEEVE - ram cylinder

1шт.

11

238-6248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

3шт.

12

K608864

BOLT

- 5/8 UNC x 4-1/4 inch, Order 26-1068

2шт.

13

K608868

BOLT

- 5/8 UNC x 5-1/4 inch, Order 326-1084

2шт.

14

K608872

BOLT

- 5/8 UNC x 6-1/4 inch, Order 326-10100

6шт.

15

K926698

PISTON

- ram cylinder

1шт.

16

238-6342

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

- 3-5/8 inch

1шт.

17

K623683

RING

- back-up, 3-5/8 inch (92 mm) ID

1шт.

18

K928196

ROD

- connecting

1шт.

19

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

20

K928272

BEARING

- ramshaft, halves

4шт.

21

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

22

238-5331

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

- 2-3/4 inch

1шт.

23

K928433

DISC

- sealing

1шт.

24

K944540

SUPPORT

HOUSING - cylinder body

1шт.

25

K944534

COVER

- end, ram cylinder

1шт.

26

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

27

K601322

BOLT

- 5/8 UNC x 13 inch

4шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

30

K964867

VALVE

ASSEMBLY - dump, See Figure 8-263

1шт.

31

K206893

PIPE FITTING

CONNECTOR -, Serial Range: tube-cylinder

1шт.

32

K920826

O-RING

PLUG - 3/4 inch UNF

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

34

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

35

K600414

BOLT

- 3/8 UNC x 2-3/4 inch (Power shift)

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.
