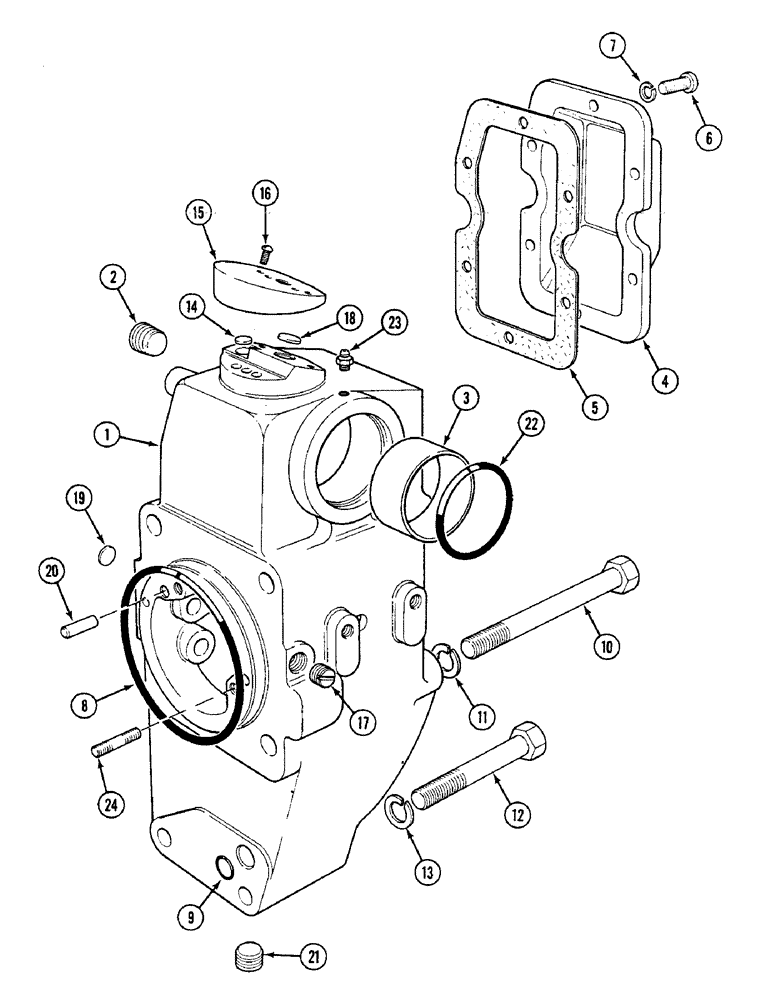

Запчасти Case IH 1594 (8-316) - RAMSHAFT BRACKET (08) - HYDRAULICS

1

K262259

HOUSING

BRACKET - ramshaft, right-hand (Replaces K205744)

1шт.

2

K14596

PLUG

- taper, high clearance, 1/2 inch BSP

1шт.

3

K928271

BUSHING

- ramshaft

1шт.

4

K956300

COVER

- bracket

1шт.

5

K956301

GASKET

- cover

1шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Order 413-516 Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, Order 492-11031

6шт.

8

238-6248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

K601381

BOLT

- 5/8 UNC x 8-1/4 inch, Order 13-10132

4шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

K600818

BOLT (SPREADER)

BOLT - 1/2 UNC x 4 inch (With cab), Order 413-864

2шт.

13

K19484

LOCK WASHER

WASHER - lock, 1/2 inch, Order 492-11050

2шт.

14

K923237

SKID/SHOE

PAD - breather

1шт.

15

K928282

INDICATOR

PANEL - indicator

1шт.

16

K614943

SCREW

- No. 10 UNF

2шт.

17

K616423

SCREW

PLUG - 9/16 inch UNF

1шт.

18

K623816

PLUG

- core, 1/2 inch (13 mm)

1шт.

19

172529

PLUG

- 5/8 inch

4шт.

20

K24853

PIN

DOWEL - locating, 1/4 x 11/16 inch

2шт.

21

K606409

SCREW

PLUG - 3/4 inch

1шт.

22

238-5331

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

- 2-1/2 inch

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

24

K608143

STUD

- 5/16 UNC x 1-1/2 inch

2шт.
