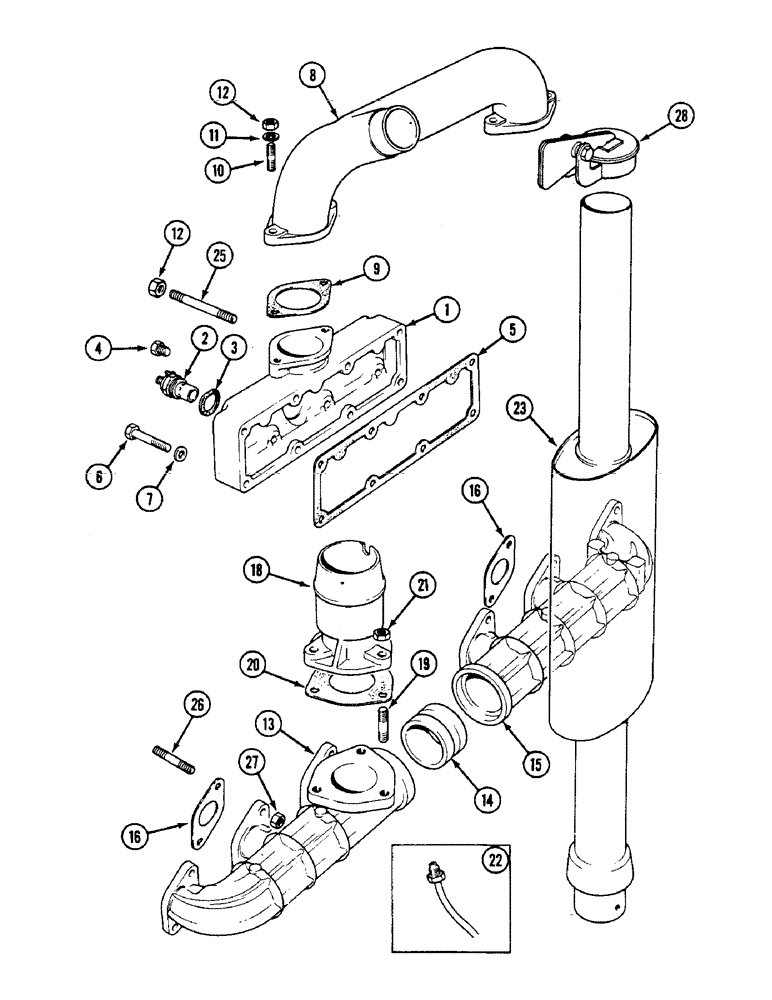

Запчасти Case IH 1594 (2-12) - MANIFOLDS AND MUFFLER (02) - ENGINE

1

K947257

MANIFOLD

- intake

2шт.

2

K928523

GLOW PLUG

THERMOSTART - fuel, Glo-plug (CAV 1854102)

2шт.

3

K626957

WASHER

- sealing 7/8 inch (22 mm)

2шт.

4

K609691

PLUG

- 1/8 inch BSP (Replaces K19591)

1шт.

5

K262736

GASKET

2шт.

6

K600209

BOLT

- 5/16 UNC x 2 inch

10шт.

6

K600213

BOLT

- 5/16 UNC x 2-1/2 inch

4шт.

7

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

16шт.

8

K953591

FITTING

TUBE - connecting, manifolds

1шт.

9

K947258

GASKET

2шт.

10

K608120

STUD

- 5/16 UNC x 1-3/8 inch

3шт.

10

K608142

STUD

- 5/16 UNC x 2-3/16 inch

1шт.

11

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

4шт.

13

K917852

MANIFOLD

- exhaust, front

1шт.

14

K917855

SLEEVE

- connecting

1шт.

15

K917853

MANIFOLD

- exhaust, rear

1шт.

16

K907344

MANIFOLD GASKET

- exhaust manifold

6шт.

18

K200599

FLANGE

- exhaust

1шт.

19

K608201

STUD

- 3/8 UNC x 1-5/8 inch

3шт.

20

K912441

GASKET

- manifold

1шт.

21

425-106

NUT,3/8"-16, Cl 5

3шт.

22

K917523

PIPE

- exhaust manifold drain, early tractors

1шт.

23

K304708

MUFFLER

Includes: arrestor, clamp, and adapter

1шт.

23

A176172

MUFFLER

- spark arrestor, Includes: arrestor, clamp, and adapter

1шт.

A135428

ARRESTER

ARRESTOR - spark (Not shown)

1шт.

A135474

CLAMP

- (Not shown)

1шт.

A176173

ADAPTER

ADAPTOR - (Not shown)

1шт.

25

K608173

STUD

- 5/16 UNC x 3-1/4 inch

2шт.

26

K608203

STUD

- inlet manifold, 3/8 NC x 1-7/16 inch

12шт.

27

425-106

NUT,3/8"-16, Cl 5

12шт.

28

A7479

CAP

- rain

1шт.
