Запчасти Case IH 1594 (8-314) - REMOTE VALVE ASSEMBLIES (08) - HYDRAULICS

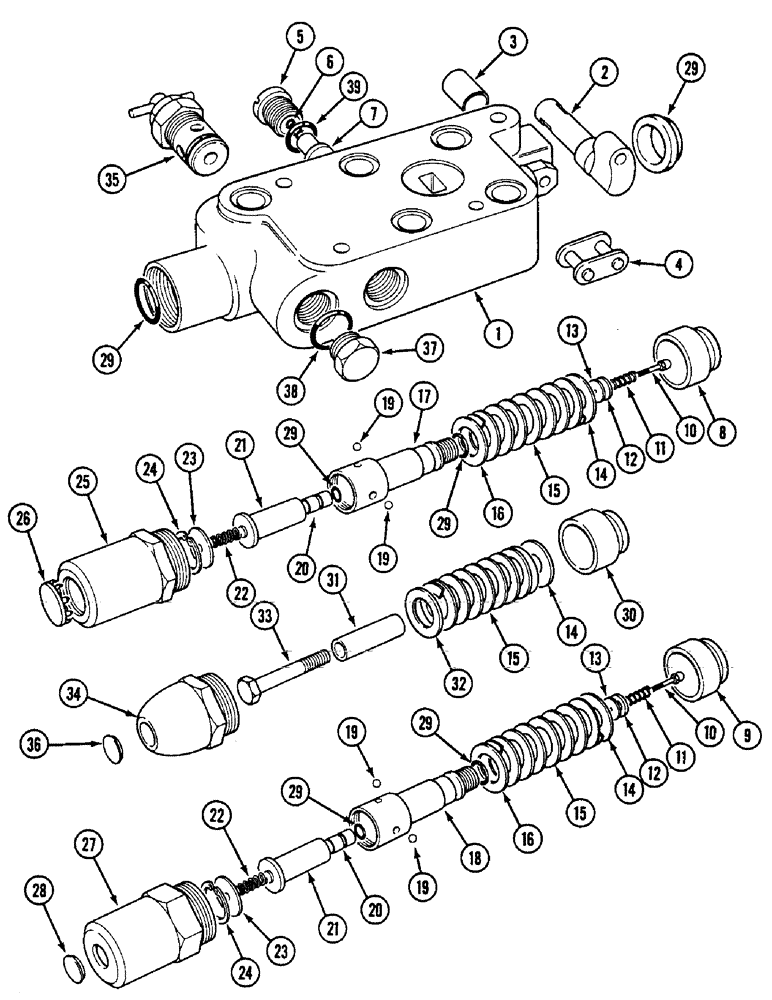

Схема запчастей Case IH 1594 - (8-314) - REMOTE VALVE ASSEMBLIES (08) - HYDRAULICS
21
7
29
3
34
37
15
29
22
32
26
16
13
29
4
19
10
29
29
18
15
24
11
21
24
20
23
1
14
9
10
15
5
31
16
25
28
19
30
22
13
14
29
2
23
19
12
14
20
6
33
12
19
27
38
35
39
17
11
8
36

Артикул

Название

Примечание

Количество

UK5024

VALVE

ATTACHMENT - detented, Order K956421

1шт.

UK5025

VALVE

ATTACHMENT - spring centered, Order K206438

1шт.

K204014

VALVE

ASSEMBLY - detented with float, Includes: Ref. 1 - 39

1шт.

1

K956421

VALVE

ASSEMBLY - detented, Includes: Ref. 2 - 39

1шт.

1

K206438

VALVE

ASSEMBLY - spring centered, Includes: Ref. 2 - 39

1шт.

1

K204014

VALVE

ASSEMBLY - detented with float, Includes: Ref. 2 - 39

1шт.

2

K965796

LEVER

SPINDLE - valve

1шт.

3

K965797

BUSHING

- valve body

2шт.

4

H63057

LINK

-, Serial Range: spindle-spool

1шт.

5

K965740

PLUG

- plunger, non-return valve

1шт.

6

K962067

SPRING

- plunger

1шт.

7

FH730366

PLUNGER

POPPET - load check valve

1шт.

8

K962060

BUSHING

- body (Detented)

1шт.

9

K261631

BUSHING

- body (With float)

1шт.

10

K965834

VALVE POPPET

PLUNGER - spool, detent valve (Detented or with float)

1шт.

11

K963580

SPRING

- detent (Detented or with float)

1шт.

12

K962080

SHIM,.010" Thk

(0.25 mm) (Detented or with float) .010" Thk

1шт.

12

K962081

SHIM,.005" Thk

(0.12 mm) (Detented or with float) .005" Thk

1шт.

13

K964499

PLATE

RESTRICTOR - plunger (Detented or with float)

1шт.

14

K962082

DISC

WASHER - spool centering spring

1шт.

15

H57067

SPRING

- retainer

1шт.

16

K962078

WASHER

- spring (Detented or with float)

1шт.

17

K964500

RETAINER

- spool detent (Detented)

1шт.

18

K261632

RETAINER

- detent (With float)

1шт.

19

K11483

BALL

BOLT - steel (Detented or with float)

3шт.

20

K962071

PISTON

- detent release (Detented or with float)

1шт.

21

K963574

PLUNGER

- detent release (Detented or with float)

1шт.

22

K962073

SPRING

- detent release (Detented or with float)

1шт.

23

K962079

WASHER

- detent release (Detented or with float)

1шт.

24

100-2175

SNAP RING,0.75", Int, #75

Ring, Snap, , Detented or with float 0.75", Int, #75

1шт.

25

K963575

CAP

- body (Detented)

1шт.

26

K962074

PLUG

- cap (Detented)

1шт.

27

K261630

CAP

- body (With float)

1шт.

28

H226639

PLUG

- air vent (With float)

1шт.

29

K962083

GASKET KIT

KIT - seal (Detented or with float)

1шт.

29

K965741

GASKET KIT

KIT - seal (Spring centered)

1шт.

30

K965746

BUSHING

- body (Spring centered)

1шт.

31

K965745

PLUG

SPACER - bolt (Spring centered)

1шт.

32

K965744

WASHER

- spring (Spring centered)

1шт.

33

K965743

SCREW

BOLT - special (Spring centered)

1шт.

34

K965742

CAP

- body (Spring centered)

1шт.

35

K262018

VALVE

PLUG - double to single acting (Spring centered)

1шт.

36

K261652

PLUG

- end cap (Spring centered)

1шт.

37

K948415

PLUG

- 3/4 inch UNF

2шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

39

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

Выбрано товаров: 46
