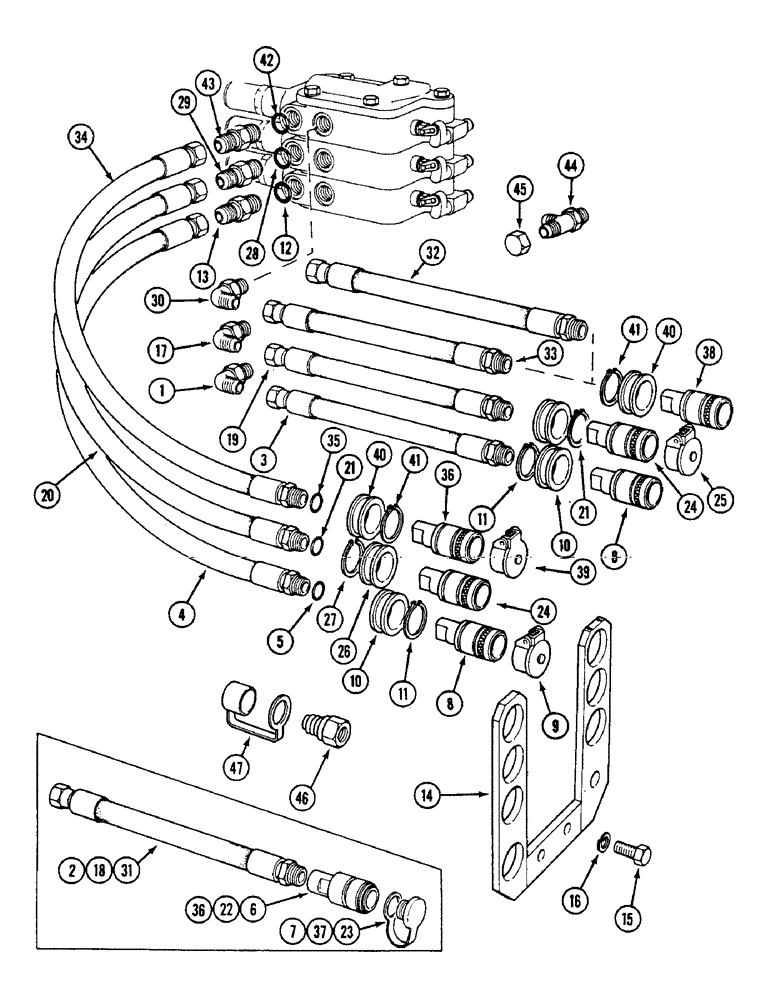

Запчасти Case IH 1594 (8-312) - REMOTE VALVE HOSES AND COUPLINGS (08) - HYDRAULICS

REF

INSTRUCTION

HOSES AND COUPLINGS - first valve (Part of UK6617 and UK6620), Includes: Ref. 2 - 7

1шт.

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

2

K202605

HOSE

- flexible, 3/4 - 7/8 UNF x 15 inch (Prior to P.I.N. 11527242)

1шт.

3

K311859

HOSE

- flexible, 3/4 - 7/8 UNF x 15-1/2 inch (P.I.N. 11527472 and after)

1шт.

4

K207572

HOSE

- flexible, 3/4 - 7/8 UNF x 24 inch

1шт.

5

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

6

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (Prior to P.I.N. 11527242)

2шт.

7

A137135

PLUG

- dust protective

2шт.

8

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (P.I.N. 11527472 and after)

2шт.

9

K311861

CAP

- dust, coupling, Includes: Ref. 10 - 16

2шт.

10

A149221

RETAINER

- coupling, coupling

2шт.

11

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

14

K206075

BRACKET

- coupling support

1шт.

15

K603106

BOLT

- 1/2 UNC x 1-1/4 inch

2шт.

16

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

REF

INSTRUCTION

HOSES AND COUPLINGS - second valve, Includes: Ref. 17 - 23

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

18

K202605

HOSE

- flexible, 3/4 - 7/8 UNF x 15 inch (Prior to P.I.N. 11527242)

1шт.

19

K311859

HOSE

- flexible, 3/4 - 7/8 UNF x 15-1/2 inch (P.I.N. 11527472 and after)

1шт.

20

K207572

HOSE

- flexible, 3/4 - 7/8 UNF x 24 inch

1шт.

21

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

22

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (Prior to P.I.N. 11527242)

2шт.

23

A137135

PLUG

- dust protective

2шт.

24

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (P.I.N. 11527472 and after)

2шт.

25

K311861

CAP

- dust, coupling, Includes: Ref. 26 - 29

2шт.

26

A149221

RETAINER

- coupling

2шт.

27

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

29

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

REF

INSTRUCTION

HOSES AND COUPLINGS - third valve, Includes: Ref. 30 - 37

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

31

K202605

HOSE

- flexible, 3/4 - 7/8 UNF x 15 inch

1шт.

32

K202604

HOSE

- flexible, 3/4 - 7/8 UNF x 17-1/2 inch (Without cab)

1шт.

33

K311859

HOSE

- flexible, 3/4 - 7/8 UNF x 15-1/2 inch (P.I.N. 11527472 and after)

1шт.

34

K207572

HOSE

- flexible, 3/4 - 7/8 UNF x 24 inch

1шт.

35

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

36

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (Prior to P.I.N. 11527242)

2шт.

37

A137135

PLUG

- dust protective

2шт.

38

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (P.I.N. 11527472 and after)

2шт.

39

K311861

CAP

- dust, coupling, Includes: Ref. 40 - 43

2шт.

40

A149221

RETAINER

- coupling

2шт.

41

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

43

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

REF

INSTRUCTION

FORWARD TEE CONNECTION, Includes: Ref. 44 & 45

1шт.

44

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

1шт.

45

218-755

CAP,37 Degree, 3/4"-16

1шт.

46

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - implement half

1шт.

47

K200645

CAP

COVER - dust, implement half

1шт.
