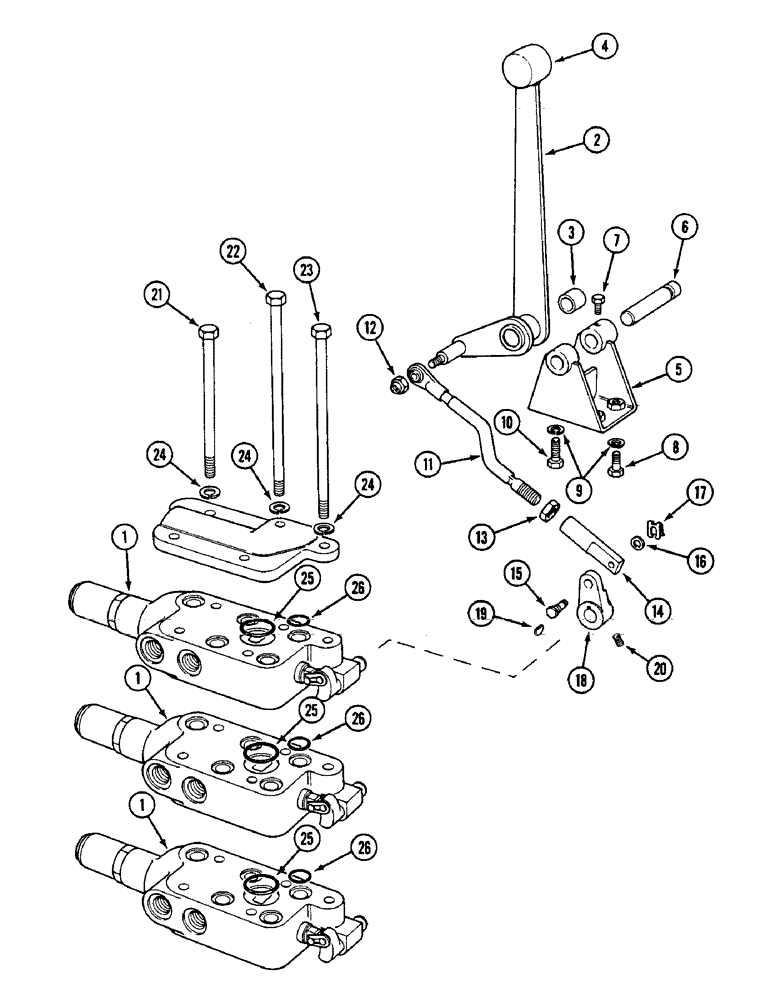

Запчасти Case IH 1594 (8-310) - THIRD REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
UK5024
VALVE
ATTACHMENT - detented
1шт.
1
UK5025
VALVE
ATTACHMENT - spring centered
1шт.
UK5753
KIT
CONTROLS, FITTINGS AND HOSE - tractors with single pump, Includes: Ref. 2 - 26
1шт.
UK5754
VALVE
CONTROLS, FITTINGS AND HOSE - tractors with tandem pump, Includes: Ref. 2 - 26
1шт.
2
K306132
LEVER
ASSEMBLY - control
1шт.
3
K655430
BUSHING
- lever
2шт.
4
K306268
KNOB
- control lever
1шт.
5
K306104
BRACKET
- control lever
1шт.
6
K306165
SHAFT
- lever
1шт.
7
K650803
BOLT,M6 - 1 x 12mm, Grade 8.8
SCREW - locating, M6
1шт.
8
614-8014
BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 14 mm
2шт.
9
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
3шт.
10
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, full threads, 8 - 1.25 x 20 mm
1шт.
11
K306720
ROD
- third valve
1шт.
12
425-114
NUT,1/4"-28, G5
1шт.
13
280136
NUT,3/8"-16, G8
1шт.
14
K204969
ROD
END - rod, single pump
1шт.
14
K204970
ROD
END - rod, second valve
1шт.
15
K306319
PIN
-, Serial Range: rod-lever
1шт.
16
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
17
K625039
CLIP
- retaining
1шт.
18
K306329
LEVER
- third valve
1шт.
19
126-9
WOODRUFF KEY,#3, 1/8" x 1/2"
(No. 404) #3, 1/8" x 1/2"
1шт.
20
28-56
BOLT,Hex, 5/16" - 24 x 3/8", Gr 8
SCREW - 5/16 x 3/8 inch
1шт.
21
413-6104
BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5
- hex, 3/8 NC x 6-1/2 inch
2шт.
22
413-6144
BOLT,Hex, 3/8" - 16 x 9", Gr 5
- hex, 3/8 NC x 9 inch (Single pump)
1шт.
22
K600469
BOLT
- 3/8 UNC x 9-1/4 inch (Tandem pump)
2шт.
23
K600466
BOLT
- 3/8 UNC x 8-1/2 inch (Single pump)
2шт.
23
15-6152
BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5
BOLT - 3/8 x 9-1/2 inch (Tandem pump)
1шт.
24
492-11038
LOCK WASHER,3/8"
5шт.
25
K623588
O-RING,2.69mm Thk x 29.97mm ID, 75 Duro
- 1-3/16 inch (30 mm) ID
1шт.
26
238-6115
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
5шт.
REF
INSTRUCTION
HOSES AND COUPLINGS, See Figure 8-312
1шт.
Выбрано товаров: 33
