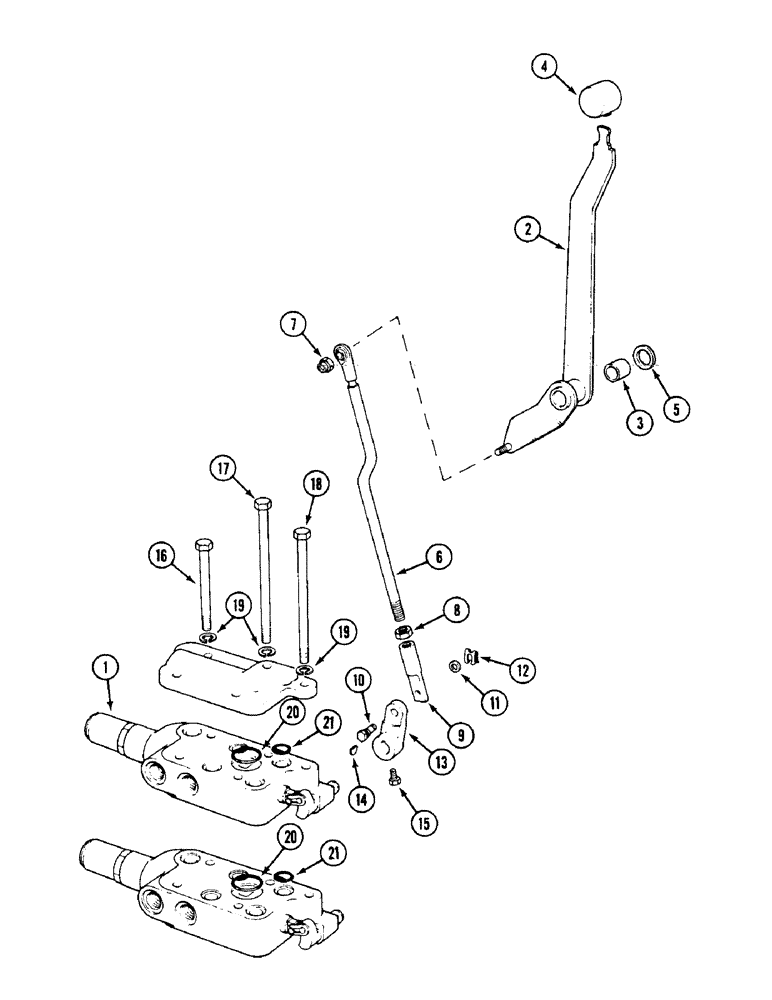

Запчасти Case IH 1594 (8-308) - SECOND REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS

1

UK5024

VALVE

ATTACHMENT - detented, detented, See Figure 8-314

1шт.

1

UK5025

VALVE

ATTACHMENT - spring centered, See Figure 8-314

1шт.

UK6621

KIT

CONTROLS, FITTINGS AND HOSE - tractors with single pump, Includes: Ref. 2 - 21

1шт.

UK6622

KIT

CONTROLS, FITTINGS AND HOSE - tractors with tandem pump, Includes: Ref. 2 - 21

1шт.

2

K306218

LEVER ASSEMBLY - control

1шт.

3

K655430

BUSHING

- control lever

2шт.

4

K306268

KNOB

- lever

1шт.

5

K655810

BUSHING

SPACER - lever

1шт.

6

K306719

ROD

- second valve

1шт.

7

425-114

NUT,1/4"-28, G5

1шт.

8

280136

NUT,3/8"-16, G8

1шт.

9

K204969

ROD

END - rod, single pump

1шт.

9

K204970

ROD

END - rod, second valve

1шт.

10

K306319

PIN

-, Serial Range: rod-lever

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

K625039

CLIP

- retaining

1шт.

13

K306328

LEVER

- second valve

1шт.

14

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

15

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

- 5/16 UNF x 3/8 inch

1шт.

16

413-676

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

- hex, 3/8 NC x 4-3/4 inch

2шт.

17

413-6116

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

- 3/8 UNC x 7-1/4 inch (Single pump)

1шт.

17

413-6116

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

- 3/8 UNC x 7-1/4 inch (Tandem pump)

2шт.

18

K600519

BOLT

- 3/8 UNC x 6-3/4 inch (Single pump)

2шт.

18

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

- 3/8 UNC x 7-3/4 inch

1шт.

19

492-11038

LOCK WASHER,3/8"

5шт.

20

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

21

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-312

1шт.

UK6794

KIT

VALVE - Second remote detented, tandem pump (North America only). Consists of valve assembly, controls, fittings, hose attachments. Does not include UK5811 forward tube connection on Figure 8-312

1шт.
