Запчасти Case IH 1594 (8-306) - FIRST REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS

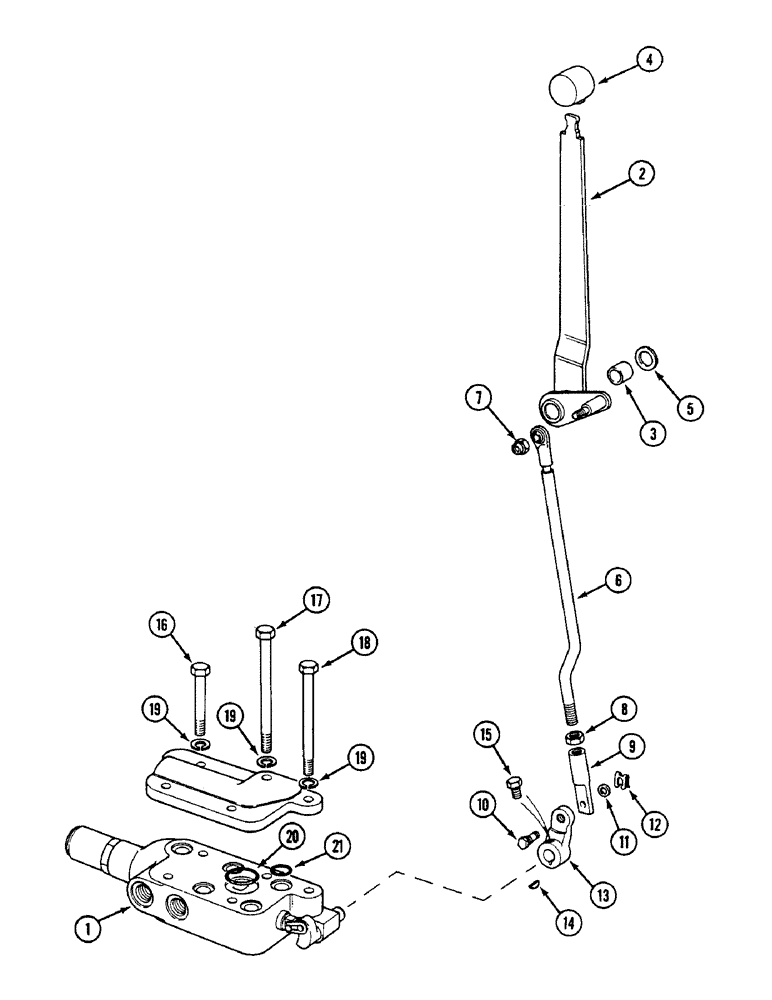

Схема запчастей Case IH 1594 - (8-306) - FIRST REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS
16
19
19
3
19
5
12
21
20
2
11
10
6
14
1
4
17
8
13
7
15
9
18

Артикул

Название

Примечание

Количество

1

UK5024

VALVE

ATTACHMENT - detented

1шт.

1

UK5025

VALVE

ATTACHMENT - spring detented

1шт.

1

K204014

VALVE

ASSEMBLY - detented with float

1шт.

UK6620

KIT

CONTROLS, FITTINGS AND HOSE - tractors with single pump, Includes: Ref. 2 - 21

1шт.

UK5750

UNIT

CONTROLS, FITTINGS AND HOSE - tractors with tandem pump, Includes: Ref. 2 - 21

1шт.

2

K306122

LEVER

ASSEMBLY - first valve

1шт.

3

K655430

BUSHING

- lever

2шт.

4

K306268

KNOB

- control lever

1шт.

5

K655810

BUSHING

SPACER - shaft

1шт.

6

K306718

ROD

- first valve

1шт.

7

425-114

NUT,1/4"-28, G5

1шт.

8

280136

NUT,3/8"-16, G8

1шт.

9

K204969

ROD

END - rod, single pump

1шт.

9

K204970

ROD

END - rod, second valve

1шт.

10

K306319

PIN

-, Serial Range: rod-lever

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

K625039

CLIP

- retaining

2шт.

13

K306327

LEVER

- first valve

1шт.

14

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

15

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW - 5/16 x 3/8 inch

1шт.

16

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

17

K600517

BOLT

- 3/8 UNC x 5-1/4 inch (Single pump)

1шт.

17

K600513

BOLT

- 3/8 UNC x 6 inch (Tandem pump)

1шт.

18

413-676

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

- hex, 3/8 NC x 4-3/4 inch (Single pump)

2шт.

18

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch (Tandem pump)

2шт.

19

492-11038

LOCK WASHER,3/8"

5шт.

20

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

21

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-312

1шт.

Выбрано товаров: 29
