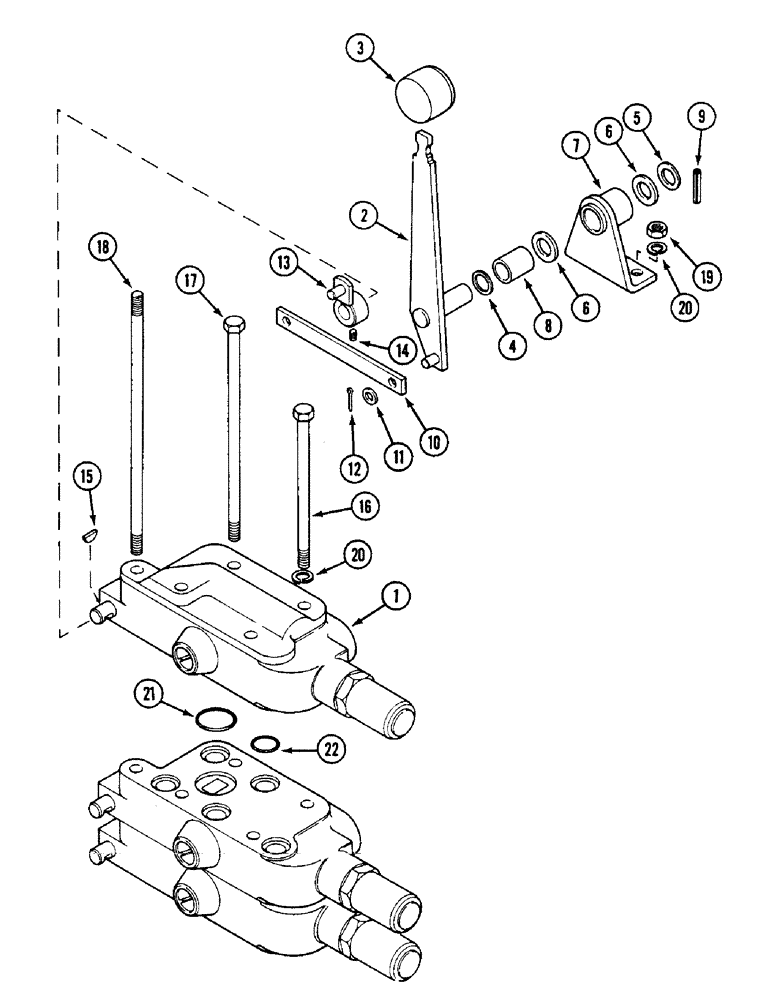

Запчасти Case IH 1594 (8-304) - THIRD REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

1

UK5024

VALVE

ATTACHMENT - detented

1шт.

1

UK5025

VALVE

ATTACHMENT - spring centered

1шт.

UK5824

VALVE

CONTROLS, FITTINGS AND HOSE - tractors with single pump, Includes: Ref. 2 - 22

1шт.

UK5825

VALVE

CONTROLS, FITTINGS AND HOSE - tractors with tandem pump, Includes: Ref. 2 - 22

1шт.

2

K306224

LEVER

- hand

1шт.

3

K306268

KNOB

- control lever

1шт.

4

K628130

SEAL

RING - sealing

2шт.

5

K651781

WASHER

- 16 mm, Order 895-11016

2шт.

6

K655810

BUSHING

SPACER - shaft

2шт.

7

K306625

BRACKET

- support, hand lever

1шт.

8

K621377

BUSHING

- lever pivot

1шт.

9

K657405

PIN

- roll

1шт.

10

K306216

ARM

LINK - valve

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

12

K950865

CLIP

- retaining

2шт.

13

K306199

LEVER

- valve

1шт.

14

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW - 5/16 x 3/8 inch

1шт.

15

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

16

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex, 3/8 NC x 6-1/2 inch

2шт.

17

K600466

BOLT

- 3/8 UNC x 8-1/2 inch (Single pump)

1шт.

17

K600469

BOLT

- 3/8 UNC x 9-1/4 inch (Tandem pump)

1шт.

18

K608260

STUD

- 3/8 UNC x 10-1/2 inch

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

492-11038

LOCK WASHER,3/8"

5шт.

21

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

22

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-312

1шт.
