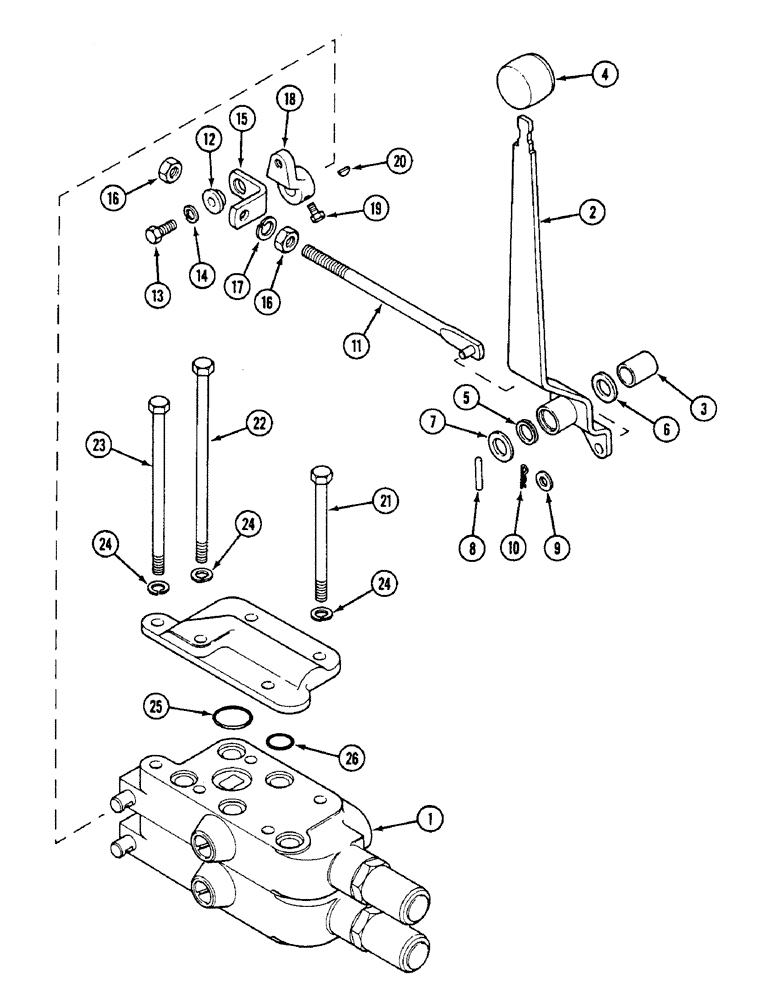

Запчасти Case IH 1594 (8-302) - SECOND REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
UK5024
VALVE
ATTACHMENT - detented
1шт.
1
UK5025
VALVE
ATTACHMENT - spring centered, See Figure 8-314
1шт.
UK6618
KIT
CONTROLS, FITTINGS AND HOSE - tractors with single pump, Includes: Ref. 2 - 26
1шт.
UK6619
KIT
CONTROLS, FITTINGS AND HOSE - tractors with tandem pump, Includes: Ref. 2 - 26
1шт.
2
K306626
LEVER
- hand, second valve, Includes: Ref. 3
1шт.
3
K621377
BUSHING
- lever pivot
1шт.
4
K306268
KNOB
- control lever
1шт.
5
K628130
SEAL
RING - sealing
2шт.
6
K651781
WASHER
- 16 mm, Order 895-11016
1шт.
7
K655810
BUSHING
SPACER - shaft
2шт.
8
38-11420
LOCK PIN,7/32" x 1 1/4", Slotted
PIN - roll 5 x 30 mm
1шт.
9
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
1шт.
10
K950865
CLIP
- retaining
1шт.
11
K307805
ARM
LINK - second valve
1шт.
12
K307809
BUSHING
- link
1шт.
13
114-102
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
2шт.
14
K19481
SPRING WASHER
WASHER - lock, 5/16 inch, Order 492-11031
1шт.
15
K307808
BRACKET
- link
1шт.
16
825-1410
NUT,M10, Cl 8
2шт.
17
892-11010
LOCK WASHER,M10
1шт.
18
K306198
BUCKLE
LEVER - second valve
1шт.
19
28-56
BOLT,Hex, 5/16" - 24 x 3/8", Gr 8
SCREW - 5/16 x 3/8 inch
1шт.
20
126-9
WOODRUFF KEY,#3, 1/8" x 1/2"
(No. 404) #3, 1/8" x 1/2"
1шт.
21
413-676
BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5
- hex, 3/8 NC x 4-3/4 inch
2шт.
22
413-6116
BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5
- 3/8 x 7-1/4 inch (Single pump)
1шт.
22
413-6116
BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5
- 3/8 x 7-1/4 inch (Tandem pump)
2шт.
23
K600519
BOLT
- 3/8 UNC x 6-3/4 inch (Single pump)
2шт.
23
113-2253
BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5
- 3/8 7-3/4 inch (Tandem pump)
1шт.
24
492-11038
LOCK WASHER,3/8"
5шт.
25
K623588
O-RING,2.69mm Thk x 29.97mm ID, 75 Duro
- 1-3/16 inch (30 mm) ID
2шт.
26
238-6115
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
10шт.
REF
INSTRUCTION
HOSES AND COUPLINGS, See Figure 8-312
1шт.
Выбрано товаров: 32
